Shallow Mounted Rising Bollard KT‑DX21
Technical Parameters

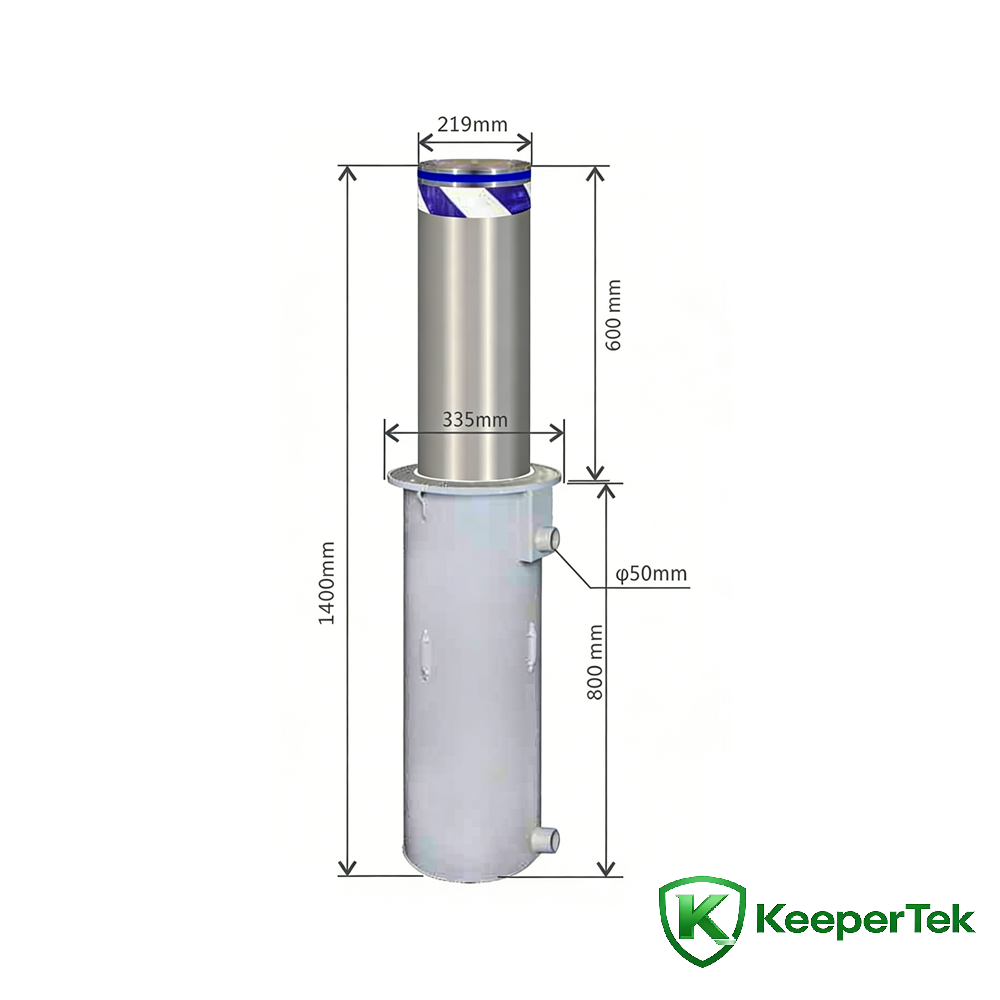

Column Diameter: 219 mm
Column Height: 600 mm
Column Thickness: 6 mm
Column Material: 304 Stainless Steel
Lifting Speed: 2S~4S
Embedded Tank Specification: 335 mm × 335 mm × 800 mm
Waterproof Rating: IP68
Operating Temperature: -35℃ ~ 75℃
Flange Specification: Flange Diameter 335 mm × Thickness 6 mm
Power Voltage: 220V
Power: 300W
Warning Indicator: Ultra-bright Reflective Film, LED Light
Emergency Function: Equipped with EPS Emergency Power Supply & One-key Lowering
Control Mode: Control Box / Wireless Remote Control
Expansion Function: License Plate Recognition / Fire Alarm / Access Control System Linkage
Guide Pillars: 3 pcs
Features
Works normally after being run over by 100-ton vehicles.
IP68 waterproof, can operate normally even when submerged in water.
Sturdy and durable structure; cable outlet and drain outlet made of 4mm thick carbon steel, outer barrel with 4 welding strips.
Equipped with 5cm high-brightness reflective film with reflectivity over 90%.
Optional high-brightness LED warning light strip for effective night warning.
Panel flange with anti-slip design; flange thickness optional: 10mm / 6mm.
Top flange thickness: 10mm / 6mm. Non-standard customization is available for diameter, thickness, height, appearance, speed, etc.
Can be linked with license plate recognition, boom barrier, access control, infrared, radar, loop detector, traffic light & tidal lane, fire alarm system, etc.
Supports cloud platform management and mobile APP remote control for lifting and lowering.
Configuration Options
Height: 400mm, 800mm, 1000mm, 1200mm, 1500mm
Thickness: 8mm, 10mm, 12mm, 16mm, 20mm
Diameter: 168mm, 273mm, 325mm, others
