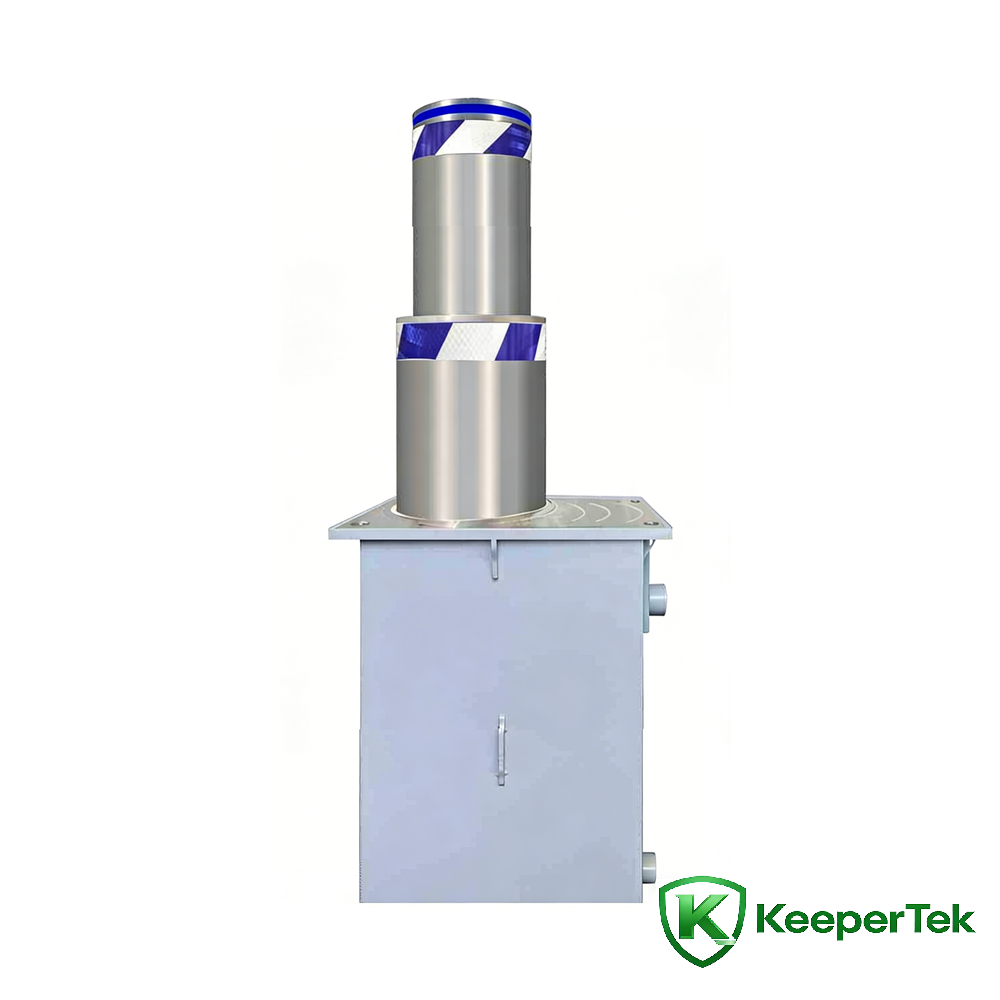

Two‑Stage Shallow Mount Rising Bollard KT‑DX05
Technical Parameters

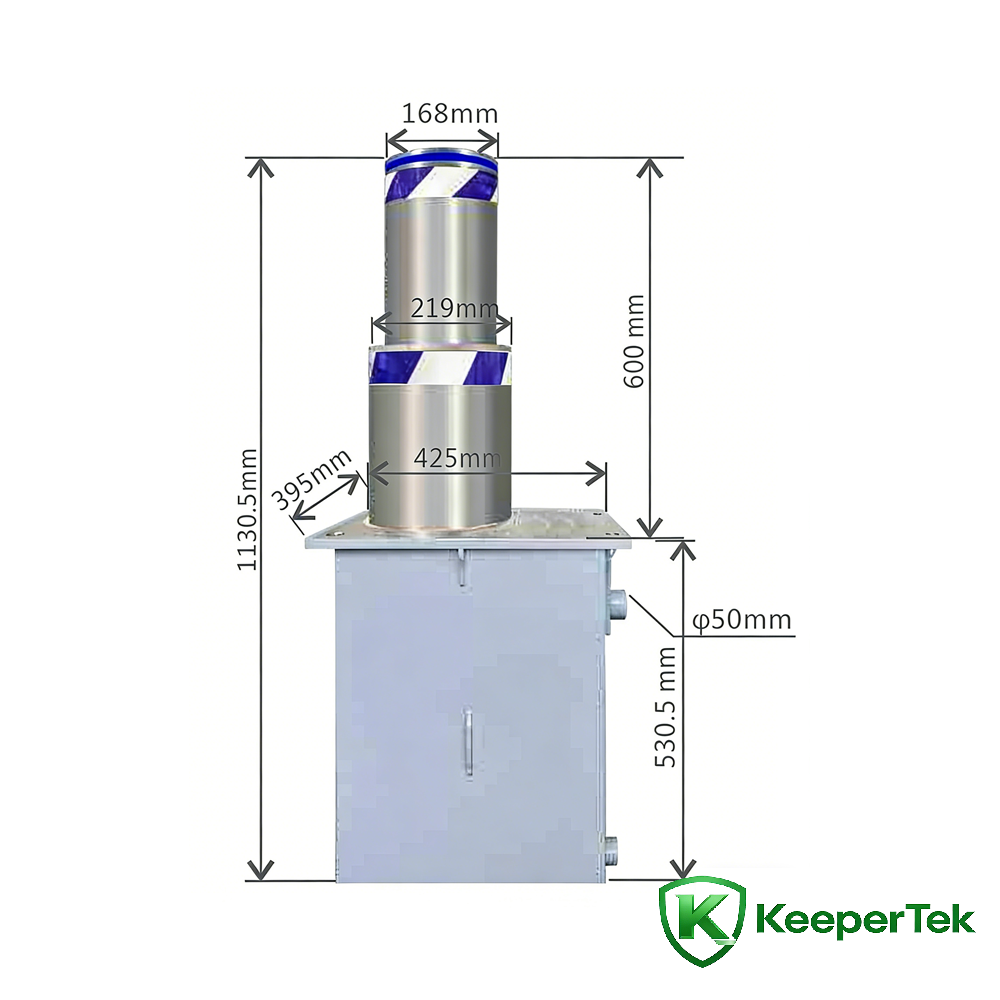

Column Diameter: 219 mm + 168 mm
Column Height: 300 mm + 300 mm
Column Thickness: 6 mm
Column Material: 304 Stainless Steel
Lifting Speed: 2S~4S
Embedded Tank Specification: 425 mm × 395 mm × 530.5 mm
Waterproof Rating: IP68
Operating Temperature: -35℃ ~ 75℃
Flange Specification: 425 mm × 395 mm × 8 mm
Power Voltage: 220V
Power: 350W
Warning Indicator: Ultra-bright Reflective Film, LED Light
Emergency Function: Equipped with EPS Emergency Power Supply & One-key Lowering
Control Mode: Control Box / Wireless Remote Control
Expansion Function: License Plate Recognition / Fire Alarm / Access Control System Linkage
Guide Pillars: 4 pcs
Features
Remains fully functional after impact by an 8‑ton vehicle.
Remains fully functional after being run over by a 100‑ton vehicle.
Waterproof rating IP68; operates normally even when submerged underwater.
Sturdy and durable structure, high load capacity, stable movement, low noise.
MCU-controlled system for stable and reliable performance, easy integration.
Can be interlocked with license plate recognition, boom barrier, access control, infrared, radar, loop detector, traffic light & tidal lane, fire alarm system, etc.
In case of power failure or malfunction, the bollard can be manually lowered to ground level via control box buttons.
Equipped with 5 cm wide reflective film with reflectivity over 90%.
Standard high‑brightness LED warning light strip for enhanced nighttime visibility; the control box supports programmable lighting timer.
Adopts advanced international hydraulic drive technology for high safety and stability.
Wireless remote control: operates up to approximately 30 meters from the controller (depending on on-site radio environment).
Panel flange with anti‑slip design; flange thickness optional: 10 mm / 6 mm.
Top flange thickness: 10 mm / 6 mm.
Non‑standard customization available for overall diameter, thickness, height, appearance, lifting speed, etc.
Configuration Options
Height: 400 mm, 800 mm, 1000 mm, 1200 mm, 1500 mm
Thickness: 8 mm, 10 mm, 12 mm, 16 mm, 20 mm
Diameter: 168+219 mm, 219+273 mm, 273+325 mm, others
