Square Flange Rising Bollard KT‑DX04
Technical Parameters

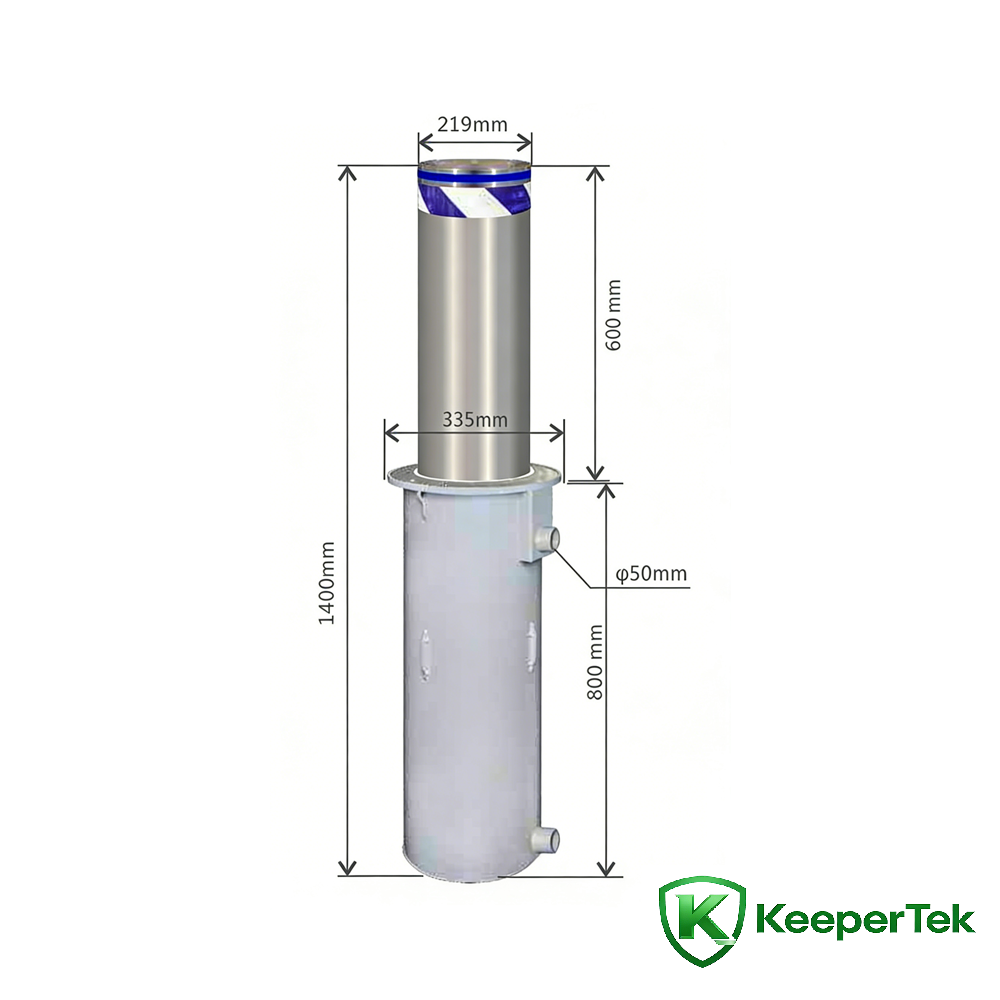

Column Diameter: 219 mm
Column Height: 600 mm
Column Thickness: 6 mm
Column Material: 304 Stainless Steel
Lifting Speed: 2S~4S
Embedded Tank Specification: 335 mm × 335 mm × 800 mm
Waterproof Rating: IP68
Operating Temperature: -35℃ ~ 75℃
Flange Specification: 335 mm × 335 mm × 6 mm
Power Voltage: 220V
Power: 300W
Warning Indicator: Ultra-bright Reflective Film, LED Light
Emergency Function: Equipped with EPS Emergency Power Supply & One-key Lowering
Control Mode: Control Box / Wireless Remote Control
Expansion Function: License Plate Recognition / Fire Alarm / Access Control System Linkage
Guide Pillars: 3 pcs
Features
Remains fully functional after being run over by a 100-ton vehicle.
Waterproof rating IP68; operates normally even when submerged underwater.
Sturdy and durable structure; cable outlet and drain outlet made of 4 mm thick carbon steel, outer barrel with 4 welded strips.
Equipped with 5 cm high-intensity reflective film with reflectivity over 90%.
Optional high-brightness LED warning light strip for effective nighttime warning.
Panel flange with anti-slip design; flange thickness optional: 10 mm / 6 mm.
Top flange thickness: 10 mm / 6 mm. Non-standard customization available for diameter, thickness, height, appearance, lifting speed, etc.

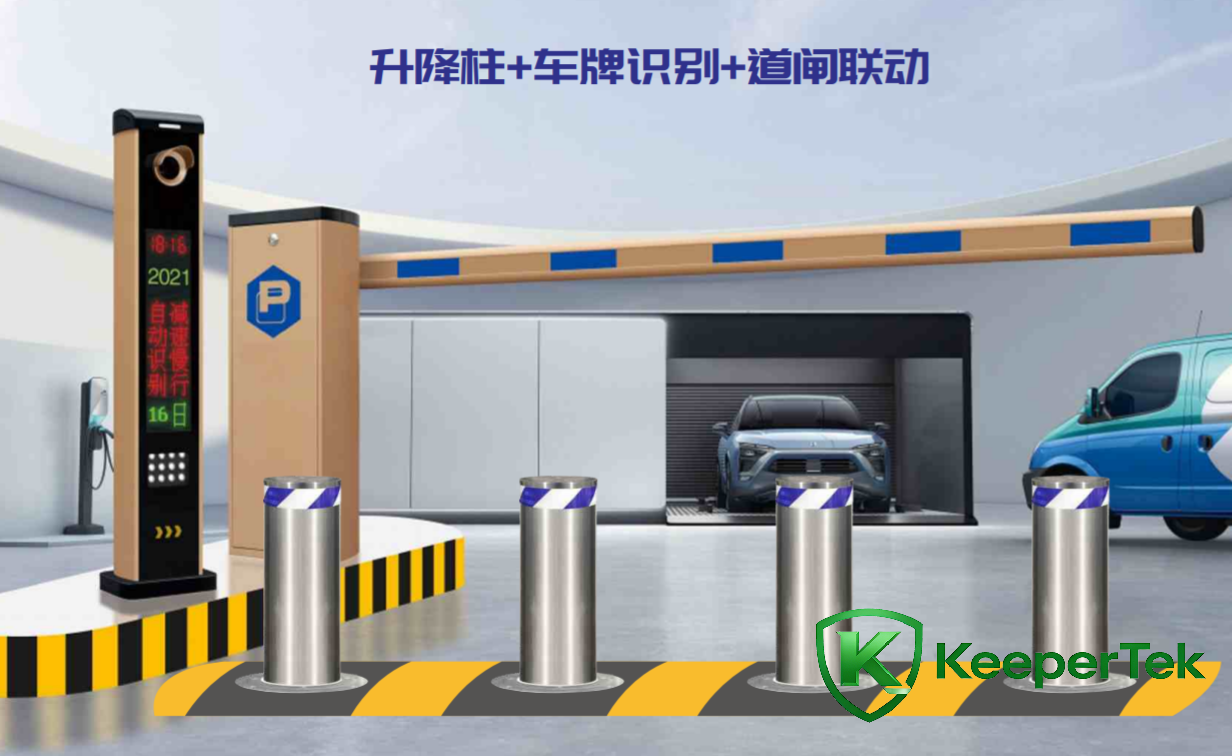

Can be interlocked with license plate recognition, boom barrier, access control, infrared, radar, loop detector, traffic light & tidal lane, fire alarm system, etc.
Supports cloud platform management and mobile APP remote control for lifting and lowering.
Configuration Options
Height: 400 mm, 800 mm, 1000 mm, 1200 mm, 1500 mm
Thickness: 8 mm, 10 mm, 12 mm, 16 mm, 20 mm
Diameter: 168 mm, 273 mm, 325 mm, others
