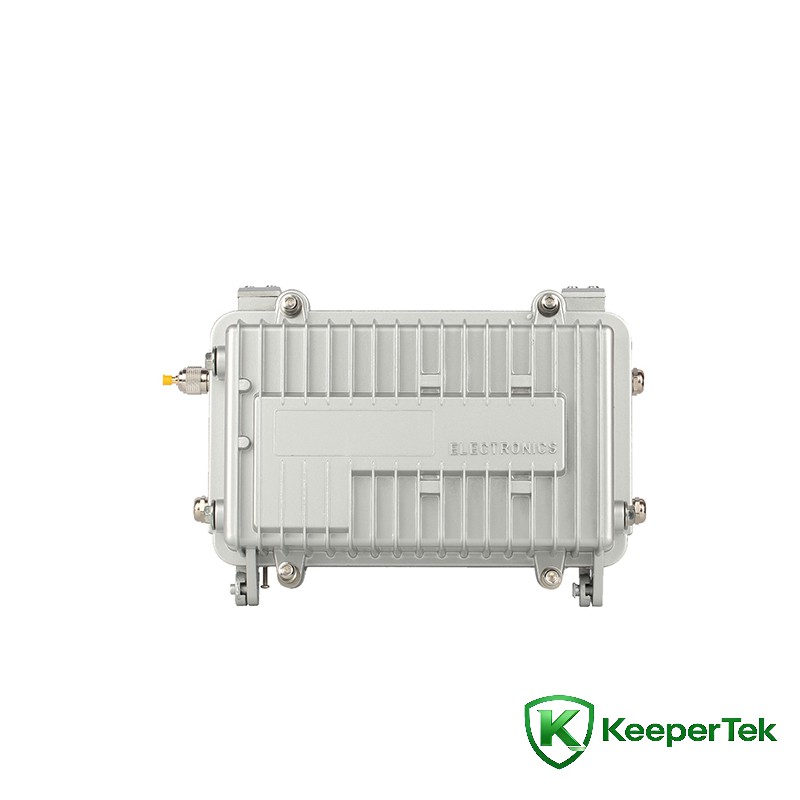

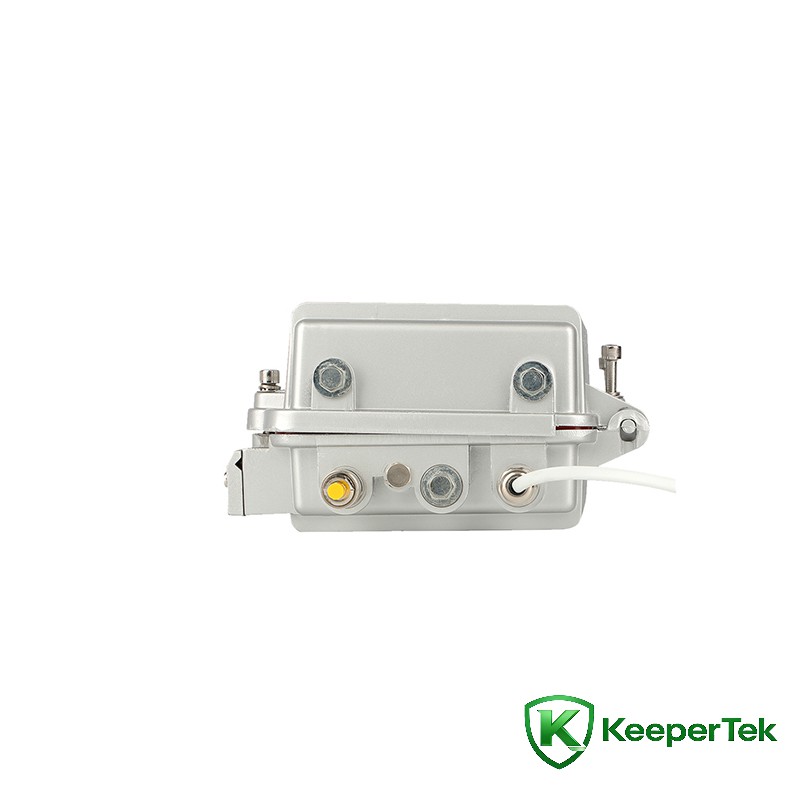

Outdoor Zone Controller KT-WB18
Technical Parameters
Housing Material: Galvanized steel
Communication: 1-channel RF470MHz, 1-channel CAN, 1-channel RS485
Operating Voltage: AC 110～240V
Operating Temperature: -30℃ ~ +75℃
Ambient Humidity: ≤90%RH (non-condensing)
Power Consumption: ≤2W
Communication Distance: CAN: ≤1000m

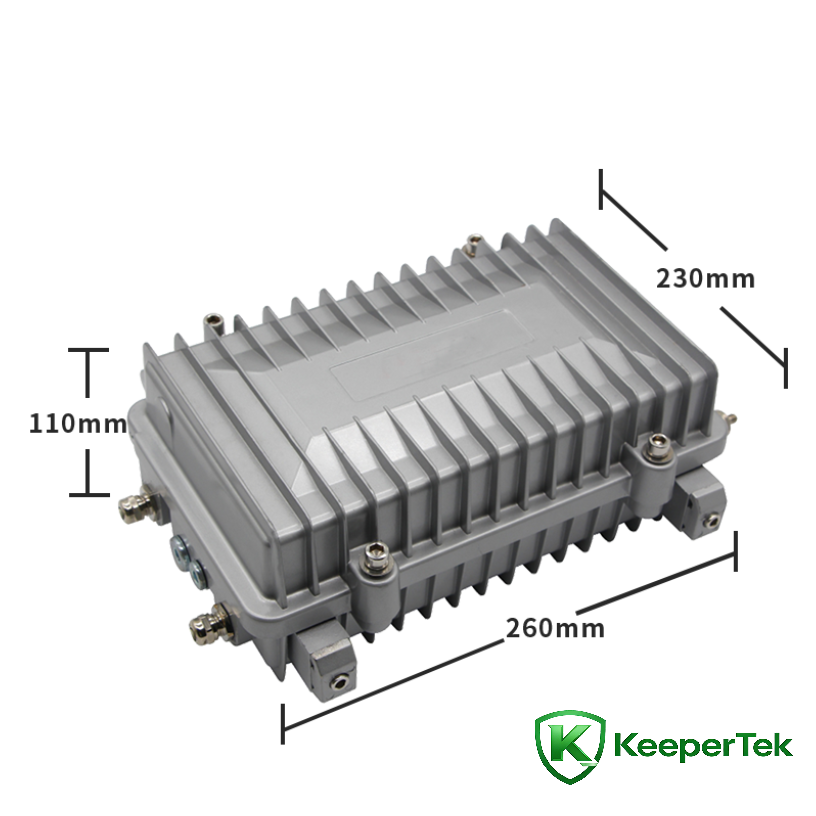

Dimensions: 260*230*110mm
Applicable System: Outdoor Parking Guidance System
Features
The outdoor zone controller is used to connect the central controller with dual-mode geomagnetic parking detectors, guidance screens and other devices. It collects real‑time status information of all geomagnetic parking detectors in its area via RF470MHz wireless communication and uploads all parking space status to the outdoor central controller. The outdoor zone controller has an IP66 protection rating, effectively adapting to harsh outdoor parking environments.
Adopts local power supply and wireless communication with detectors, reducing construction wiring and later maintenance costs.
Adopts an internationally advanced 32-bit ARM processor with full industrial‑grade design to ensure stable and reliable performance.
Waterproof and dustproof design with IP66 protection rating, suitable for harsh outdoor environments.
Multi‑level routing with the outdoor central controller, providing strong system networking capability.
Customizable communication methods.
