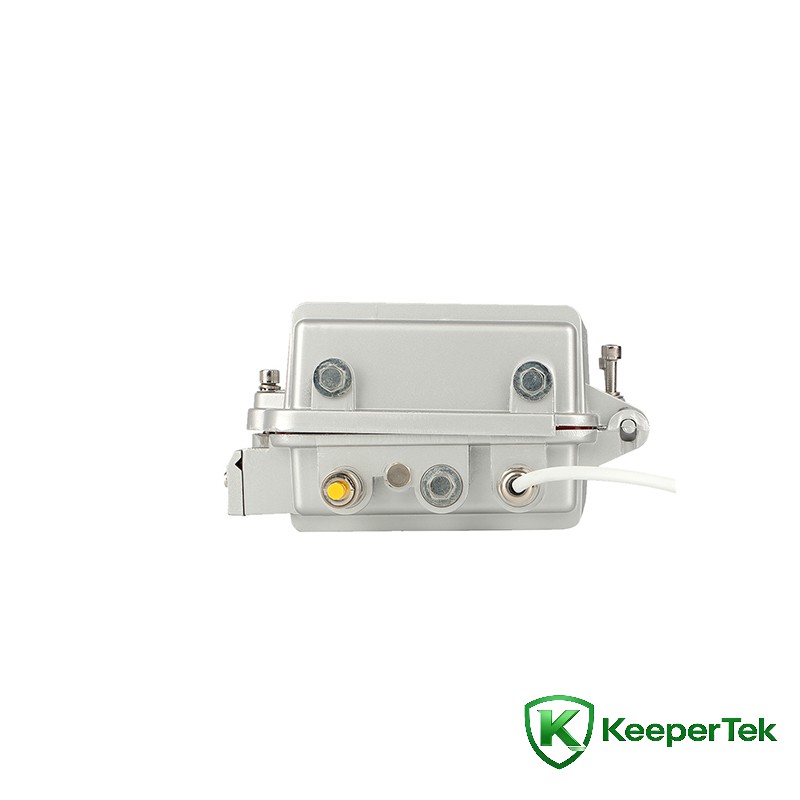

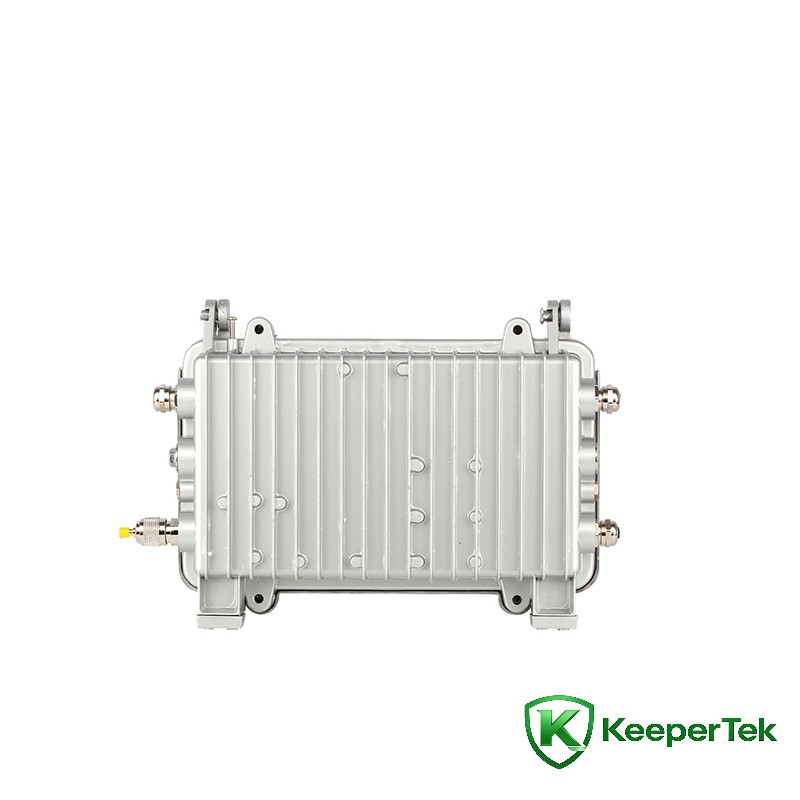

Outdoor Node Controller KT-WB17
Technical Parameters
Housing Material: Galvanized steel
Communication: 2-channel CAN@20Kbps
Operating Voltage: AC 110～240V
Operating Temperature: -30℃ ~ +75℃
Ambient Humidity: ≤90%RH (non-condensing)
Power Consumption: ≤2W
Communication Distance: CAN: ≤1000m

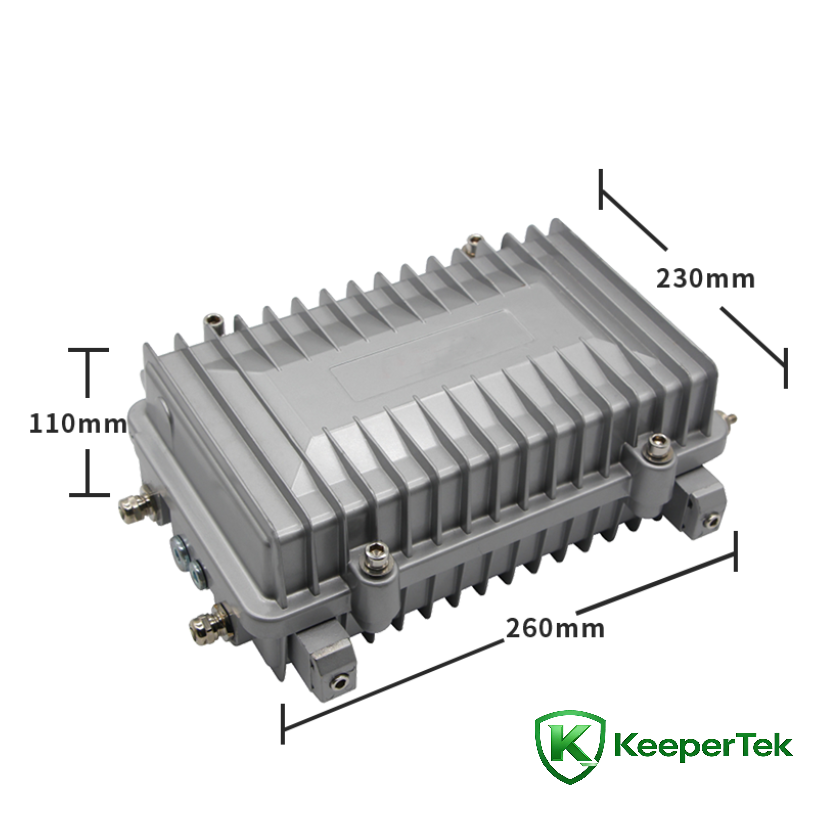

Dimensions: 260*230*110mm
Applicable System: Outdoor Parking Guidance System
Features
The outdoor node controller collects all parking space information in the area, encodes and uploads the data to the central controller, and at the same time receives available parking space information data from the central controller and forwards it to the outdoor zone controller. When used in large-scale networking, the outdoor node controller can effectively solve the problem of insufficient capacity of outdoor controller equipment; and when used in parking lots with complex building structures, it can effectively ensure the stability of system communication.
Zone information is not affected by the physical location of detectors and displays, and any detector and display under it can be associated.
Integral industrial-grade design, passed strict ESD, lightning surge and group pulse tests to effectively ensure reliable equipment operation.
Adopts industrial-grade CAN bus communication design, ensuring stable and reliable signal communication with a transmission distance of up to 1000 meters.
Adopts an internationally advanced 32-bit ARM processor with a full industrial-grade design to ensure stable and reliable product performance.
After the association information is downloaded, it automatically saves the association information and can run independently and correctly without a computer.
Equipped with short-circuit, over-voltage and overload protection functions to prevent electrical damage to related equipment caused by incorrect wiring during construction.
Supports regional grouping management, realizing optimized network communication management, data conversion, grouped data processing and other functions.
