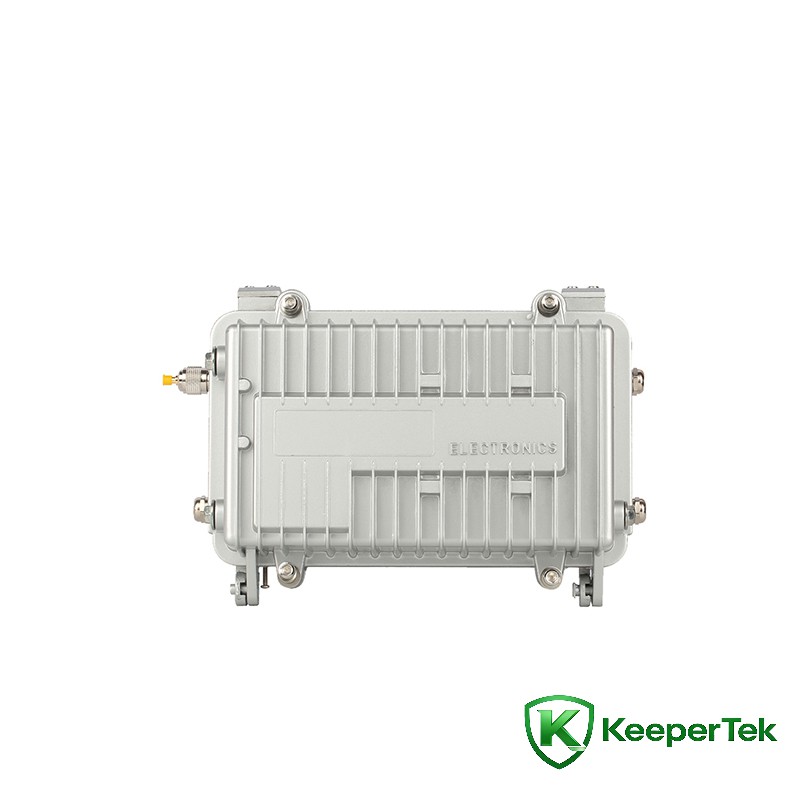

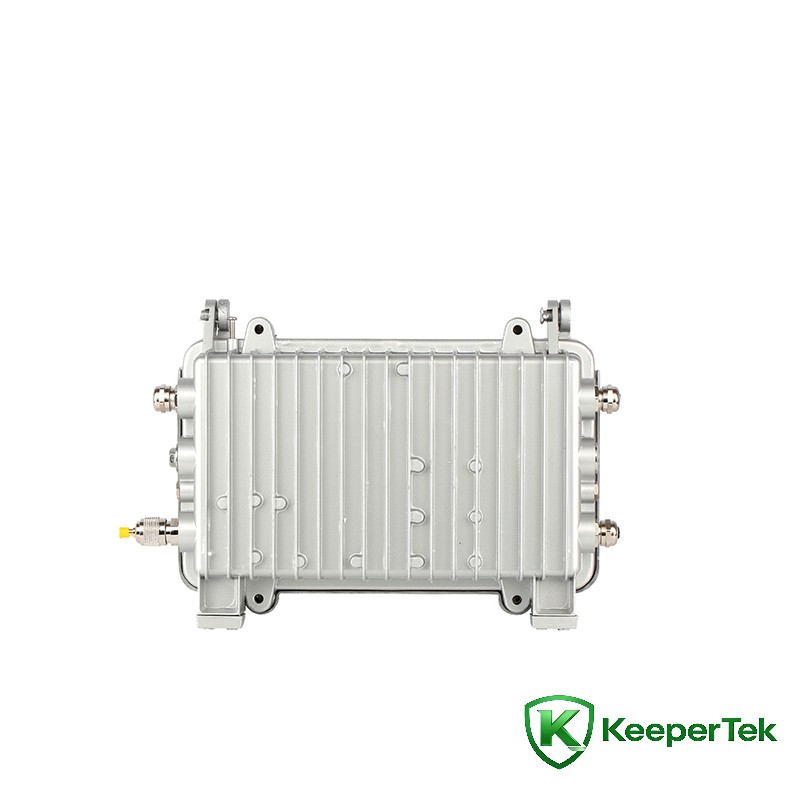

Outdoor Central Controller KT-WB19
Technical Parameters
Housing Material: Galvanized steel
Communication: Ethernet / CAN
Operating Voltage: AC 110～240V
Operating Temperature: -30℃ ~ +75℃
Ambient Humidity: ≤90%RH (non-condensing)
Power Consumption: ≤2W
Communication Distance: CAN: ≤1000m

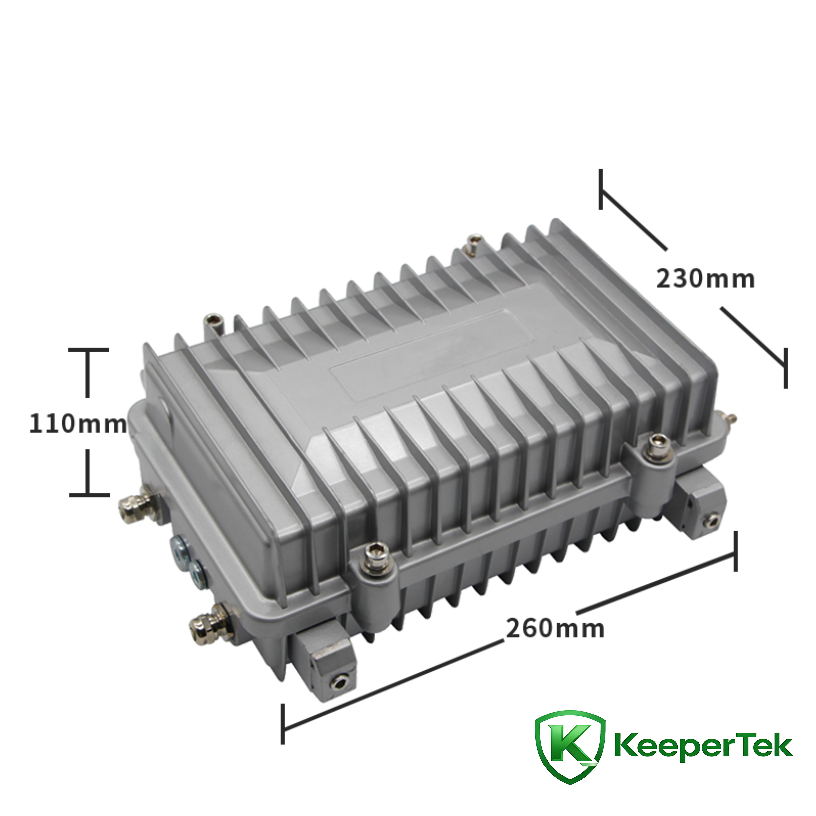

Dimensions: 260*230*110mm
Applicable System: Outdoor Parking Guidance System
Features
The outdoor central controller is the core of the data collection and control center of the entire intelligent parking guidance system. It realizes vehicle guidance by updating real-time data on parking guidance screens. One outdoor wired central controller can manage up to 30,000 parking spaces.
Adopts an internationally advanced 32-bit ARM processor with full industrial-grade design to ensure stable and reliable performance.
All system controllers support remote upgrade for convenient system maintenance and upgrades to meet user needs.
Equipped with short-circuit, over-voltage, and overload protection to prevent electrical damage to related equipment caused by incorrect wiring during construction.
Industrial-grade design, passed strict ESD, lightning surge, and group pulse tests to ensure reliable operation.
The outdoor wired central controller can manage up to 256 zones (parking spaces can be divided into 256 areas and linked to guidance screens).
Zone configuration is not affected by the physical location of detectors and displays; any detector or display can be associated freely.
Automatically saves association data after downloading and can run independently without a computer.
