Indoor Central Controller KT-WB14
Technical Parameters
Housing Material: Galvanized steel
Communication: 1-channel CAN@20Kbps, 1-channel 10/100BaseT Ethernet
Operating Voltage: AC 110～240V
Operating Temperature: -30℃ ~ +75℃
Net Weight: 4.2Kg
Ambient Humidity: ≤90%RH (non-condensing)
Power Consumption: ≤2W
Communication Distance: CAN: ≤1000m

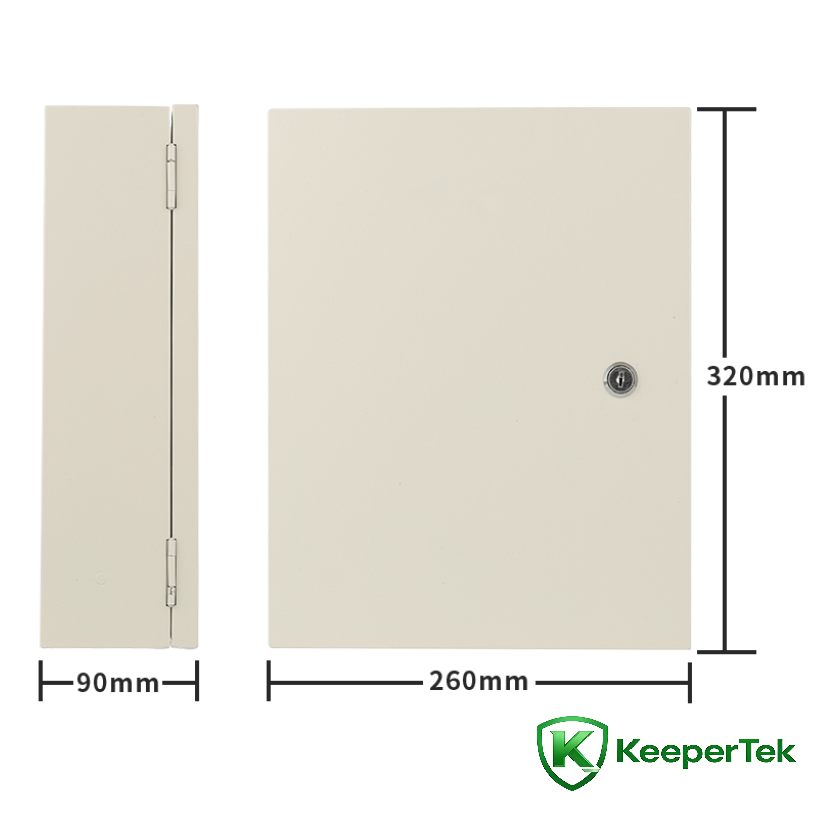

Dimensions: 320*260*90mm
Applicable System: Indoor Ultrasonic Parking Guidance System
Features
The indoor central controller is the core of the whole system, serving as the data collection and control center of the intelligent parking guidance system. It realizes vehicle guidance by updating real-time data on parking guidance screens. One indoor central controller can manage up to 30,000 parking spaces.
Adopts international advanced 32-bit ARM processor, full industrial-grade design to ensure stable and reliable performance.
Supports remote upgrade for easy system maintenance and upgrades to meet user needs.
Equipped with short-circuit, over-voltage, overload protection to prevent electrical damage caused by wrong wiring during construction.
Industrial design, passed strict ESD, lightning surge and group pulse tests for reliable operation.
Manages up to 30,000 parking spaces.
Zone configuration is independent of the physical location of detectors and displays; any detector or display can be associated freely.
Automatically saves configuration data after downloading and can run independently without a computer.Supports remote upgrade.
