Indoor Central Controller KT-WB15
Technical Parameters
Housing Material: Galvanized steel
Capacity: 5 channels, total 60 units of 3-parking-space video detectors (1 unit of 6-parking-space video detector is equivalent to 2 units of 3-parking-space video detectors)
Network Ports: 8 dedicated network ports for video detectors + 2 uplink RJ45 ports
Operating Voltage: AC 110～240V
Operating Temperature: -30℃ ~ +75℃
Net Weight: 4.2Kg
Ambient Humidity: ≤90%RH (non-condensing)
Power Consumption: ≤2W

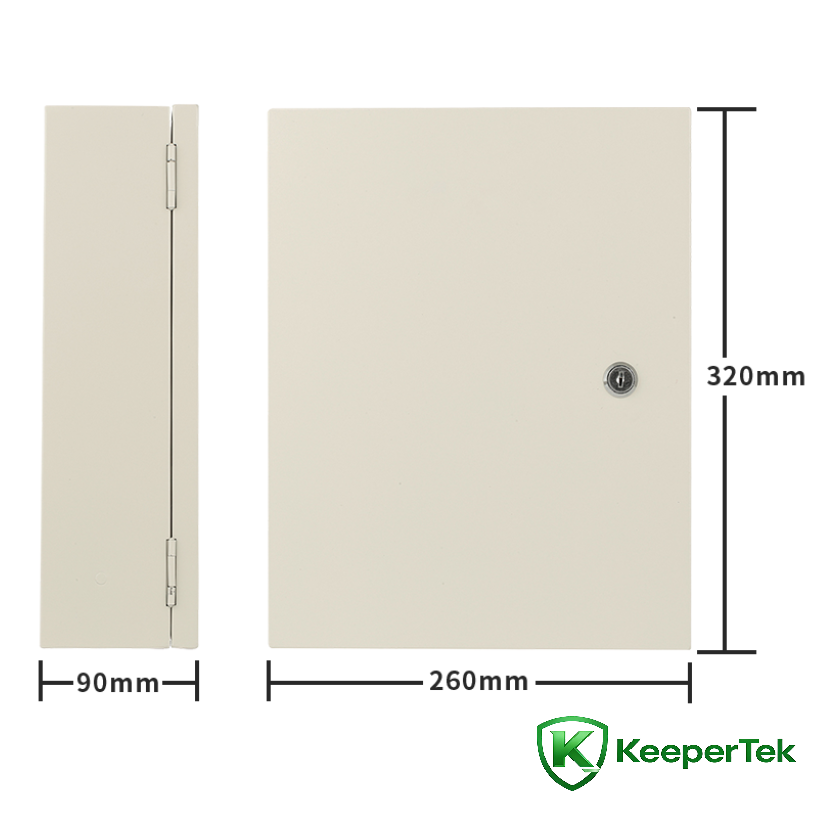

Dimensions: 320*260*90mm
Applicable System: Video Parking Guidance System
Features
The indoor video zone controller collects image information, parking space status and license plate numbers uploaded by all subordinate video detectors, and transmits relevant information to the system management platform through a network switch. Each indoor video zone controller can connect up to 60 units of 3-parking-space video detectors or 30 units of 6-parking-space video detectors.
Adopts an internationally advanced 32-bit ARM processor with a full industrial-grade design to ensure stable and reliable product performance.
Uses standard network cables for connection, greatly reducing wire costs and construction difficulty.
Integral industrial-grade design, passed strict tests to effectively ensure reliable equipment operation.
Equipped with short-circuit, reverse connection and wrong connection protection design to prevent electrical damage to related equipment caused by short circuits, reverse connections, wrong connections and other situations due to incorrect wiring during construction.
The power supply adopts an industrial-grade design, with short-circuit, overload and over-voltage protection functions.
Supports network isolation function to isolate uplink/downlink networks.
Supports remote upgrade.
