Indoor Zone Controller KT-WB13
Technical Parameters
Housing Material: Galvanized steel
Communication: 1-channel CAN, 1-channel RS485, 1-channel RF 470MHz
Operating Voltage: AC 110～240V
Operating Temperature: -30℃ ~ +75℃
Net Weight: 3.5Kg
Ambient Humidity: ≤90%RH (non-condensing)
Power Consumption: ≤2W
Communication Distance: CAN: ≤1000m, RS485: ≤300m
Node Capacity: 25 nodes

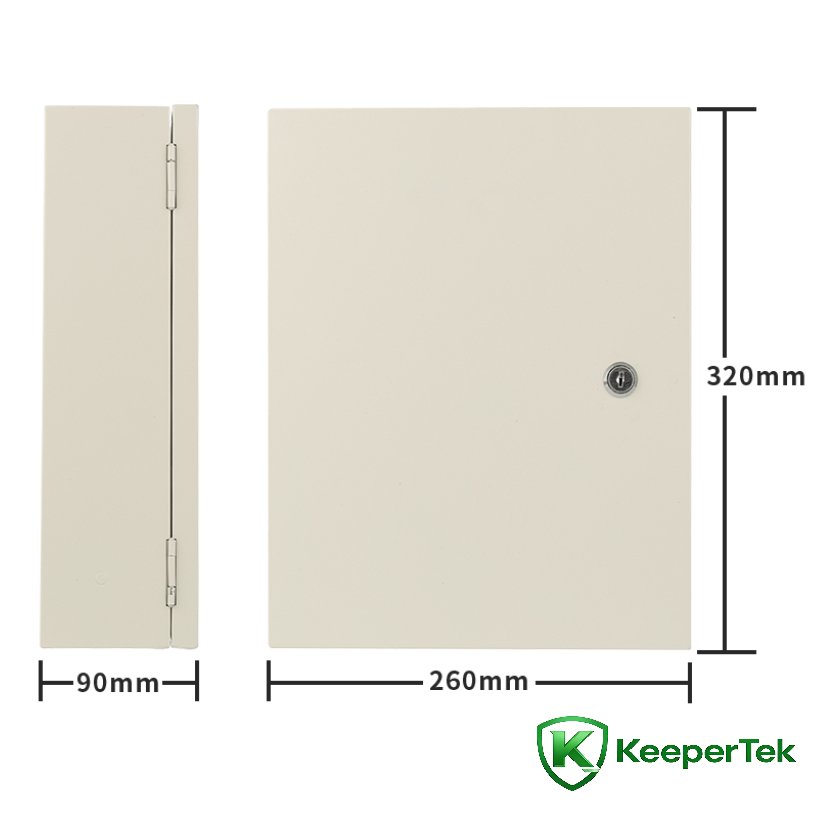

Dimensions: 320*260*90mm
Applicable System: Automated Parking Garage Guidance System
Features
The indoor wireless zone controller manages its subordinate wireless devices (wireless parking indicators, wireless parking detectors), uploads parking space status to the central controller, and is compatible with wired devices. It is ideal for mixed parking lots with both mechanical and standard parking spaces.
Adopts international advanced 32-bit ARM processor, full industrial-grade design for stable and reliable performance.
Supports remote upgrade for easy system maintenance and upgrades to meet user needs.
Multi-channel wireless networking design avoids internal interference and external crosstalk.
Equipped with short-circuit, over-voltage, overload protection to prevent electrical damage from wrong wiring.
Industrial design, passed strict ESD, lightning surge and group pulse tests for reliable operation.
Reserved industrial isolated RS485 interface integrates wired and wireless devices perfectly with high flexibility.
Supports remote upgrade.
