Indoor Zone Controller KT-WB12
Technical Parameters
Housing Material: Galvanized steel
Communication: 1-channel CAN, 2-channel RS485
Operating Voltage: AC 110～240V
Operating Temperature: -30℃ ~ +75℃
Net Weight: 3.5Kg
Ambient Humidity: ≤90%RH (non-condensing)
Power Consumption: ≤2W
Communication Distance: CAN: ≤1000m, RS485: ≤300m
Node Capacity: 25 nodes

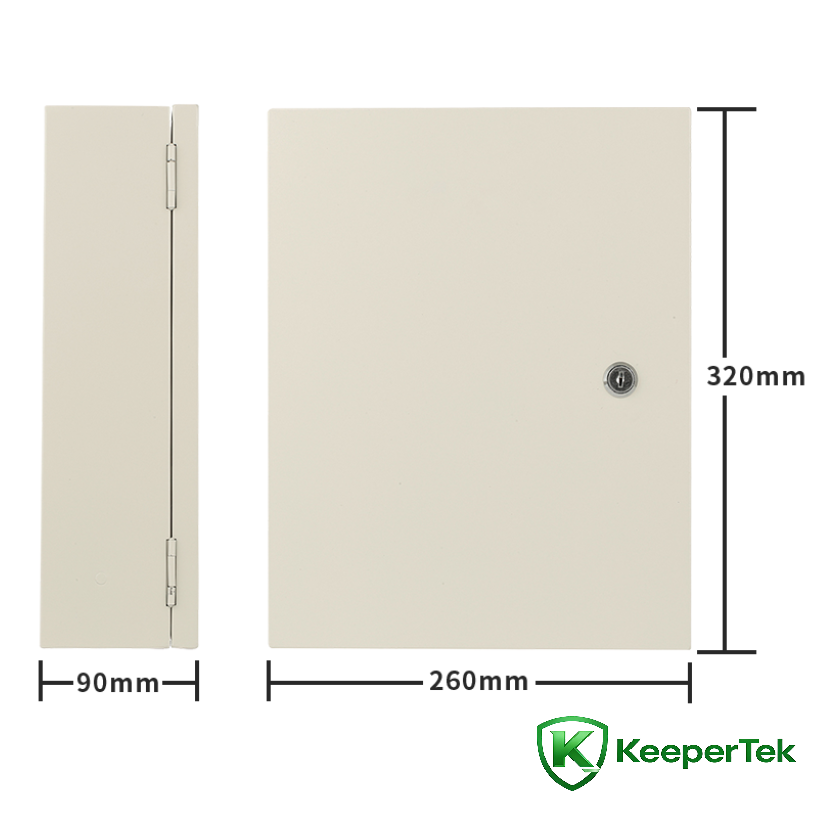

Dimensions: 320*260*90mm
Applicable System: Indoor Ultrasonic Parking Guidance System
Features
The indoor zone controller cyclically detects the status of connected detectors and uploads relevant information to the upper-level controller. It adopts a hybrid communication mechanism of RS485, CAN bus (or Ethernet) to solve problems such as unreliable long-distance communication, network node expansion, and group management.
Adopts international advanced 32-bit ARM processor, full industrial-grade design to ensure stable and reliable performance.
Supports remote upgrade for system maintenance and upgrades to meet user needs.
Uses hybrid networking of CAN (or Ethernet) and RS485, with strong networking capability, stable and reliable data communication, and long transmission distance.
Independent dual RS485 interface design, can manage 60 detectors or guidance screens.
Equipped with short-circuit, over-voltage, overload protection to prevent electrical damage caused by wrong wiring during construction.
Industrial design, passed strict ESD, lightning surge, and group pulse tests to ensure reliable operation.
Quickly and effectively detects various device statuses. After installation, one-key detection of RS485 device communication and quick diagnosis of bus connection status.
