External Indicator Light for Geomagnetic Detector KT-WB11
Technical Parameters
Housing Material: Galvanized steel
Communication: 2-channel CAN@20kbps
Operating Voltage: AC 110～240V
Operating Temperature: -30℃ ~ +75℃
Net Weight: 3.2Kg
Ambient Humidity: ≤90%RH (non-condensing)
Power Consumption: ≤2W
Communication Distance: ≤1000m
Node Capacity: 25 nodes

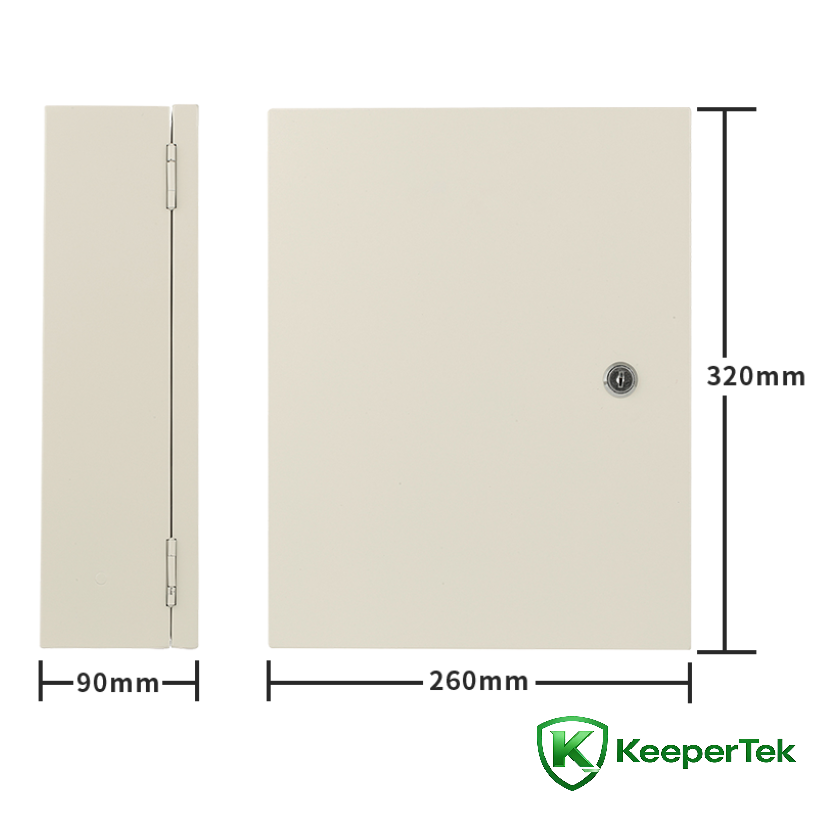

Dimensions: 320*260*90mm
Applicable System: Indoor Ultrasonic Parking Guidance System
Features
The indoor node controller collects all parking space information in the area, encodes and uploads data to the indoor central controller, and receives available parking data from the central controller to forward to local zone controllers.
In large-scale networking or complex parking lots, it effectively solves capacity shortages and ensures stable system communication.
Adopts international advanced 32-bit ARM processor with full industrial-grade design for stable and reliable performance.
Supports remote upgrade for easy system maintenance and upgrades to meet user needs.
Industrial CAN bus communication ensures stable and reliable signal transmission up to 1000 meters.
Equipped with short-circuit, over-voltage and overload protection to prevent electrical damage caused by incorrect wiring during installation.
Industrial design with strict ESD, lightning surge and group pulse tests for reliable operation.
Supports regional grouping management, data conversion and grouped data processing for optimized network communication.
Supports remote upgrade.
