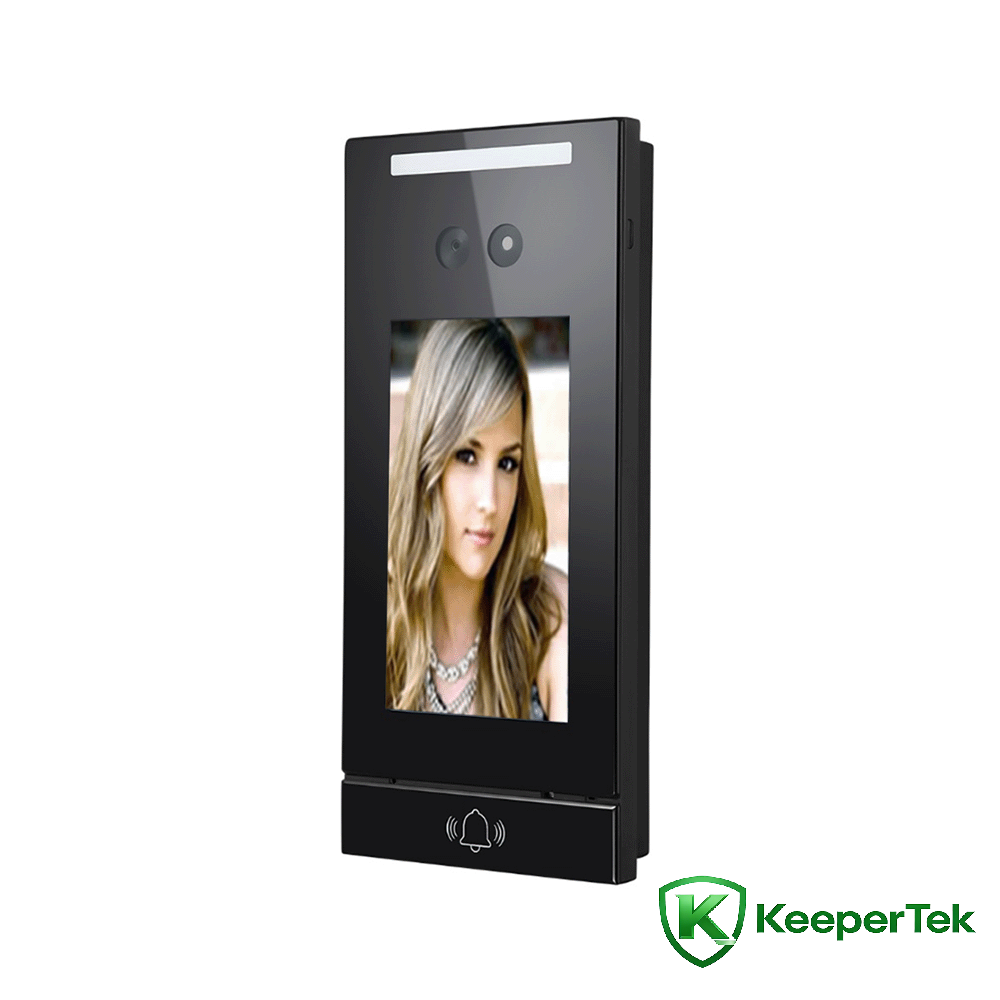

5-inch Facial Recognition and Card Reader All-in-One Machine KT-FR004
Technical Parameters
Processor: Domestic dual-core processor + 1GB RAM + 8GB EMMC
Operating System: Linux OS
Storage: Supports TF card (optional)
Camera: Dual lens, 2.1MP effective pixels, 1920×1080
Imaging Sensor: 1/2.8" Progressive Scan CMOS
Card Reader Module: Supports LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE multi-mode, max download speed 150Mbps, upload speed 50Mbps
WiFi Module: Optional, 2.4GHz WiFi SoC chip, integrated IEEE 802.11b/g/n baseband and RF circuit, max physical layer rate 72.2Mbit/s
Speaker: Standard, customizable voice prompts
Recognition Height: 1.2~2.3m, adjustable angle
Recognition Distance: 0.5~1.5m
Face Angle: ±30° horizontal, ±30° vertical
Recognition Time: <0.5 second
Storage Capacity: 80,000 capture records
Face Capacity: 10,000 templates
Supported Card Types: 13.56MHz, supports Mifare S50, S70, Ultralight, NTAG, DESFire D21/D41/D81, contactless CPU cards
Power Input: DC12V/2A
Network Interface: 1×RJ45 10/100Mbps adaptive Ethernet port, Gigabit port customizable
Wiegand Interface: 1×Wiegand output, 1×Wiegand input
Alarm Interface: 1×fire alarm input, 1×alarm output
Door Contact Interface: 1×door contact input
Door Opening Interface: 1×door opening input
Doorbell Interface: 1×doorbell output
Door Lock Interface: 1×door lock output
Communication Interface: 1×RS485
Camera: Dual camera with all-glass lens, visible light & near-infrared, supports liveness detection
Effective Pixels: 2.1MP, 1920×1080
Minimum Illumination: Color 0.01Lux @F1.2 (ICR); B/W 0.001Lux @F1.2 (ICR)
Signal-to-Noise Ratio: ≥50dB (AGC OFF)
Wide Dynamic Range: 120dB, ISP algorithm for local face exposure
Video Coding: H.265 Main Profile / H.264 BP/MP/HP / MJPEG
Operating Temperature: -20℃ ~ +60℃
Operating Humidity: 0~90% RH, non-condensing
Device Power: 15W (MAX)
Salt Spray Resistance: Above Rp6 level
ESD Protection: Contact ±6KV, Air ±8KV
Power Supply: DC12V/2A
Protection Level: IP42
Screen: 5-inch HD IPS display
Dimensions: 205(L)×95(W)×24.5(T)mm
Features
Supports dual-lens liveness detection
Supports tracking and exposure of moving human faces under strong backlight
Exclusive face recognition algorithm for accurate recognition, recognition time < 0.5 second
Built-in domestic CPU
Adopts Linux operating system for stable system performance
H.265 encoded video streams connect directly to NVR via ONVIF and GB28181 protocols
Supports local TF card storage: continuous image storage for 1 year, video for 1 month or longer (depends on TF card capacity)
Mean time between failures (MTBF) > 50,000 hours
Supports face database up to 10,000+ and 80,000 recognition records
Rich interface protocols, supports TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT on Windows/Linux
Operating temperature: -20℃ ~ +60℃
IP42 waterproof and dustproof for indoor use
Supports tamper alarm
Built-in IC card reader
Supports microphone input and speaker output
Abundant hardware interfaces (I/O, WG26, WG34, RJ45, door contact, doorbell, door opening, alarm, RS485)
5-inch IPS full-view HD display with no ghosting and no delay
Automatic gain and automatic white balance for natural color reproduction
Built-in black-level sensor for video surveillance, more accurate low-light recognition
3D noise reduction and defogging for clearer low-light images
Supports bitstream and I-frame interval settings
Supports video area masking
Supports ROI encoding
Supports auto and manual white balance
Supports maximum exposure time setting
Supports mobile monitoring
Supports 2D and 3D noise reduction
Supports recording schedule and upload mode settings
Supports video brightness, contrast, hue, saturation, gamma adjustment
Supports maximum auto exposure time setting
Supports face intelligent exposure and face enhancement
