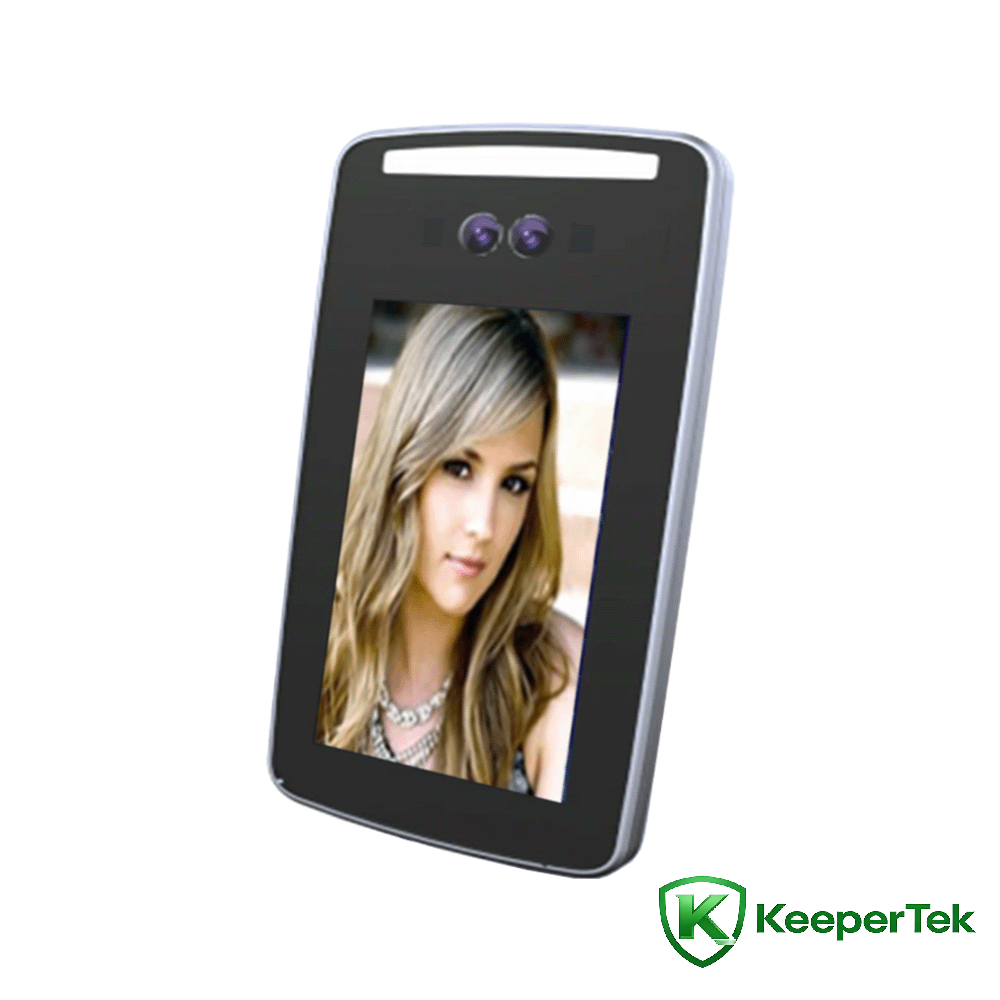

7-inch Facial Recognition Integrated Machine KT-FR005
Technical Parameters
Processor: Dual-core processor + 1GB RAM + 16GB EMMC
Operating System: Linux OS
Storage: Supports TF card
Camera: Dual lens, 2.1MP effective pixels, 1920×1080
Imaging Sensor: 1/2.8" Progressive Scan CMOS
Lens: 6mm
Speaker: Standard, customizable voice prompts
Recognition Height: 1.2~2.2m, adjustable angle
Recognition Distance: 0.5~1.5m (variable with lens)
Face Angle: ±30° horizontal, ±30° vertical
Recognition Time: < 0.5 second
Face Capacity: 20,000 templates
Storage Capacity: 60,000 capture records
Switch Output: 1 channel switch output; other GPIO ports customizable
Network Interface: 1×RJ45 10/100Mbps adaptive Ethernet port, Gigabit port customizable
Wiegand Interface: 1×Wiegand input, 1×Wiegand output
USB Interface: 1×USB device port
Communication Interface: 1×RS485
Camera: Dual camera, visible light & near-infrared, supports liveness detection
Effective Pixels: 2.1MP, 1920×1080
Minimum Illumination: Color 0.01Lux @F1.2 (ICR); B/W 0.001Lux @F1.2 (ICR)
Signal-to-Noise Ratio: ≥50dB (AGC OFF)
Wide Dynamic Range: 100dB, ISP algorithm for local face exposure
Video Coding: H.265 Main Profile / H.264 BP/MP/HP / MJPEG
Web Configuration: Supported
Remote Upgrade: Supported
Deployment: Supports public network and LAN
Operating Temperature: -30℃ ~ +60℃
Operating Humidity: 0~90% RH, non-condensing
Salt Spray Resistance: Above Rp6 level
ESD Protection: Contact ±6KV, Air ±8KV
Power Supply: DC12V/2A
Vandal Resistance: IK06
Protection Level: IP66
Device Power: 14.4W (MAX)
Dimensions: 128(W)×28(D)×240(H)mm
Features
Supports dual-lens liveness detection
Supports tracking and exposure of moving human faces under strong backlight
Exclusive face recognition algorithm for accurate recognition, recognition time < 0.5 second
Built-in domestic CPU
Adopts Linux operating system for stable system performance
Mean time between failures (MTBF) > 50,000 hours
Supports face database up to 20,000 templates and 60,000 recognition records
Rich interface protocols, supports TCP/IP, UDP, HTTP, DNS, DHCP, MQTT on Windows/Linux platforms
Operating temperature: -30℃ ~ +60℃
IP66 waterproof and dustproof
Built-in photosensitive sensor for automatic adjustment of fill light intensity
Abundant hardware interfaces (I/O, WG26, WG34, RJ45, RS485)
7-inch IPS full-view HD display with no ghosting and no delay
