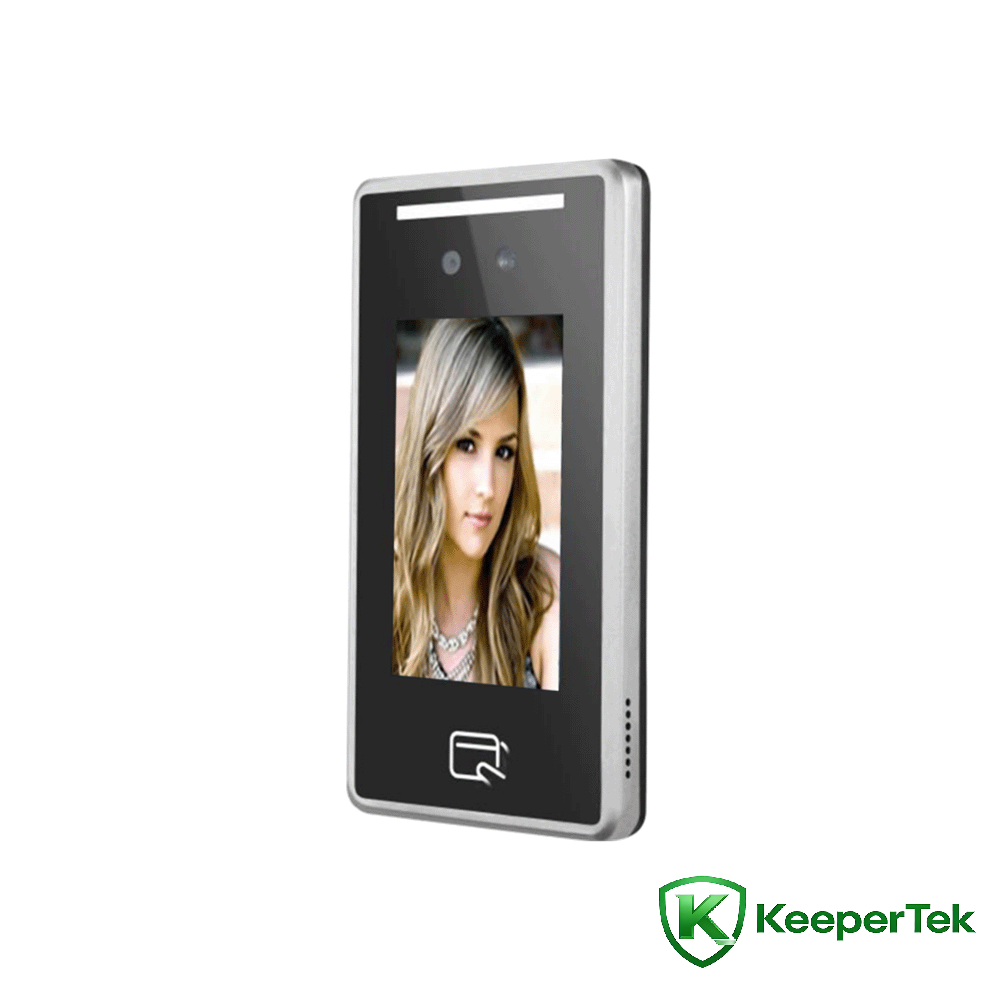

4.3-inch Facial Recognition and Card Reader Integrated Machine KT-FR003
Technical Parameters
Processor: Dual-Core ARM Cortex-A7 @1.0GHz
Storage: RAM: 256MB ROM: 8GB
Operating System: Linux OS
Lens: Focal length 4.32mm
Card Reader Module: 13.56MHz high-frequency card reader, supports ISO/IEC 14443 TypeA, IC card reading
Ethernet: 100Mbps Ethernet port, compliant with IEEE802.3/802.3u, supports IPv4/IPv6
WiFi Module: 2.4GHz single-band WiFi, supports 802.11 b/g, max rate 54Mbps
Bluetooth Module: BT 4.2, modulation: DPSK, DQPSK, GFSK, transmission rate: 1Mbps~3Mbps
Display: 4.3-inch IPS LCD screen
Touch: Capacitive touch
Speaker: Adjustable volume, power 1W
Recognition Distance: 0.3~1.5m
Face Angle: ±30° horizontal, ±30° vertical
Recognition Time: <0.5 second
Face Capacity: 1000 templates
Record Capacity: 70000 records
Power Input: DC12V/2A
Network Interface: 1×100Mbps Ethernet port
Wiegand Interface: 1×Wiegand output
Alarm Interface: 1×alarm input
Door Contact Interface: 1×door contact input
Door Opening Interface: 1×door opening input
Communication Interface: 1×RS485
USB Interface: 1×USB2.0 Type-A
Camera: Dual camera, visible light & near-infrared, supports liveness detection
Effective Pixels: 2.1MP
Minimum Illumination: Color 0.01Lux @F1.2 (ICR); B/W 0.001Lux @F1.2 (ICR)
Signal-to-Noise Ratio: ≥50dB (AGC OFF)
Wide Dynamic Range: 100dB, ISP algorithm for local face exposure
Operating Temperature: -10℃ ~ +50℃
Operating Humidity: 10%~90% RH, non-condensing
Device Power: 10W (MAX)
ESD: Contact ±4KV, Air ±6KV
Protection Level: IP42
Power Supply: DC12V/2A
Product Dimensions: 173.5×90.0×24.0mm
Features
Supports dual-lens liveness detection
Supports tracking and exposure of moving human faces under strong backlight
Exclusive face recognition algorithm for accurate recognition, recognition time < 0.5 second
Built-in domestic CPU
Adopts Linux operating system for stable system performance
Mean time between failures (MTBF) > 50,000 hours
Operating temperature: -10℃ ~ +50℃
Supports local device configuration, user enrollment, information query, etc.
Abundant hardware interfaces (USB2.0, door contact input, door opening input, alarm input, Wiegand output, etc.)
4.3-inch capacitive touch screen with no ghosting and no delay
