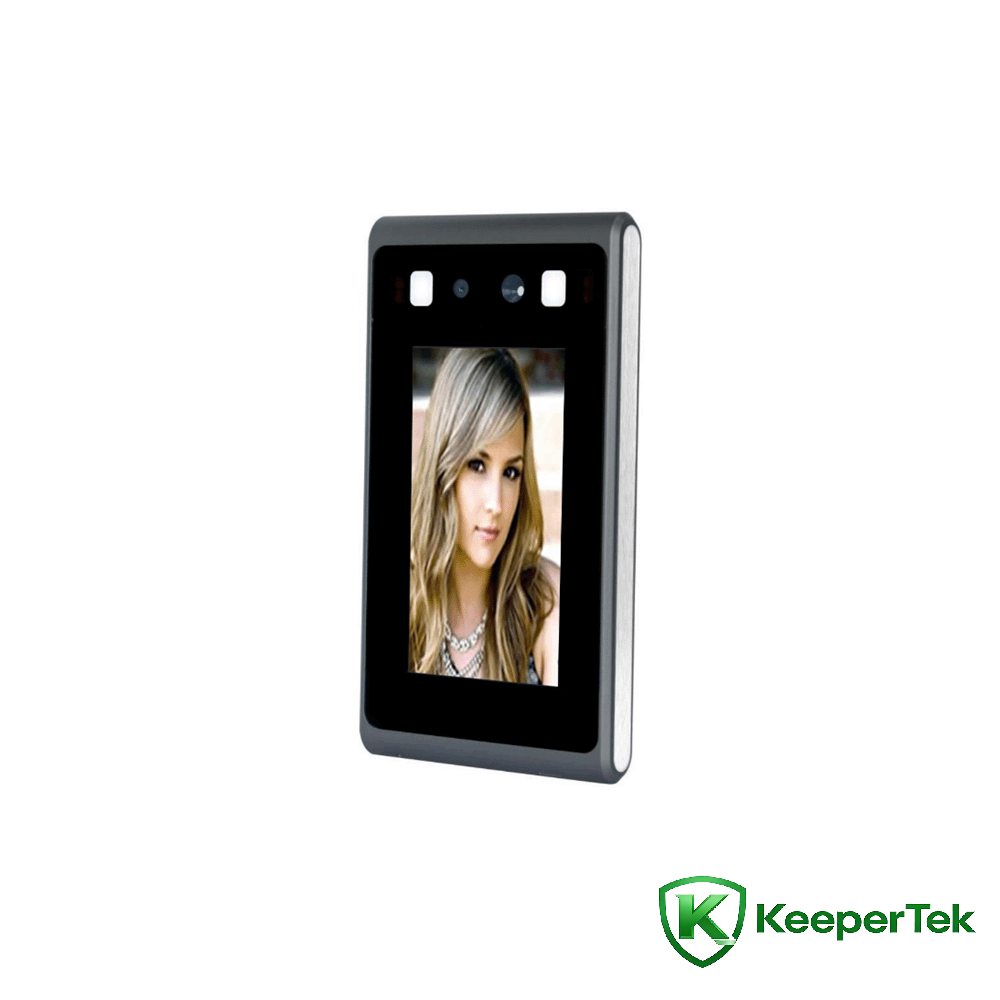

4.3-inch Facial Recognition and Card Reader Integrated Machine KT-FR002
Technical Parameters
Processor: Dual-Core ARM Cortex-A7 @1.0GHz
Operating System: Linux OS
Storage: Supports TF card (optional)
Camera: Dual lens, 2.1MP effective pixels, 1920*1080
Imaging Sensor: 1/2.8" Progressive Scan CMOS
Lens: 4.5mm
Card Reader Module: Optional, 13.56MHz, supports ID card serial number, Mifare, NFC
WiFi Module: Complies with IEEE 802.11b/g/n, supports 2.4GHz band, speed 1Mbps–150Mbps
Touch Screen: Capacitive multi-touch
Speaker: Standard, customizable voice prompts
Recognition Height: 1.2~2.2m, adjustable angle
Recognition Distance: 0.3~1.5m
Face Angle: ±30° horizontal, ±30° vertical
Recognition Time: <0.5 second
Storage Capacity: 60,000 capture records
Face Capacity: 20,000 templates
Power Input: DC12V/2A
Network Interface: 1×RJ45 10/100Mbps adaptive Ethernet port
Wiegand Interface: 1×Wiegand output, 1×Wiegand input
Alarm Interface: 1×fire alarm input, 1×alarm output
Door Contact Interface: 1×door contact input
Door Opening Interface: 1×door opening input
Doorbell Interface: 1×doorbell output
Door Lock Interface: 1×door lock output
Communication Interface: 1×RS485
Camera: Dual camera with all-glass lens, visible light & near-infrared, supports liveness detection
Effective Pixels: 2.1MP, 1920×1080
Minimum Illumination: Color 0.01Lux @F1.2 (ICR); B/W 0.001Lux @F1.2 (ICR)
Signal-to-Noise Ratio: ≥50dB (AGC OFF)
Screen Resolution: 480×272
Operating Temperature: -20℃ ~ +55℃
Operating Humidity: 0~90% RH, non-condensing
Device Power: 10W (MAX)
Salt Spray Resistance: Above Rp6 level
ESD Protection: Contact ±4KV, Air ±8KV
Power Supply: DC12V/2A
Protection Level: IP42
Screen: 4.3-inch capacitive multi-touch screen
Dimensions: 160(L)×88(W)×17(T)mm
Features
Supports dual-lens liveness detection
Supports tracking and exposure of moving human faces under strong backlight
Exclusive face recognition algorithm for accurate recognition, recognition time < 0.5 second
Built-in domestic CPU
Adopts Linux operating system for stable system performance
Mean time between failures (MTBF) > 50,000 hours
Supports face database up to 20,000+ and 60,000 recognition records
Operating temperature: -20℃ ~ +55℃
IP42 waterproof and dustproof for indoor use
Supports tamper alarm
Supports microphone audio input and speaker audio output
Abundant hardware interfaces (I/O, WG26, WG34, RJ45, door contact, doorbell, door opening, alarm, RS485)
4.3-inch capacitive multi-touch screen with no ghosting and no delay
