4/8/12/16-Way Wall-mounted Electric Bike Charging Station KT-HC16
Technical Parameters
Appearance Material: Sheet metal + tempered glass

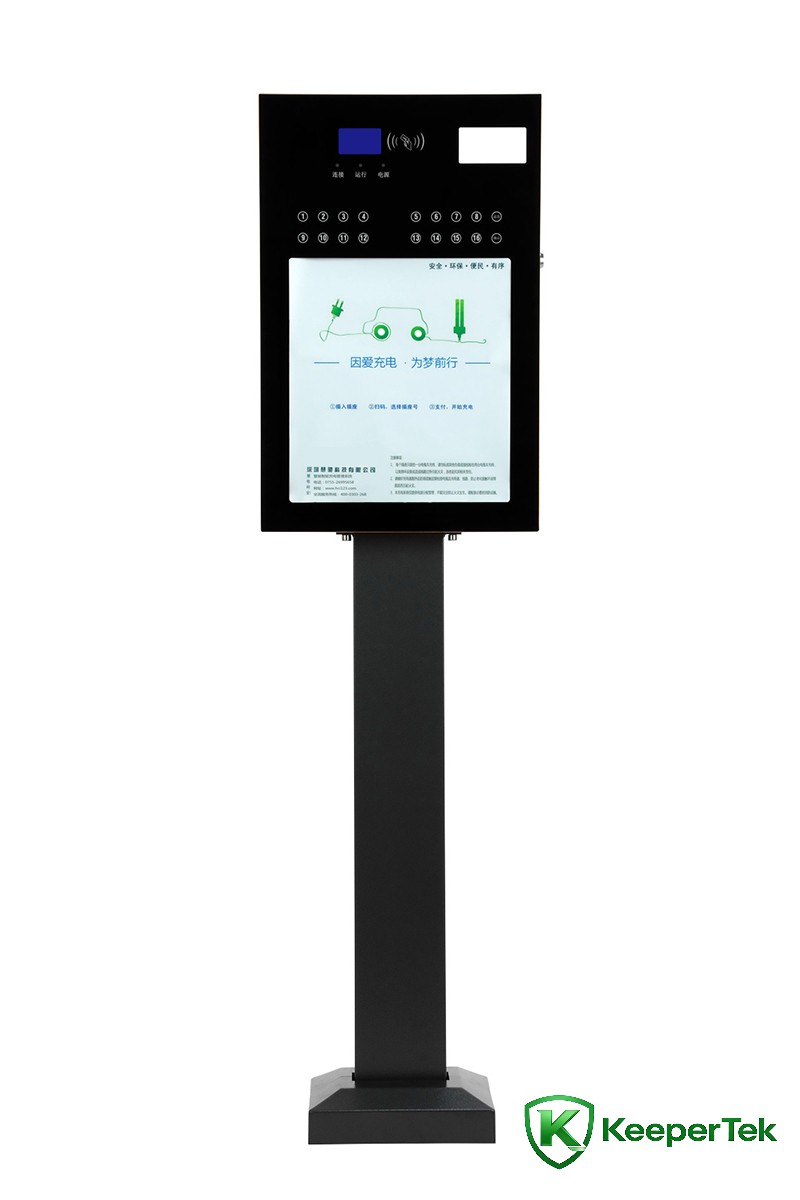

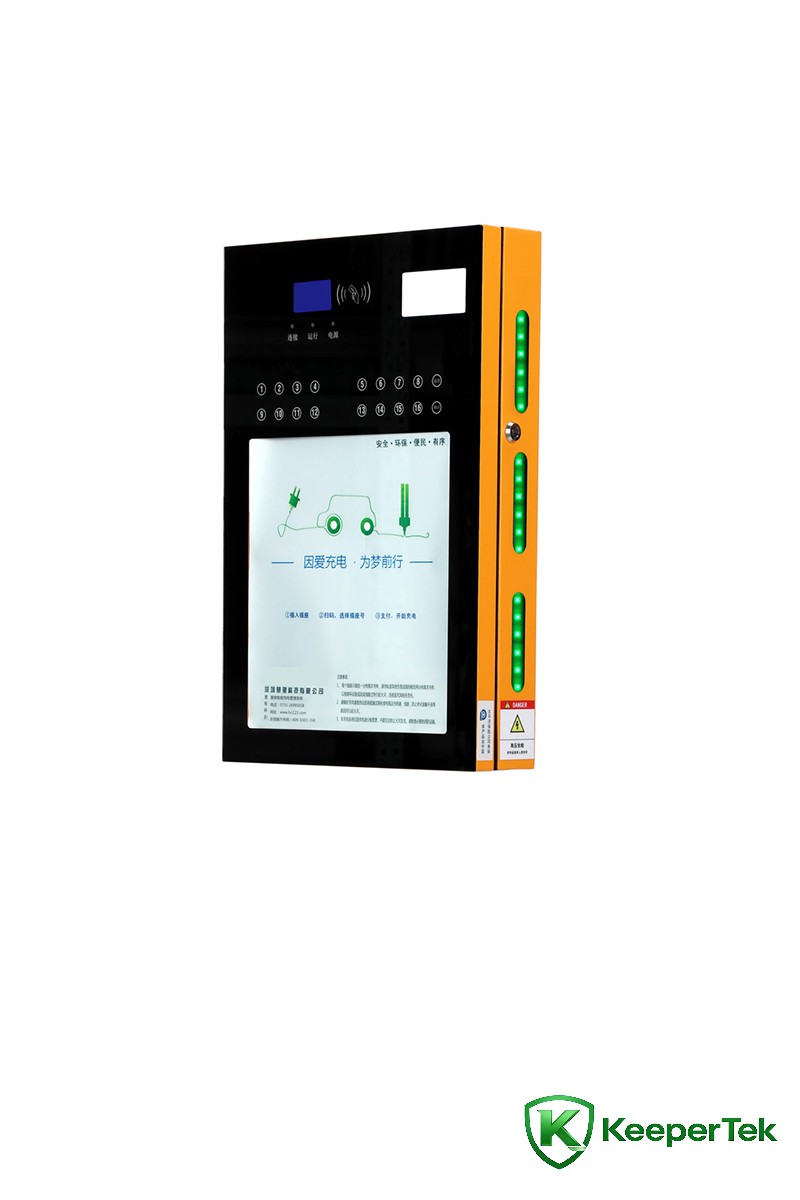

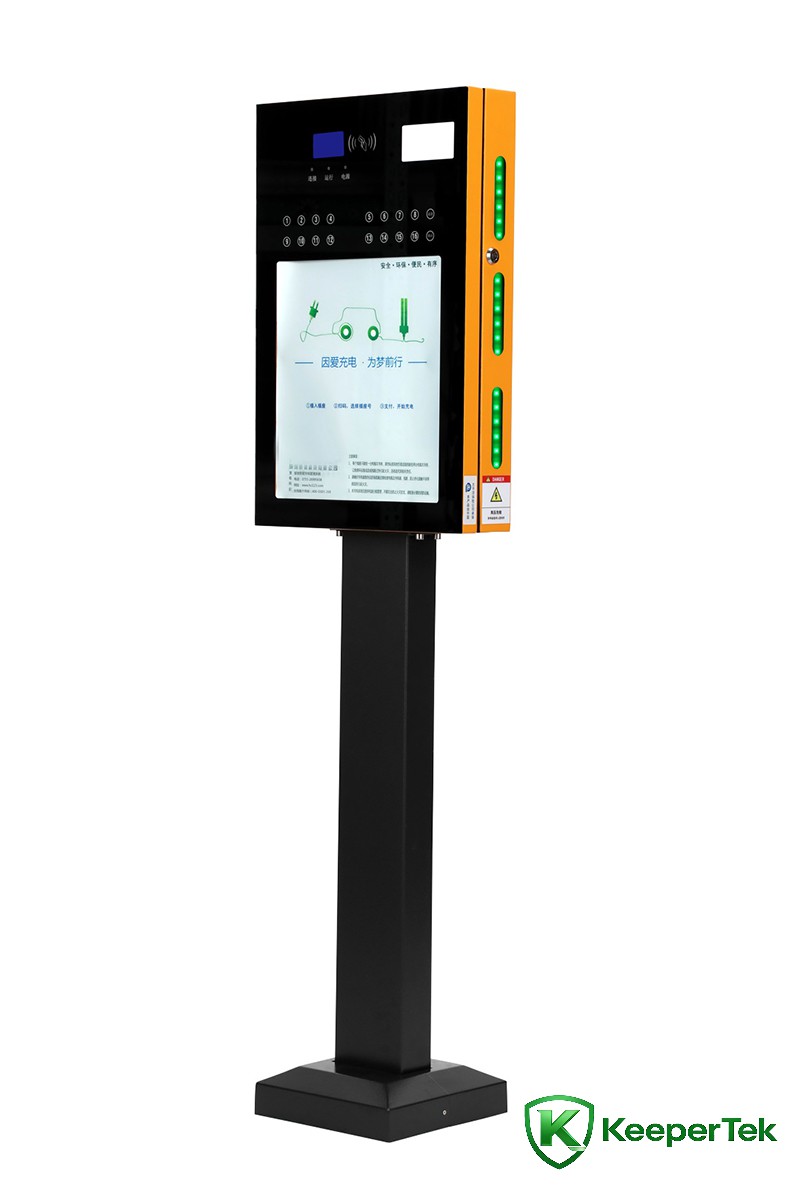

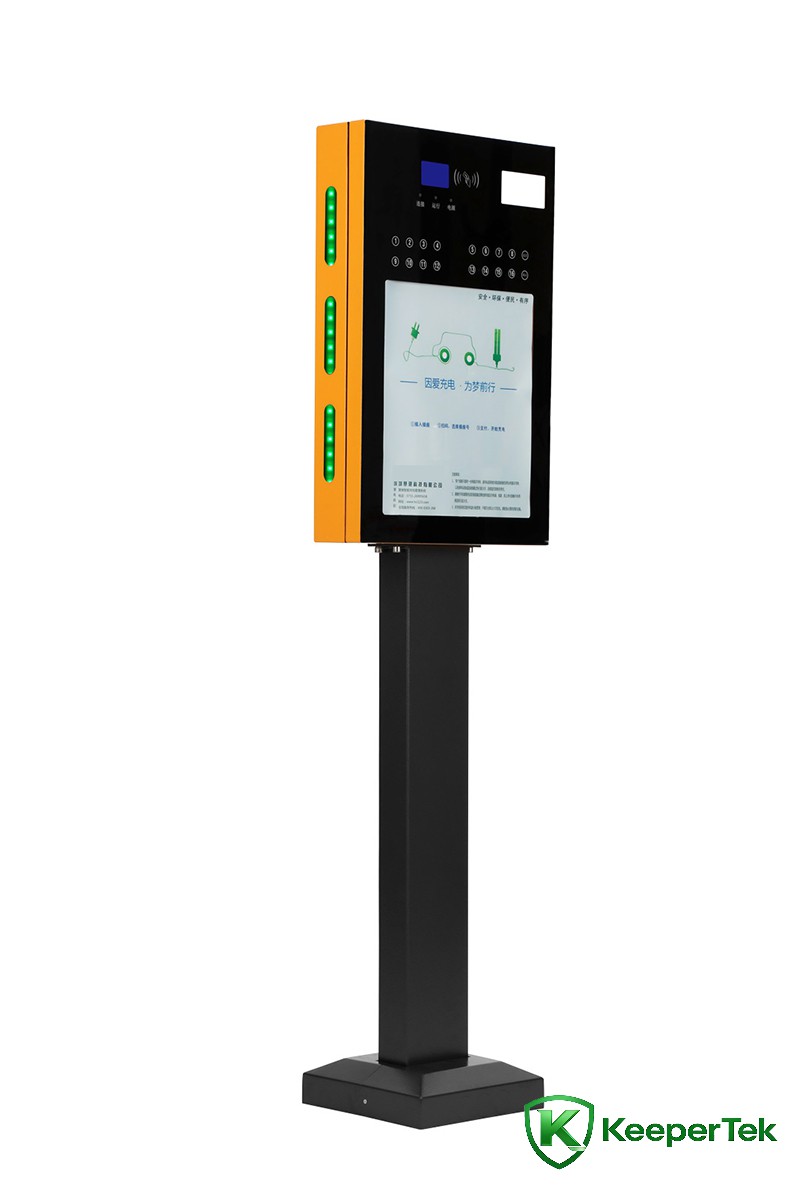

Installation: Wall-mounted / Floor-mounted (with column)
*Number of charging channels: 4/8/12/16 channels (customizable)
Input Voltage: AC220V±10%
Input Frequency: 50±10Hz
Output Voltage: AC220V±10%
Output Power: Max. 3500W per channel
Standby Power: ≤0.7～2W
Current Range: 0.1～20A (adjustable)
Current Detection: Dynamic real-time current monitoring at 10 times/second
*HMI: LCD display, LED indicators (customizable)
Operation Indication: Power, Running, Communication
Charging Mode: Auto stop when full / Fixed power / Fixed amount / Fixed time
*Payment Method: Card payment / QR code payment (customizable)
Billing Mode: Per-time / Time-based / Power-based (configurable)
Communication Interface: RS485 / 2G / 4G (optional)
*Data Openness: Support third-party software platform access (customizable)
*Expansion Support: Face recognition (customizable)
Executive Standards: GB/T 20234, GB/T 18487, NB/T 33008, NB/T 33002
Management Features: Power-off memory, adjustable rate, blacklist & whitelist, data communication, integrated one-card system
Safety Functions: Over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, leakage protection
Application Environment: Indoor / Outdoor
Operating Temperature: -20℃～+70℃
Relative Humidity: 5%～95% non-condensing
Protection Class: IP54
Optional Items: Items marked * are customizable
Product Features
Product Type: 8-channel / 12-channel / 16-channel
Installation: Wall-mounted / Outdoor / Column-mounted
Description: This is a 16-channel community charging station, which can charge 16 electric vehicles at the same time. It has basic functions such as overcharge protection, overload protection, voice prompt and automatic power-off. It supports both QR code payment and card payment, safe and convenient.
Features: Solves the problems of disorderly parking of electric vehicles for property management and charging difficulties for residents. Huichi intelligent community charging station provides a complete set of community charging solutions to solve charging problems.
