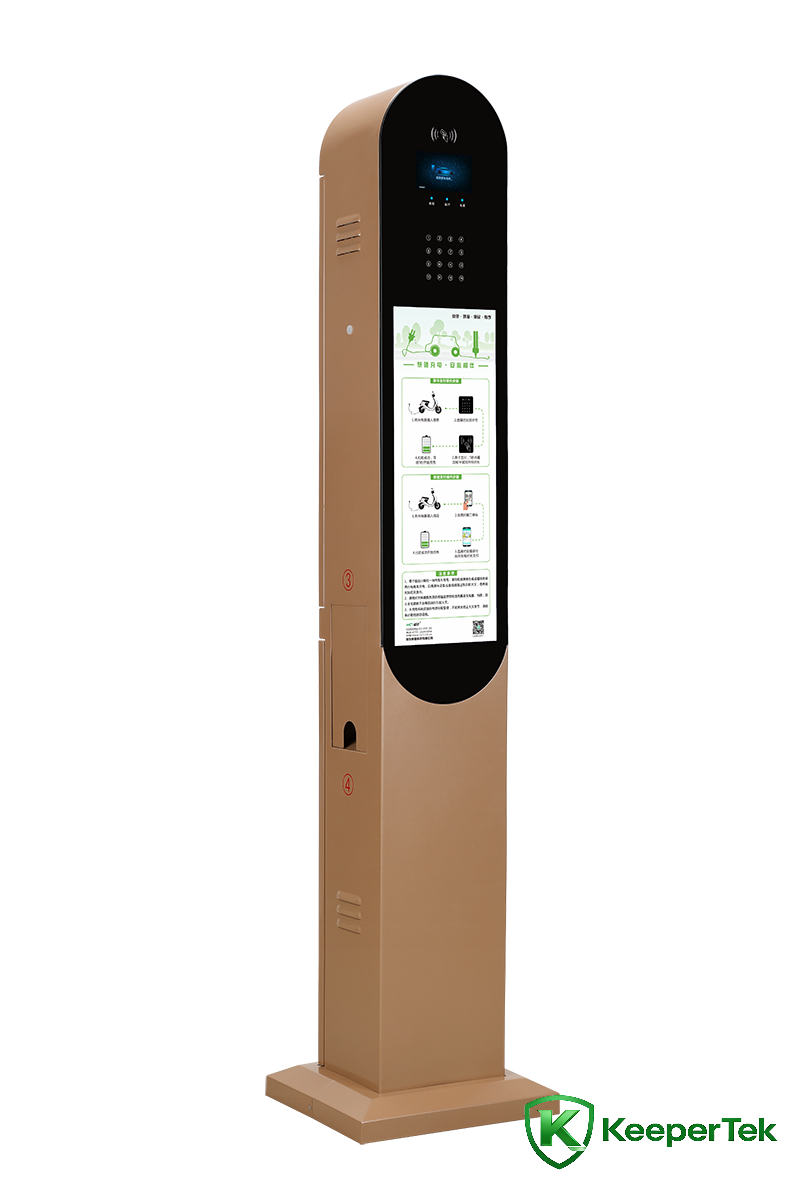

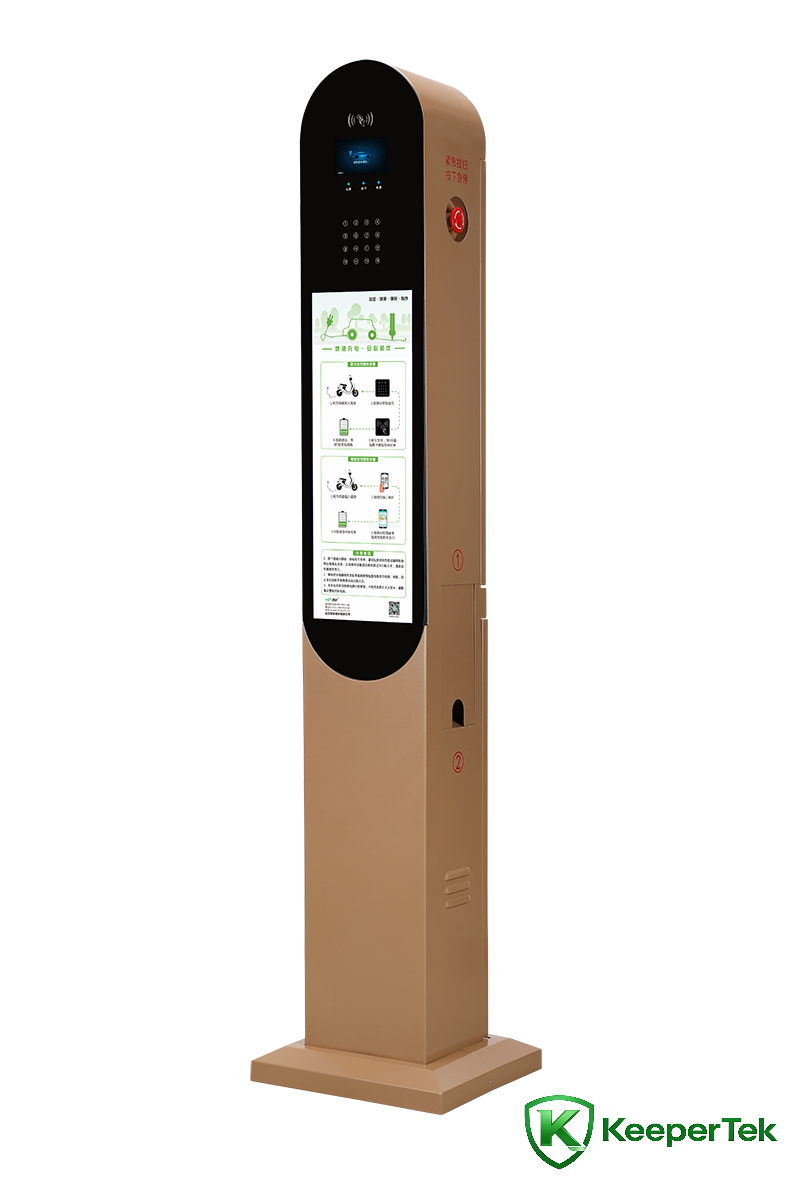

Custom Low-Speed Electric Vehicle Charging Station KT-HC17
Technical Parameters
Appearance Material: Sheet metal + tempered glass
Installation: Floor-mounted
*Number of charging channels: 2/4 channels (customizable)
Input Voltage: AC220V±10%
Input Frequency: 50±1Hz
Output Voltage: AC220V±10%
Output Power: Max. 3500W per channel
Standby Power: ≤2W
Current Range: 0.1～20A (adjustable)
Current Detection: Dynamic real-time current monitoring at 10 times/second
*HMI: 4.3-inch LCD display, LED indicators (customizable)
Operation Indication: Power, Running, Communication
Charging Mode: Auto stop when full / Fixed power / Fixed amount / Fixed time
*Payment Method: Card payment / QR code payment (customizable)
Billing Mode: Per-time / Time-based / Power-based (configurable)
Communication Interface: RS485 / 4G (optional)
*Data Openness: Support third-party software platform access (customizable)
*Expansion Support: Face recognition (customizable)
Executive Standards: GB/T 20234, GB/T 18487, NB/T 33008, NB/T 33002
Management Features: Adjustable rate, data communication, integrated one-card system
Safety Functions: Over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, emergency stop protection, leakage protection
Application Environment: Indoor / Outdoor
Operating Temperature: -20℃～+50℃
Relative Humidity: 5%～95% non-condensing
Protection Class: IP54
Optional Items: Items marked * are customizable
Product Features
This special charging station for low-speed vehicles supports metering, billing and access to operation platforms, with convenient WeChat and Alipay QR code payment, allowing operators to collect payments anytime and anywhere.
It is widely used in tourist attractions, government units, security patrols, urban public law enforcement parking lots, golf courses, etc., providing AC charging for electric vehicles and supporting advertising functions to meet market demands.
Description: Special urban charging station for tourist sightseeing vehicles, golf carts, electric classic cars, hotel vehicles, property viewing vehicles, electric patrol vehicles, small and medium-sized trucks, and various engineering modified vehicles.
