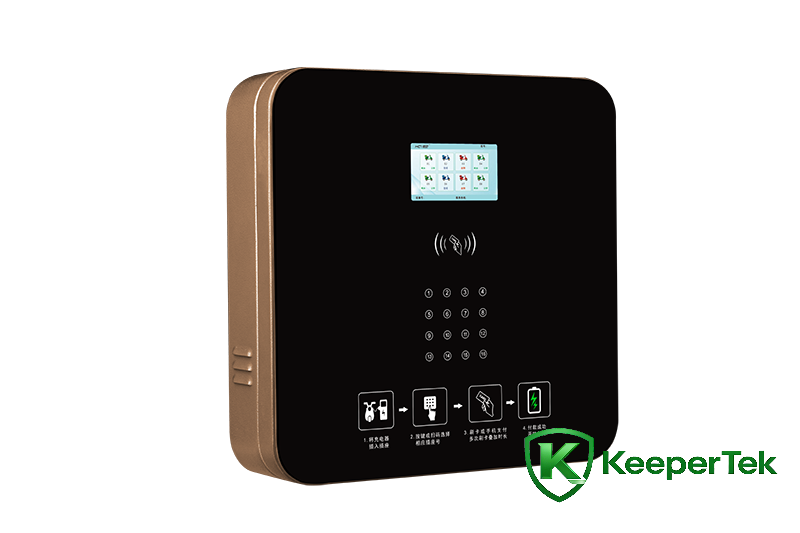

16-Wall-mounted Electric Bike Charging Station KT-HC15
Technical Parameters
Appearance Material: Sheet metal + tempered glass
Installation: Wall-mounted / Column-mounted (column optional)
*Number of charging channels: 16 channels
Input Voltage: AC220V±10%
Input Frequency: 50±1Hz
Output Voltage: AC220V±10%
Output Power: Max. 1000W per channel
Standby Power: ≤2W
Current Range: 0.1～10A (adjustable)
Current Detection: Dynamic real-time current monitoring at 10 times/second
*HMI: 4.3-inch LCD display
Operation Indication: Power, Running, Communication
Charging Mode: Auto stop when full / Fixed power / Fixed amount / Fixed time
*Payment Method: Card payment / QR code payment (optional)
Billing Mode: Per-time / Time-based / Power-based (configurable)
Communication Interface: RS485 / 4G (optional)
*Data Openness: Support third-party software platform access (customizable)
*Expansion Support: Face recognition (customizable)
Standards: GB/T 20234, GB/T 18487, NB/T 33008, NB/T 33002
Management Features: Power-off memory, adjustable rate, blacklist & whitelist, data communication, integrated one-card system
Safety Functions: Over-voltage, under-voltage, overload, short-circuit, grounding, over-temperature, lightning protection, leakage protection
Application Environment: Indoor / Outdoor
Operating Temperature: -20℃～+50℃
Relative Humidity: 5%～95% non-condensing
Protection Class: IP54
Optional Items: Items marked * are customizable
Product Features
Product Type: 16-channel
Installation: Wall-mounted / Outdoor / Column-mounted
Description: This 16-channel community charging station can charge 16 electric vehicles simultaneously. It includes basic functions such as overcharge protection, overload protection, voice prompt and automatic power-off. It supports both QR code payment and card payment, safe and convenient.
Features: Solves problems of disorderly parking of electric vehicles for property management and charging difficulties for residents. Provides a complete set of community charging solutions.
