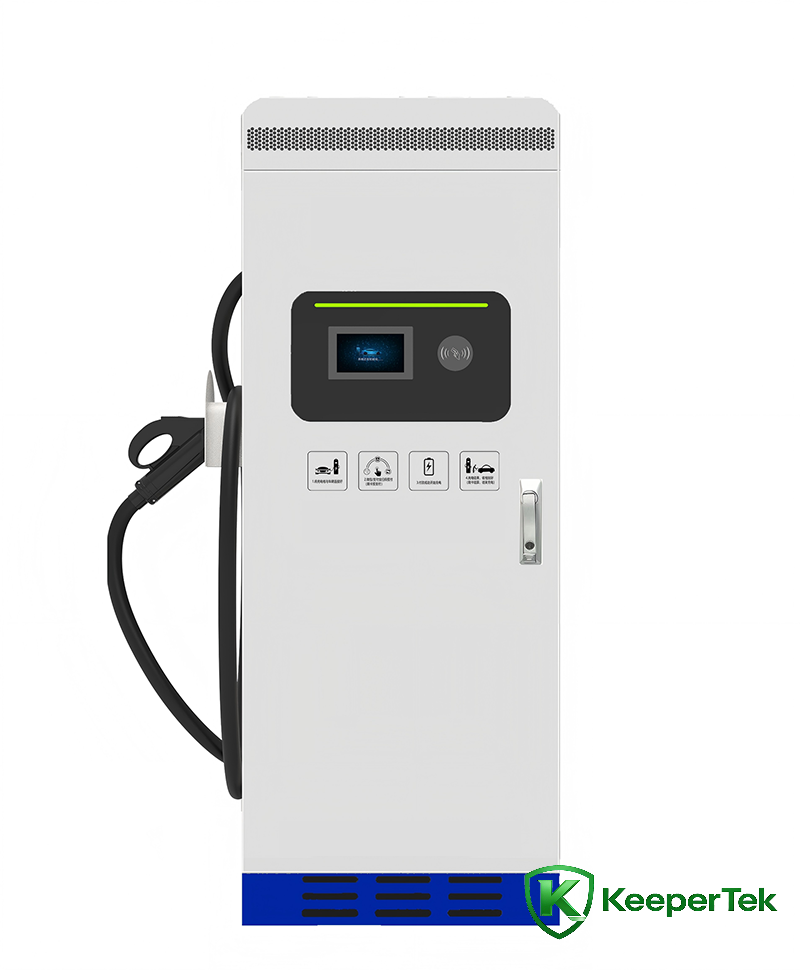

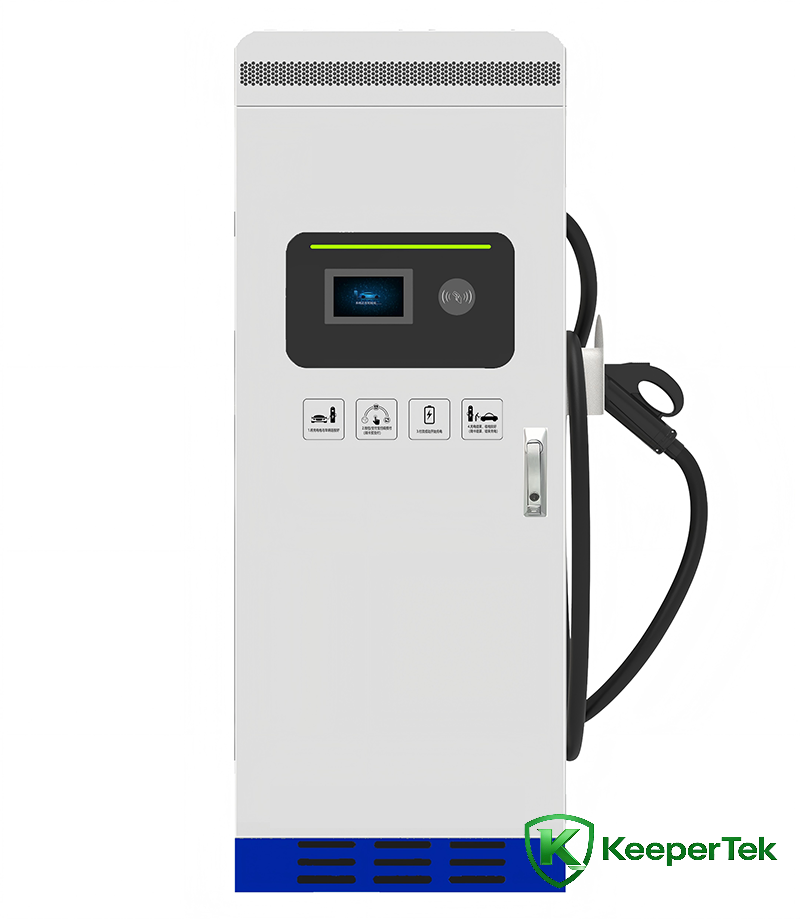

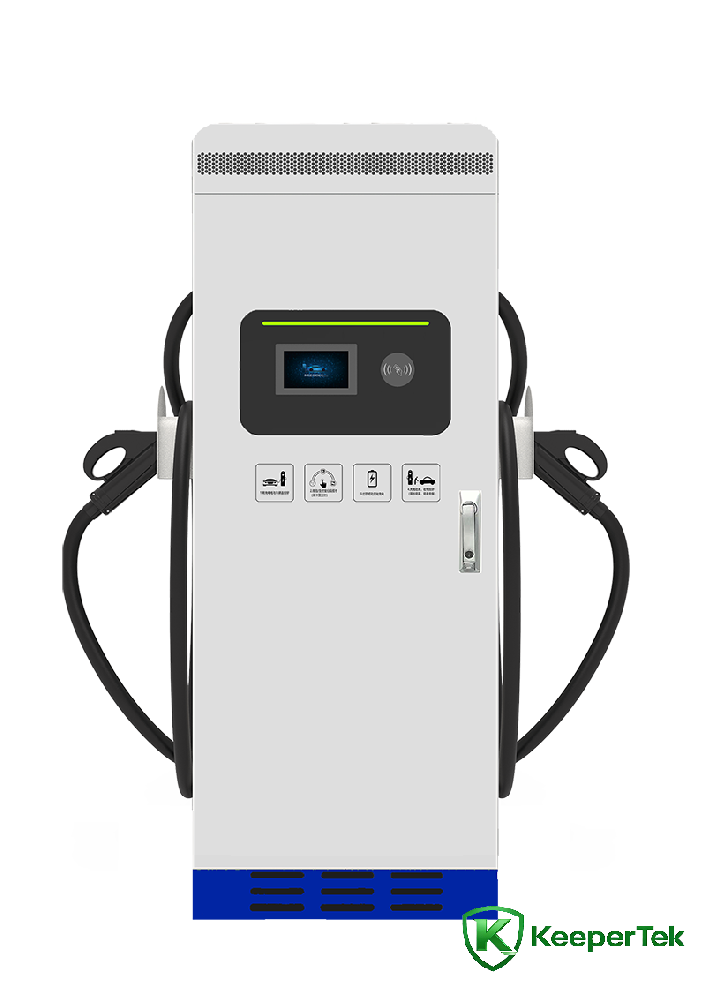

20/30/40/60KW Wall-mounted / Column-mounted DC Charging Station KT-HC10
Technical Parameters
Appearance Material: Sheet metal + tempered glass
Installation: Floor-mounted
Wiring Mode: Bottom inlet & bottom outlet
*Charging Cable Length (m): 5m (customizable)
Input Voltage: AC380V±15%
Input Frequency: 50±1Hz
Rated Power: 40KW
Output Voltage: DC200-1000V
Max Output Current: 134A
Metering Accuracy: Class 0.5
Current Limit Protection Value: 1.1 times
HMI: 7-inch LCD touch screen, LED indicators
Charging Mode: Auto stop when full / Card charging
*Payment Method: Card payment / QR code payment (customizable)
Communication Interface: Ethernet / RS485 / 4G (optional)
Executive Standards: GB/T20234.1-2015, GB/T 27930-2015, NB/T 33008.1-2013, GB/T 29318-2012
Safety Functions: Over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, leakage protection
Application Environment: Indoor / Outdoor
Operating Temperature: -20℃～+50℃
Relative Humidity: 5%～95% non-condensing
Protection Class: IP54
Cooling Mode: Natural cooling
Optional Items: All items marked with * are customizable
Product Features
Supports flexible selection of multiple powers: 40/60/80KW, DC fast charging, greatly shortening the charging time.
Integrated floor-mounted design, stable structure, easy installation, suitable for various indoor and outdoor scenarios.
Wide voltage output DC200‑1000V, compatible with most electric vehicles on the market.
Equipped with a high-definition LCD touch screen, simple operation, and real-time display of charging data.
Supports multiple startup and payment methods such as card swiping, QR code scanning and APP, meeting operational needs.
Equipped with multiple protections including over-voltage, under-voltage, overload, short-circuit, over-temperature, lightning protection, leakage protection and emergency stop.
Supports Ethernet and 4G communication, and can be connected to the cloud platform to realize remote monitoring and management.
Supports electricity billing, time-of-use billing and custom rates, suitable for commercial operations.
Protection class IP54, can operate stably outdoors, adapting to the environment of -20℃～+50℃.
Supports power-off memory and fault self-diagnosis, and can be extended with face recognition, license plate recognition and parking lock linkage.
