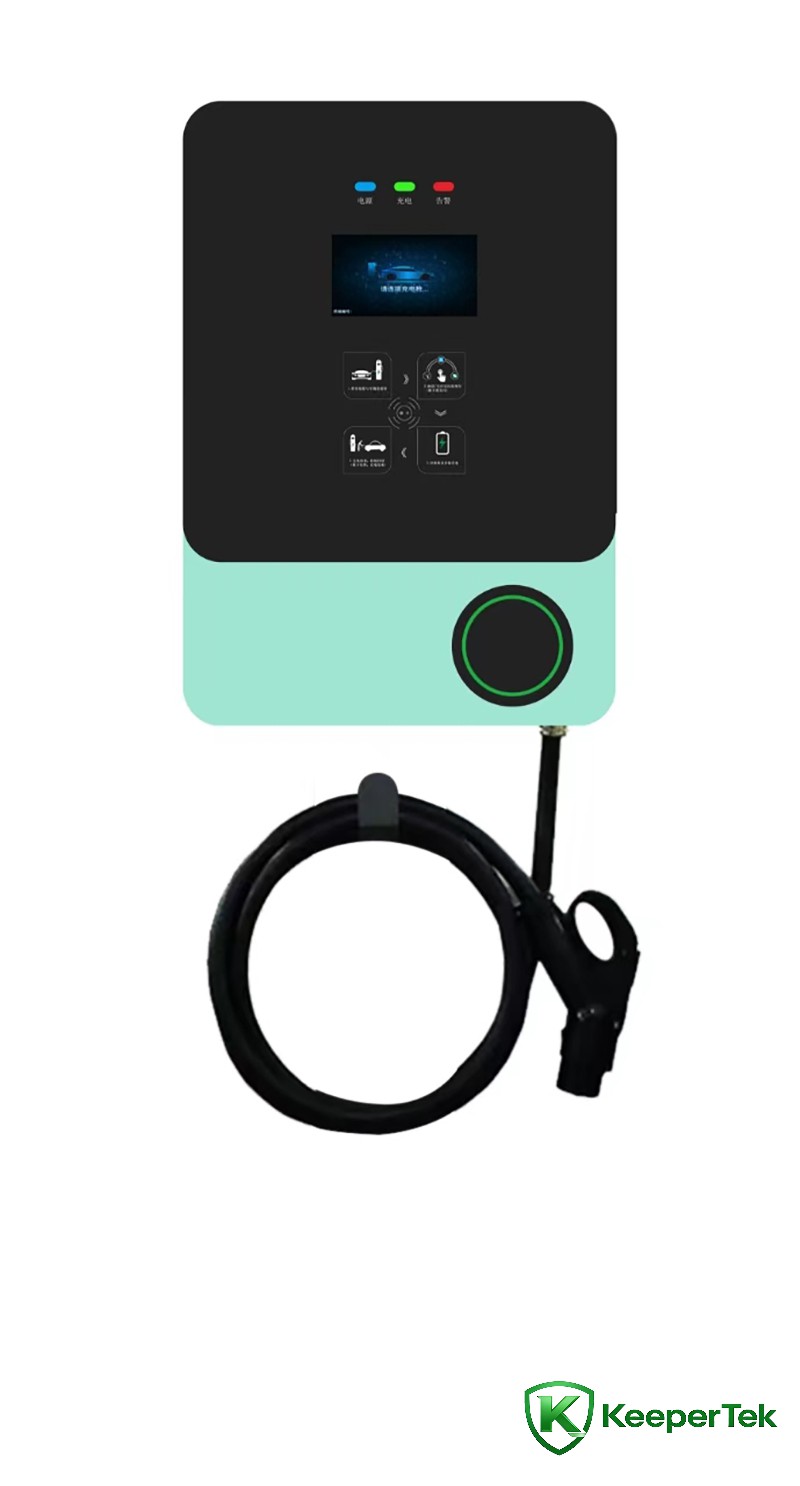

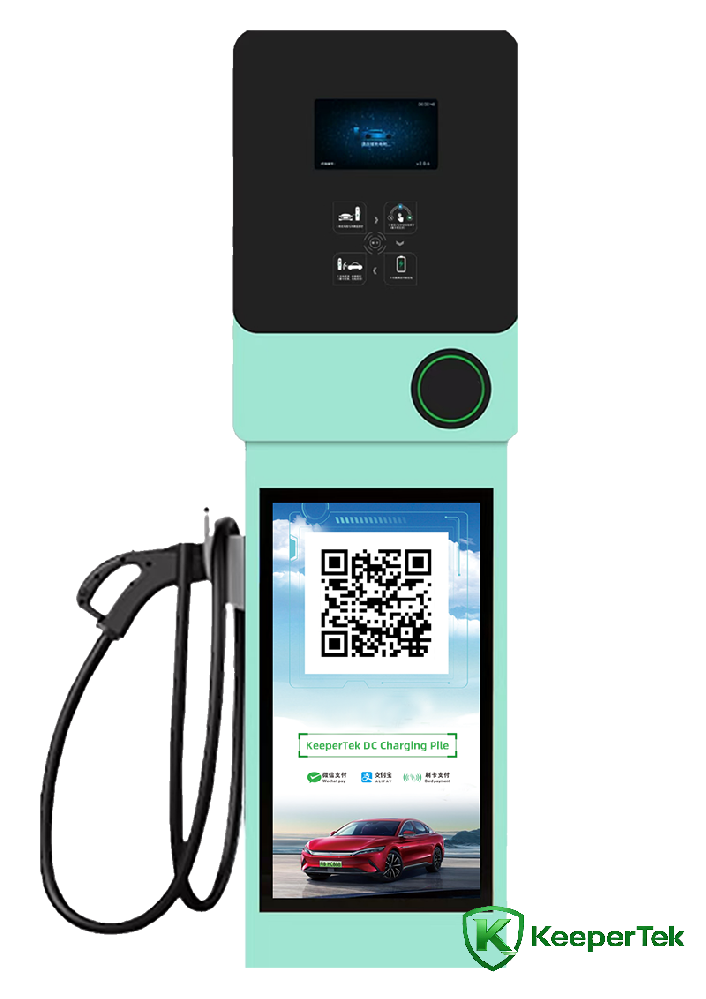

20/30/40/60KW Wall-mounted / Column-mounted DC Charging Station KT-HC10
Technical Parameters
Appearance Material: Sheet metal + tempered glass
Installation: Wall-mounted / Floor-mounted
Wiring Mode: Bottom inlet & bottom outlet
Charging Cable Length (m): 5m (customizable)
Input Voltage: AC380V±15%
Input Frequency: 50±1Hz
Rated Power: 20KW/30KW/40KW/60KW
Output Voltage: DC200-1000V
Output Current: 50A1
Metering Accuracy: Class 0.5
Current Limit Protection Value: 1.1 times
HMI: 7-inch LCD touch screen, LED indicators
Charging Mode: Auto stop when full / Card charging
*Payment Method: Card payment / QR code payment (optional)
Communication Interface: Ethernet / 4G (optional)
Executive Standards: GB/T20234.1-2015, GB/T 27930-2015, NB/T 33008.1-2013, GB/T 29318-2012
Safety Functions: Over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, leakage protection
Application Environment: Indoor / Outdoor
Operating Temperature: -20℃～+50℃
Relative Humidity: 5%～95% non-condensing
Protection Class: IP54
Cooling Mode: Natural cooling
Optional Items: All items marked with * are customizable
Product Features
Supports multiple power options: 20/30/40/60KW, DC fast charging with high efficiency, meeting fast charging demands of different vehicles.
Wall-mounted / column-mounted installation, compact structure with small space occupation, suitable for communities, parking lots, service areas and other scenarios.
Equipped with high-definition display and status indicators, clearly showing charging status, voltage, current and power data.
Supports various payment methods such as card swiping and QR code scanning, connectable to operation platform for remote management and time-of-use billing.
Full-range safety protection including over-voltage, under-voltage, overload, short-circuit, over-temperature, lightning protection, leakage protection and emergency stop.
Supports power-off memory, rate setting, blacklist & whitelist management, and can be extended with face recognition, license plate recognition and parking lock linkage.
