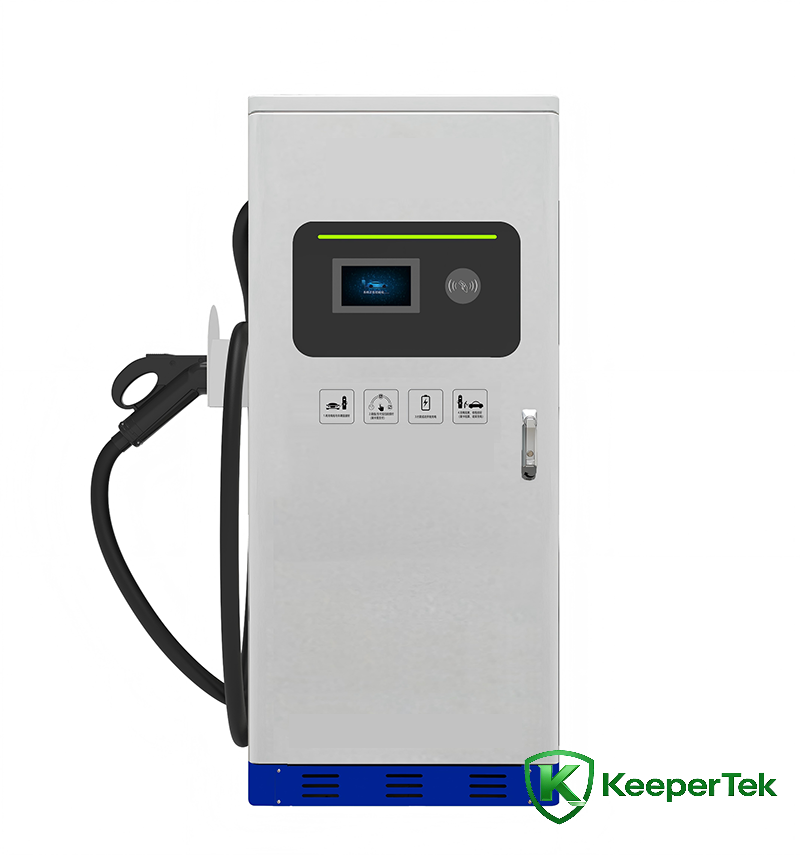

120KW/240KW/360KW/400KW Wall-mounted / Column-mounted DC Charging Station KT-HC12
Technical Parameters
Appearance Material: Sheet metal + tempered glass
Installation: Floor-mounted
Wiring Mode: Bottom inlet & bottom outlet
*Charging Cable Length (m): 5m (customizable)
Input Voltage: AC380V±15%
Input Frequency: 50±1Hz
Rated Power: 60KW~240KW
Output Voltage: DC200-1000V
Max Output Current: Max 200A/250A
Accuracy of Smart Meter: Class 2.0
Current Limit Protection Value: 1.1 times
HMI: 7-inch LCD touch screen, LED indicators
Operation Indication: Power, Charging, Alarm
Charging Mode: Auto full / Fixed power / Fixed amount / Fixed time
*Payment Method: Card payment / QR code payment (customizable)
Metering & Billing: Electricity billing (accuracy Class 1.0)
Communication Interface: Ethernet / RS485 / 4G (optional)
*Data Openness: Support third-party software platform access (customizable)
*Expansion Support: Face recognition / License plate recognition / Parking lock / Parking radar (customizable)
Executive Standards: GB/T 20234, GB/T 18487, NB/T 33008, NB/T 33002
Management Features: Power-off memory, adjustable tariff, blacklist & whitelist, data communication, integrated one-card system
Safety Functions: Over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, emergency stop protection, leakage protection
Application Environment: Indoor / Outdoor
Operating Temperature: -20℃～+50℃
Relative Humidity: 5%～95% non-condensing
Protection Class: IP54
Cooling Mode: Intelligent forced air cooling
Reliability (MTBF): ≥18000h
Optional Items: All items marked with * are customizable
Product Features
Supports multiple power options: 120/240/360/400KW, with flexible single/dual gun configuration to meet high-power DC fast charging demands.
Ultra-wide output voltage DC200‑1000V, fully compatible with electric passenger vehicles, logistics vehicles, buses and other models.
Adopts high-efficiency rectifier modules for fast charging, supports intelligent power distribution to improve station utilization and operation efficiency.
Equipped with high-definition touch screen and status indicators for simple operation and real-time visualization of charging data and fault information.
Supports various payment methods such as card, QR code, APP and contactless payment, connectable to cloud platform for remote management and time-of-use billing.
Provides full-range safety protection including over-voltage, under-voltage, overload, short-circuit, over-temperature, lightning protection, leakage and emergency stop for stable and reliable operation.
