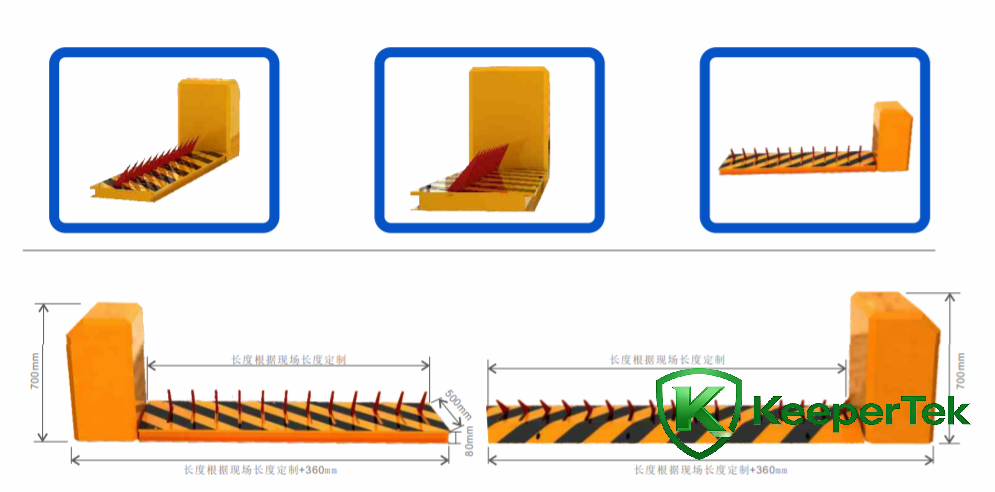

Tire Killer (Surface-mounted Type) KT-DX20
Technical Parameters
Installation Type: Surface-mounted
Load Capacity: 50 Tons
Panel Thickness: 10mm / 16mm / 20mm
Material: A3 Steel
Surface Treatment: Plastic Spraying
Optional Colors: Yellow, Black, Red
Lifting Speed: 1S～2S
Rising Height of Tire Spikes: 120mm
Waterproof Rating: IP68
Control System: Electric
Voltage & Power: 220V / 150W
Working Temperature: -40℃～75℃
Control Method: Control Box / Wireless Remote Control
Length: Customized according to site conditions
Linkage Function: Linkable with barrier gate, traffic lights, AB door, alarm system, etc.
Features
Installation: Surface-mounted, shallow-mounted
New structural design, sturdy and durable, high load-bearing capacity, compact structure with thick materials, greatly improving pressure resistance and tire puncture performance
Stable operation, low noise, suitable for various installation environments
Surface-mounted type requires no road excavation and can be used directly on the ground
Equipped with emergency anti-terrorism and fire linkage functions, vehicle detection protection including license plate recognition, infrared detection, radar, loop detector, realizing unmanned intelligent management
Manual lifting available in case of power failure
One-piece formed panel without welding, aesthetic, firm and pressure-resistant
Surface treated with high-grade anti-rust paint and equipped with engineering-grade reflective tape for attractive appearance and warning effect
Configuration Options
Thickness: 16mm, 20mm, 25mm
