Hydraulic Rising Road Blocker KT‑DX18
Technical Parameters
Interception Width: 800 mm – 5700 mm
Rising Height: 500 mm – 600 mm
Panel Thickness: 16 mm / 20 mm / 25 mm
Panel Material: A3 Steel
Lifting Speed: 2S ~ 4S

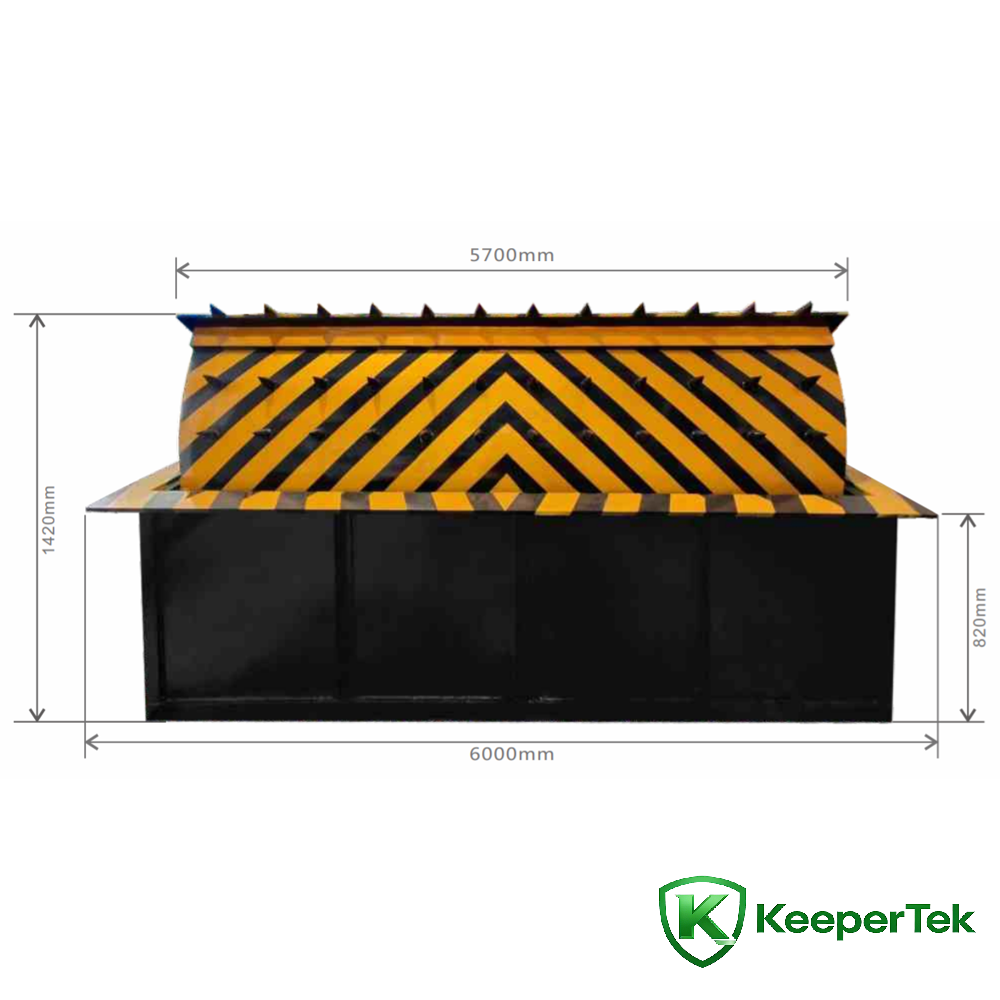

Unit Size: 6000 mm (L) × 1000 mm (W) × 820 mm (H) (customizable)
Waterproof Rating: IP68
Operating Temperature: -35℃ ~ 75℃
Control System: Electric + Hydraulic
Voltage & Power: 220V~380V / 3.7KW
LED Warning Light: Optional, for better visibility and appearance at night
Emergency Function: Equipped with EPS Emergency Power Supply & One-key Lowering
Control Mode: Control Box / Wireless Remote Control
Stainless Steel Structure: 30 mm × 60 mm (customizable)
Linkage Function: Compatible with barrier gate, traffic light, AB door, alarm system, etc.
Features
The whole structure consists of base, turning body, hydraulic power system and electric control system.
Brand-new structural design, sturdy and durable, high load-bearing capacity, compact structure with thick materials, greatly improving pressure resistance and anti-collision performance.
Stable movement, low noise, adaptable to various working environments.
Split-type hydraulic design for easy ground maintenance.
MCU-based control box for stable, reliable performance and easy integration.
Equipped with emergency anti-terrorism and fire linkage functions, with vehicle detection and protection functions including license plate recognition, infrared detection, radar, loop detector, etc., enabling unmanned intelligent management.
Supports manual lifting in case of power failure.
One-piece formed panel without welding, beautiful, firm and anti-collision.
Surface treated with high-grade anti-rust paint and equipped with engineering-grade reflective stickers for aesthetic and warning effects.
Configuration Options
Thickness: 16 mm, 20 mm, 25 mm
