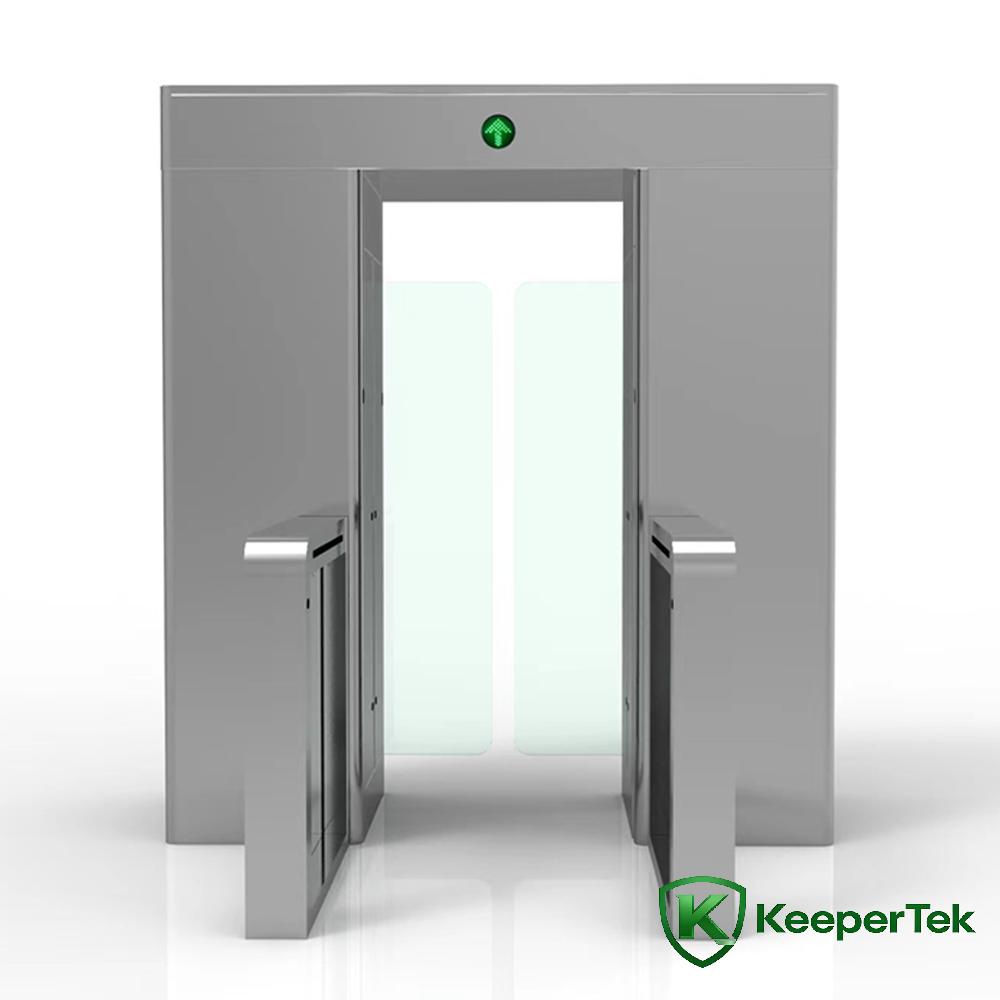

Sliding Gate Single-Gate KT-JSDQG05
Technical Parameters
Turnstile Composition: Cabinet, movement, control board and power supply
Turnstile Operation Direction: One-way / Two-way
Movement Drive Mode: DC brushless motor
Gate Opening Time: 0.5s
Power Input: AC220V±10%, 50Hz±4%, which automatically converts to the gate's working voltage of DC24V and DC12V
Input Interface: Dry contact signal, 12V level signal or 12V pulse signal with a pulse width ≥100ms
Communication Interface: Rs485 (distance ≤1200 meters), TCP/IP (optional)
Baffle Material: Acrylic or stainless steel
Infrared Sensors: 6 pairs as standard (can be increased)
Operating Temperature: -10℃～60℃, relative humidity 5%~95%, non-condensing
External Devices: IC card reader, ID card reader, code scanning module, face module, fingerprint module. (External devices need to be customized)
Working Environment: Indoor, outdoor
Service Life: More than 8 million continuous openings and closings
Cabinet Dimensions: 2660×1600×2000mm
