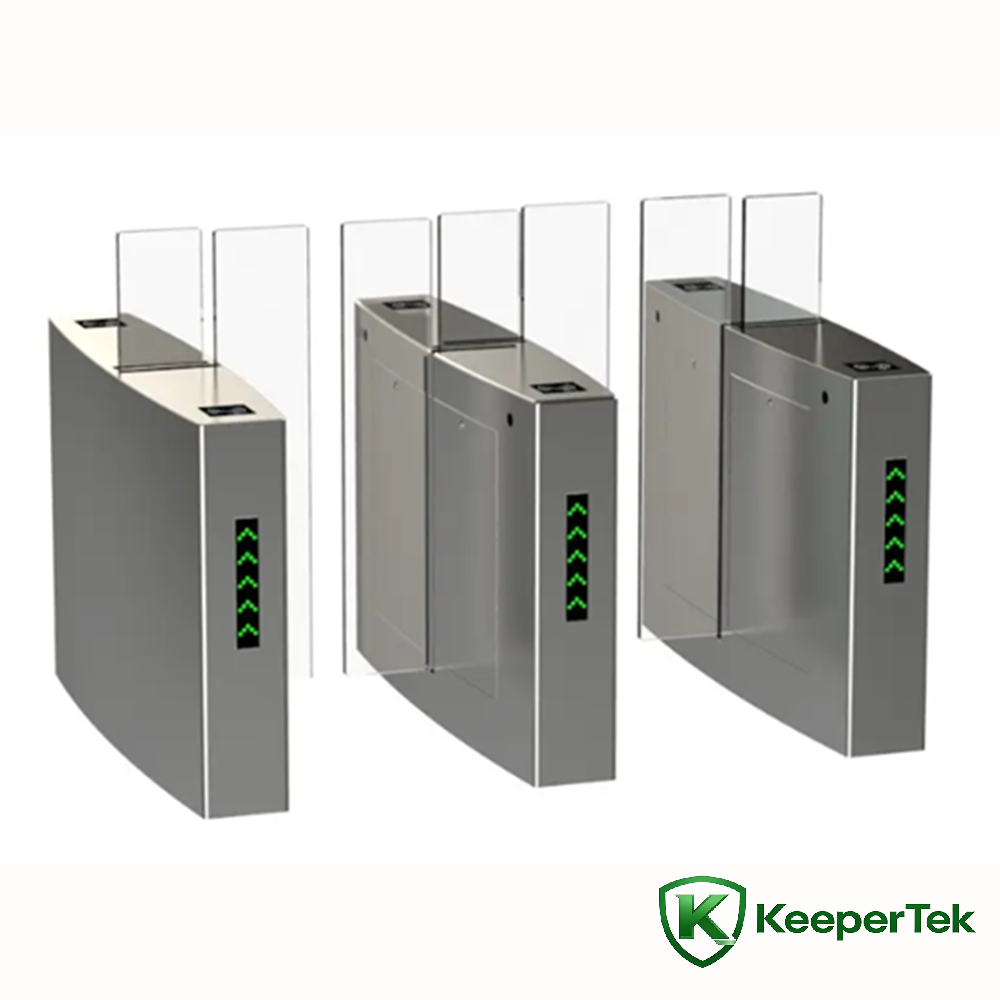

Sliding Gate Turnstile Kt-JSDP01
Technical Parameters
Turnstile Composition: Cabinet, movement, control board and power supply
Turnstile Operation Direction: One-way / Two-way
Movement Drive Mode: DC brushed motor
Gate Opening Time: 0.5s
Power Input: AC220V±10%, 50Hz±4%, automatically converted to DC24V and DC12V for turnstile operation
Input Interface: Dry contact signal, 12V level signal or 12V pulse signal with pulse width ≥100ms
Communication Interface: RS485 (distance ≤1200m), TCP/IP (optional)
Baffle Material: Acrylic or stainless steel
Infrared Sensors: 4 pairs as standard (expandable)
Operating Temperature: -10℃～60℃, relative humidity 5%~95%, non-condensing
External Devices: IC card reader, ID card reader, QR code scanner, face recognition module, fingerprint module (customization required)
Working Environment: Indoor, outdoor
Service Life: More than 3 million continuous opening and closing cycles
Cabinet Dimensions: 1400×300×980MM
