24V Low-Voltage Pure Electric Rising Bollard KT‑DX08

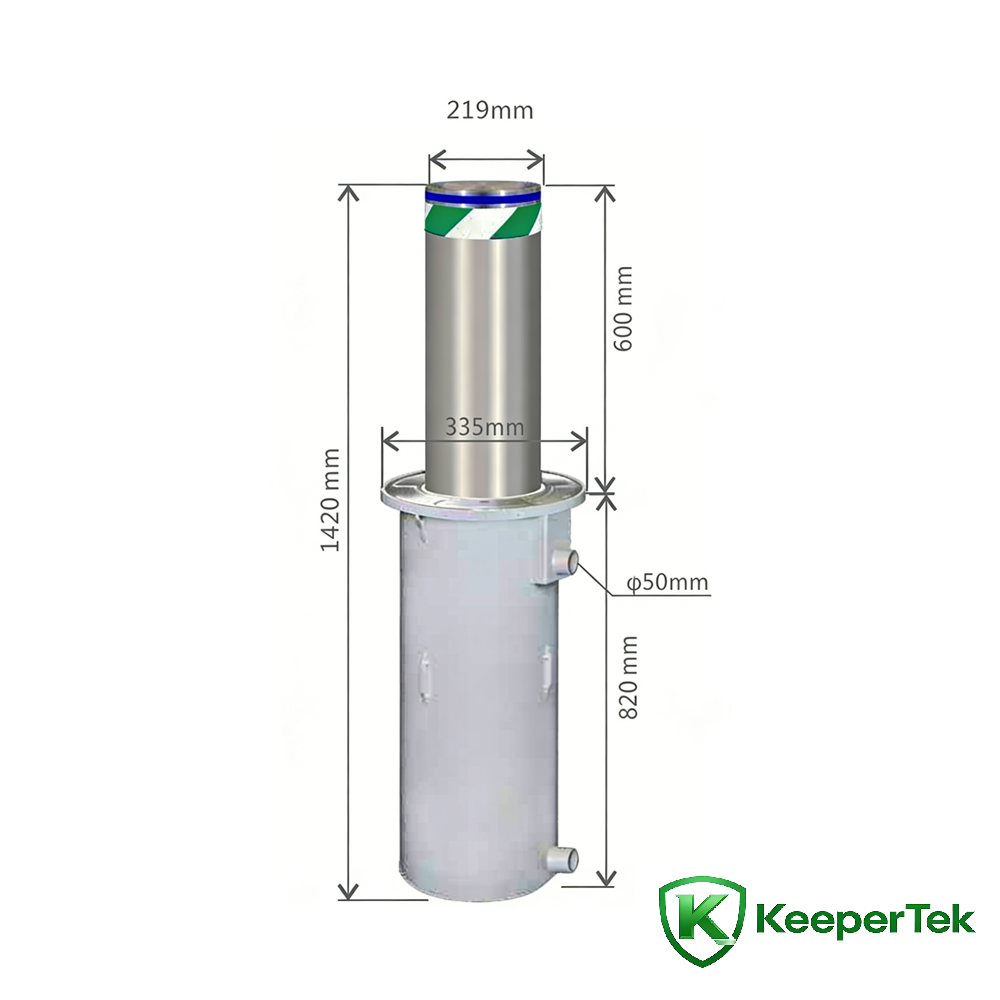

Technical Parameters
Column Diameter: 219 mm
Column Height: 600 mm
Column Thickness: 6 mm
Column Material: 304 Stainless Steel
Lifting Speed: 6S ~ 13S
Embedded Tank: Diameter 395 mm × Depth 820 mm
Waterproof Rating: IP68
Operating Temperature: -35℃ ~ 75℃
Flange Specification: 395 mm × 10 mm
Power Supply Voltage: 24V
Power: 200W
Warning Indicator: Ultra-bright Reflective Film, LED Light
Emergency Function: Equipped with EPS Emergency Power Supply & One-key Lowering
Control Mode: Control Box (1 control 10), Wired Control, Wireless Remote Control
Expansion Function: License Plate Recognition / Fire Alarm / Access Control System Linkage
Features
DC 24V pure electric drive, safe voltage.
Simple wiring: only one control cable for a control box and a group of bollards, saving cable cost.
Can be connected to 24V UPS to control lifting and lowering.
IP68 waterproof, can work normally even when submerged in water.
Sturdy and durable structure with large load capacity.
Equipped with 5 cm wide reflective film with reflectivity over 90%.
Optional high-brightness LED warning light strip for effective night warning.
Panel flange with anti-slip design; flange thickness optional: 10 mm / 6 mm.
Top flange thickness: 10 mm / 6 mm.
Non-standard customization available for diameter, thickness, height, appearance, lifting speed, etc.
Configuration Options
Height: 400 mm, 800 mm, 1000 mm, 1200 mm, 1500 mm
Thickness: 8 mm, 10 mm, 12 mm, 16 mm, 20 mm
Diameter: 168 mm, 273 mm, 325 mm, others
