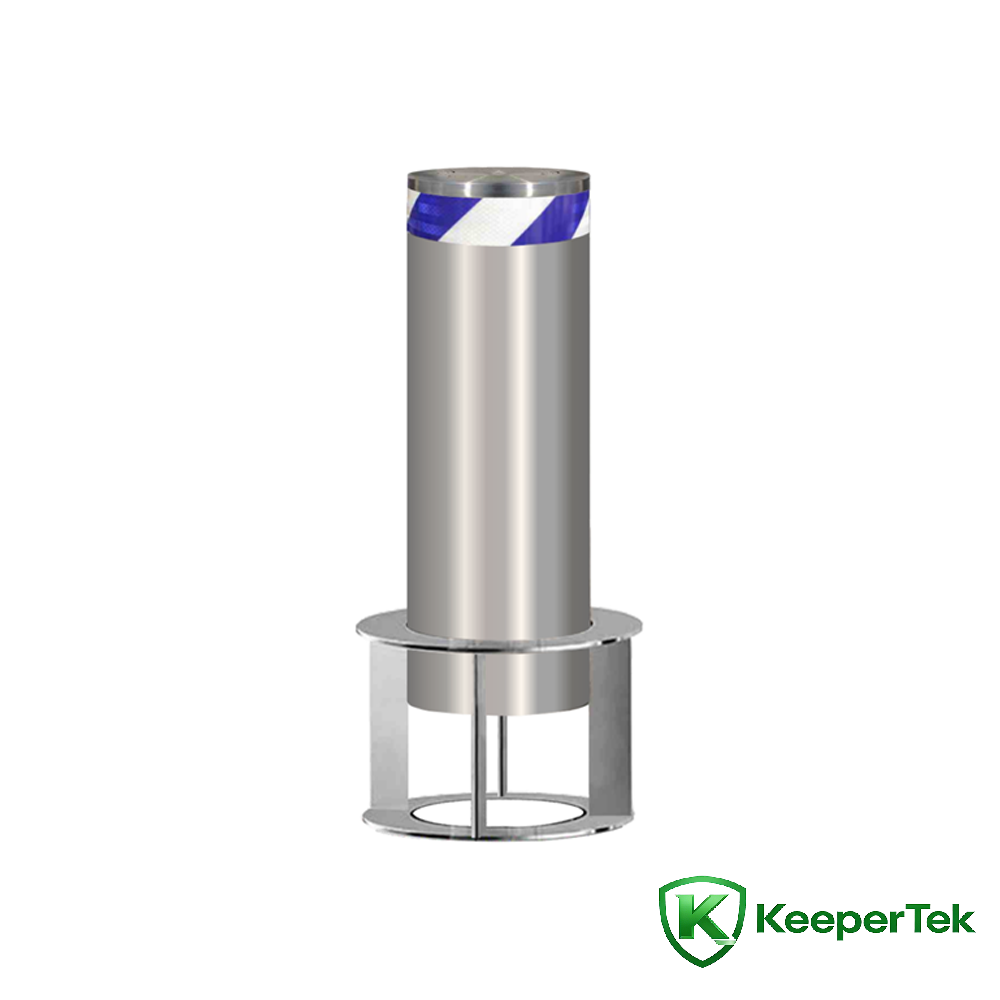

Fixed Anti-Riot Bollard KT‑DX07

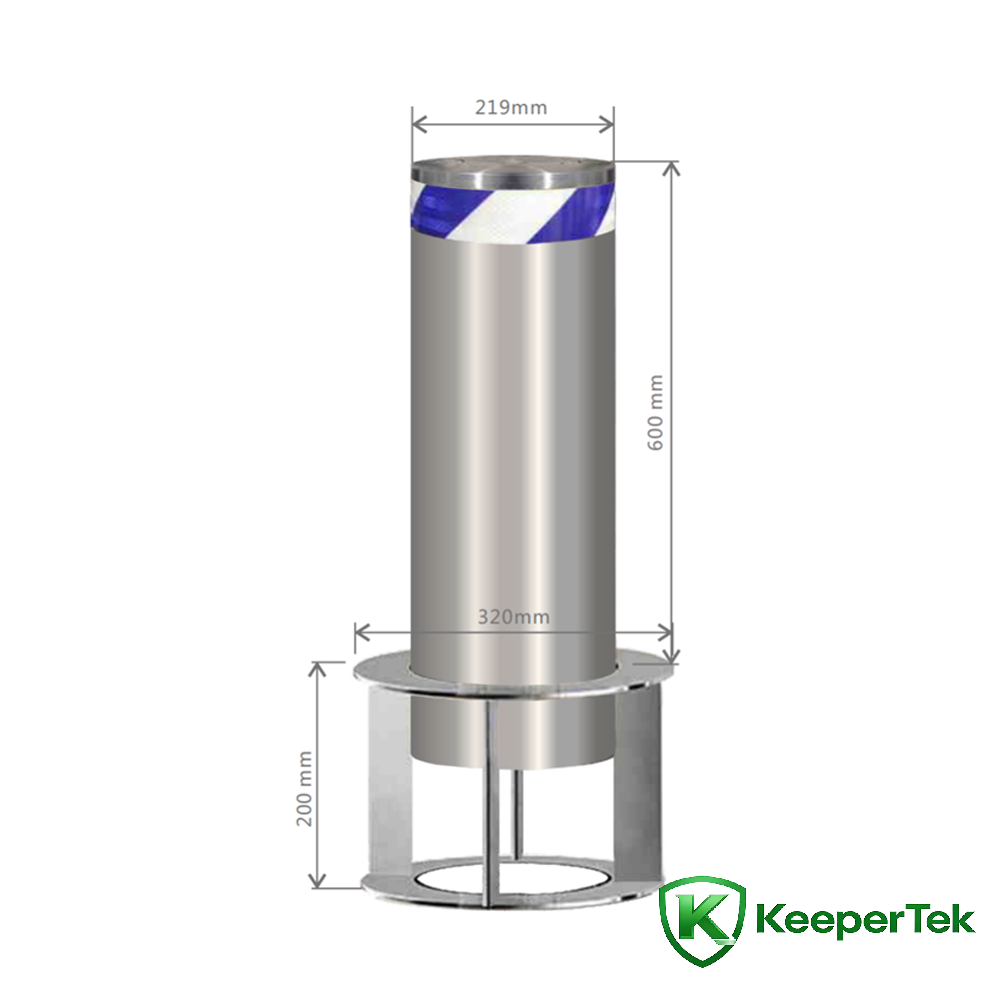

Technical Parameters
Column Diameter: 219 mm
Column Height: 600 mm
Column Thickness: 6 mm
Column Material: 304 Stainless Steel
Embedded Tank Specification: 320 mm × 320 mm × 200 mm
Waterproof Rating: IP68
Operating Temperature: -35℃ ~ 75℃
Flange Specification: Flange Diameter 320 mm × Thickness 6 mm
Warning Indicator: Ultra-bright Reflective Film
Features
Can be equipped with LED light strips with power supply, or used without light strips and power.
Equipped with 5 cm wide reflective film with reflectivity over 90%.
Panel flange thickness: 6 mm.
Top flange thickness: 6 mm.

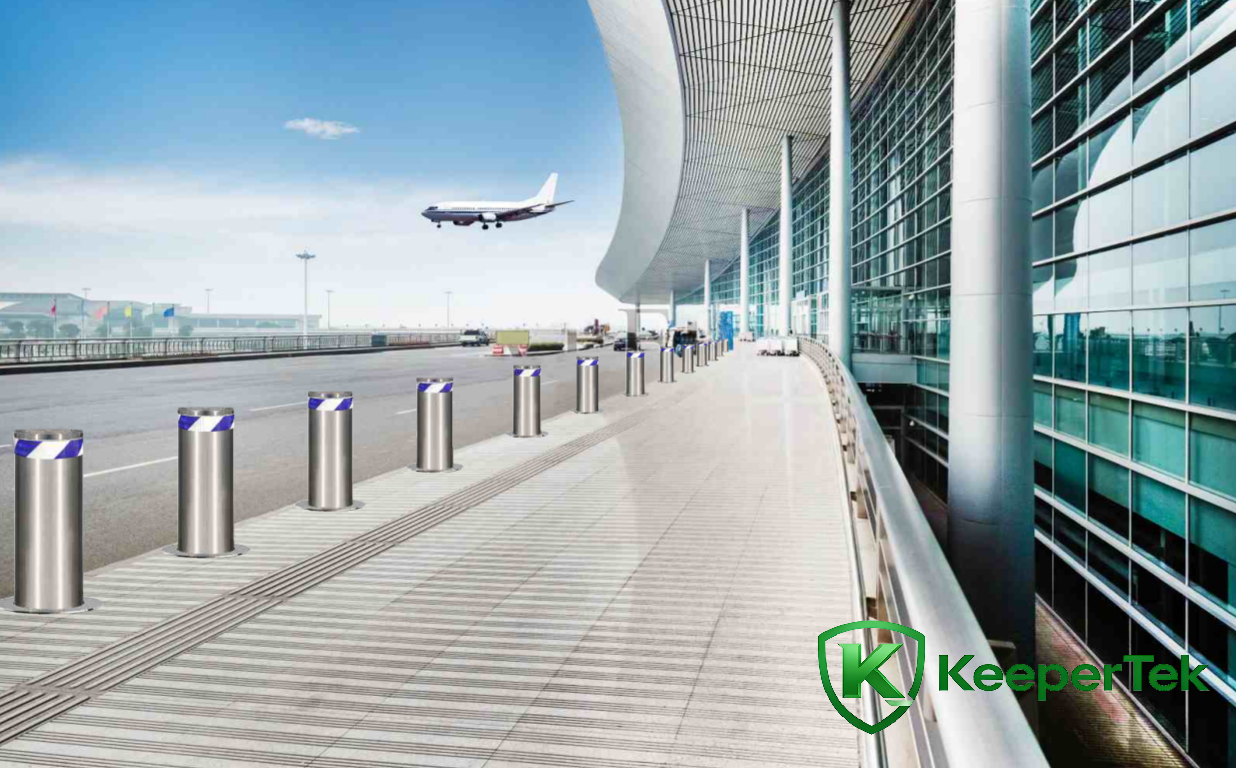

Fixed anti-collision bollard with low installation cost, non-removable; ideal for closed passages and isolated areas.
Top flange supports customized patterns, OEM, etc.
Non-standard customization is available.
Configuration Options
Height: 400 mm, 800 mm, 1000 mm, 1200 mm, 1500 mm
Thickness: 8 mm, 10 mm, 12 mm, 16 mm, 20 mm
Diameter: 168 mm, 273 mm, 325 mm, others
