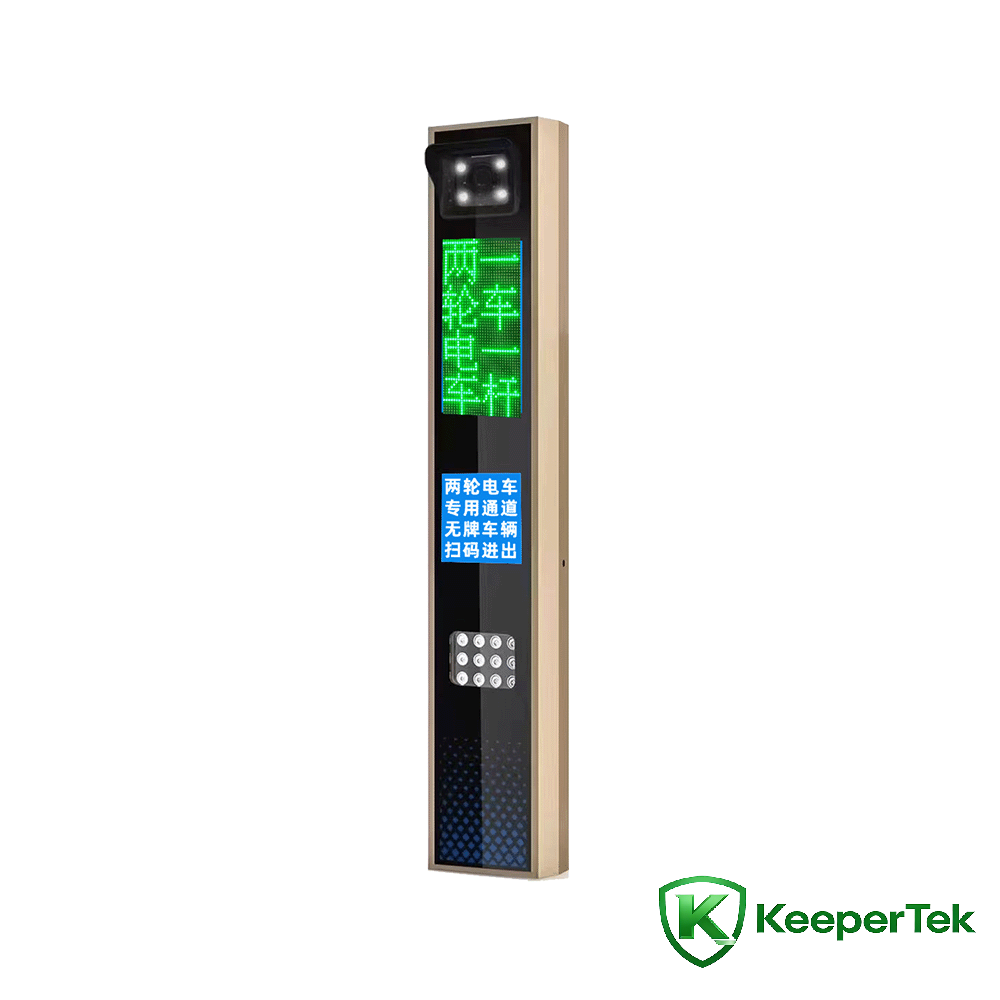

UHF RFID & License Plate Recognition All-in-One Machine / LED Screen KT-ZYSB35
Technical Specifications of UHF RFID & License
Card Reader - Tag Protocol: ISO18000-6B, EPC Class1 Gen2 (ISO18000-6C)
Antenna Interface: Integrated omnidirectional antenna, horizontal polarization
RF Frequency Band: UHF; supports China (920–925MHz), optional for Americas (902–928MHz) / Europe (865–868MHz) / other national bands
RF Mode: Fixed frequency mode / broadband frequency hopping
Reading Range: Up to 3 meters, depending on environment and electronic tags
RF Output: Below 32dBm, compliant with radio regulations
Supported Interfaces: MQTT, RS485, Wiegand
TCP/IP Communication: 1 channel
RS485 Communication: 1 channel
Wiegand Communication: 1 channel, input/output configurable via jumper
Gate Opening Signal: 2 channels
Supported Devices: Barrier gates, advertising gates, turnstiles, retractable gates, rolling shutters, sliding gates, door locks, etc.
IO Input: 1 channel
Display: LED display screen
Voice Announcement: Supported
Operating Voltage: 12V DC
Operating Current: 500mA
Operating Temperature: -30～70℃
Operating Humidity: 15～95%
Product Dimensions: 1385×245×120mm
Technical Parameters of License Plate Recognition Camera
Recognition Algorithm
Capture Rate: ≥99.9%
Recognition Rate: ≥99.8%
Adaptive Vehicle Speed: 0–40 km/h
License Plate Types Supported: Ordinary blue plates, single/double-layer yellow plates, new energy plates, single/double-layer police plates, new armed police plates, single/double-layer military plates, new embassy plates, coach plates, Hong Kong & Macau plates entering mainland China, emergency plates, civil aviation plates, special plates, etc.
License Plate Recognition Features: License plate number, color, width, confidence level
License Plate Anti-Counterfeiting: Supports alarm for abnormal plates (mobile phone photos, printed copies), accuracy ≥95%
Unlicensed Vehicle Trigger: Supports video trigger for unlicensed vehicles, accuracy 95%
Vehicle Type Recognition: Supports recognition of 7 vehicle types (car, SUV, MPV, minibus, coach, light truck, heavy truck), accuracy 98%
License Plate Whitelist: Supports precise and intelligent fuzzy matching of whitelist license plate rules
Intelligent Calibration: Supports intelligent calibration of license plate number, type and color via precise or wildcard matching
Imaging
Basic Configuration: Built-in VZ intelligent ISP algorithm and intelligent optimized dimming algorithm, intelligent adaptation to complex scenes
Basic Parameters (brightness/contrast/saturation/sharpness/image flip/exposure time, etc.) can be set individually
Video Compression Standard: H.264/H.265
Video Resolution: 640×360, 704×576, 1280×720, 1920×1080, 2960×1664
Compressed Output Bit Rate: 512 Kbps ~ 5000 Kbps
Frame Rate: 1–25 fps, default 25 fps
Communication
Communication Protocols: SDK, ONVIF, HTTP, MQTT, RTSP, TCP/IP, UDP, RS485, NTP
FTP Image Upload: Supported, upload captured images to server via FTP
VPN: Supports virtual private network setup via OpenVPN
HTTP Push: Supported, upload recognition results and offline retransmission
MQTT Push: Supported, upload recognition results and offline retransmission
Dynamic Domain Name: Supports docking with 3322 dynamic domain name service
UPNP Port Mapping: Supported, automatic mapping of HTTP/RTSP communication ports
Networking
Standalone Networking: Automatically forms an operational network between cameras without host computer or server
Parking Lot Management: Supports creation of multiple parking lots and scenario-based management of multiple cameras
Whitelist: Works with policies to fulfill hierarchical vehicle management
Linkage Management: Up to 3 auxiliary cameras (including license plate cameras and lane monitoring cameras) can be added to one main device
Management
Management Protocol: PC/mobile management, PC management tool, SDK development kit, HTTP push
Cloud Management: Remote management of a single camera; centralized management of multiple cameras via account; supports cloud SDK development and management platform
Imaging
Sensor: 5MP high-performance CIS
Resolution: 2960(H) × 1664(V)
Low Illumination: 0.1 LUX color (with white light supplement)
Electronic Shutter: 0–1 ms or customizable
Lens: Standard 6 mm fixed focal lens
Interface: M12
Image Specifications
Image Settings: Brightness, contrast, saturation, image flip, exposure time, etc.
Noise Reduction: Supports 2D/3D noise reduction
Wide Dynamic Range: Supported
Interfaces & Buttons
Network Interface: 1×10/100 Mbps adaptive RJ45 port
IO Output: 2 channels
IO Input: 2 channels
RS485: 1 channel
TF Card Slot: 1×TF card slot, supports up to 256 GB
Reset Key: 1×Reset button
System Indicator
System Light: Flashing indicates normal system operation; steady on or off indicates booting or abnormality
Reliability Specifications
Temperature: Operating temperature: -30℃ ~ 70℃
ESD: Contact 6 KV, air 8 KV
Surge: 10/70 μs common mode 4 KV, differential mode 2 KV; 8/20 μs common mode 2 KV, differential mode 2 KV
Vibration Resistance: Complies with national standards
Power Supply: 12 V DC
Power Consumption: ≤3 W
Protection: IP65
