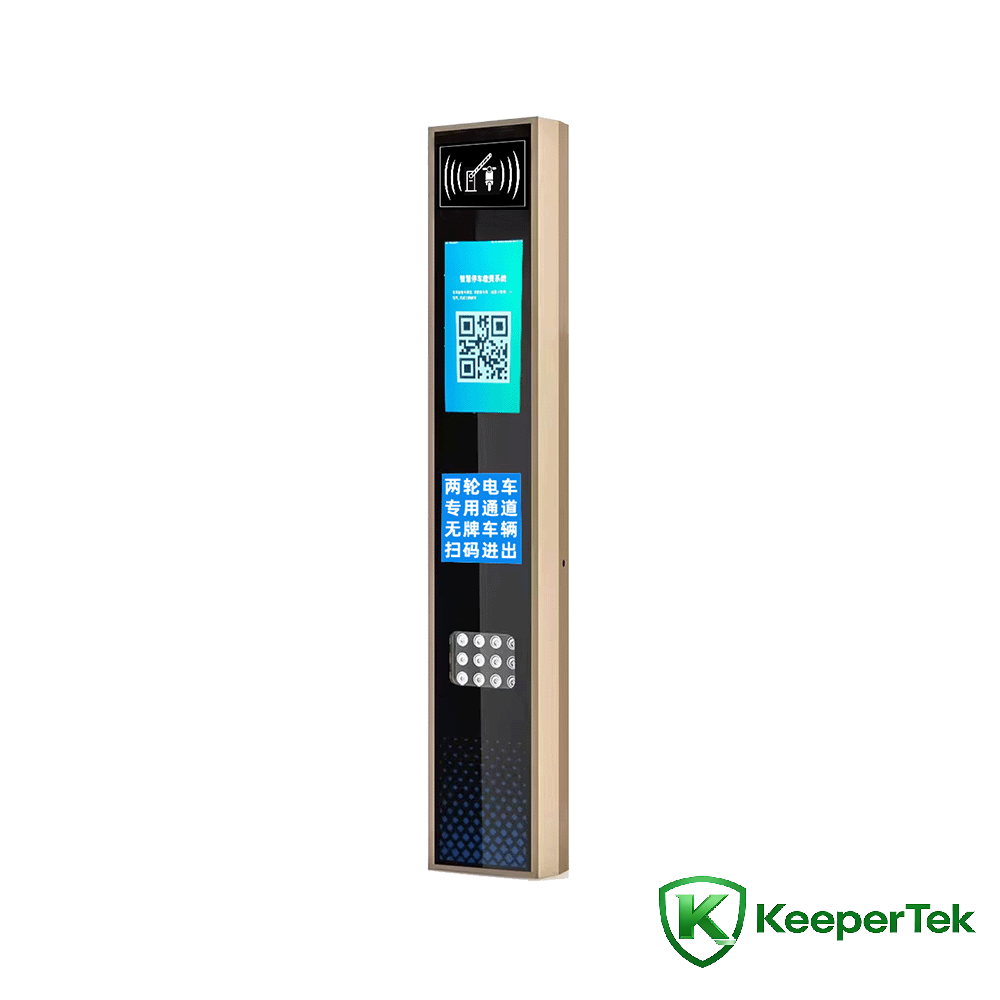

UHF RFID Reader / LCD Display Screen KT-ZYSB34
Technical Specifications
Card Reader - Tag Protocol: ISO18000-6B, EPC Class1 Gen2 (ISO18000-6C)
Antenna Interface: Integrated omnidirectional antenna, horizontal polarization
RF Frequency Band: UHF; supports China (920–925MHz), optional for Americas (902–928MHz) / Europe (865–868MHz) / other national bands
RF Mode: Fixed frequency mode / broadband frequency hopping
Reading Range: Up to 3 meters, depending on environment and electronic tags
RF Output: Below 32dBm, compliant with radio regulations
Supported Interfaces: MQTT, RS485, Wiegand
TCP/IP Communication: 1 channel
RS485 Communication: 1 channel
Wiegand Communication: 1 channel, input/output configurable via jumper
Gate Opening Signal: 2 channels
Supported Devices: Barrier gates, advertising gates, turnstiles, retractable gates, rolling shutters, sliding gates, door locks, etc.
IO Input: 1 channel
Display: 10.1-inch LCD display screen (large screen expandable)
Voice Announcement: Supported
Operating Voltage: 12V DC
Operating Current: 500mA
Operating Temperature: -30～70℃
Operating Humidity: 15～95%
Product Dimensions: 1385×245×120mm
