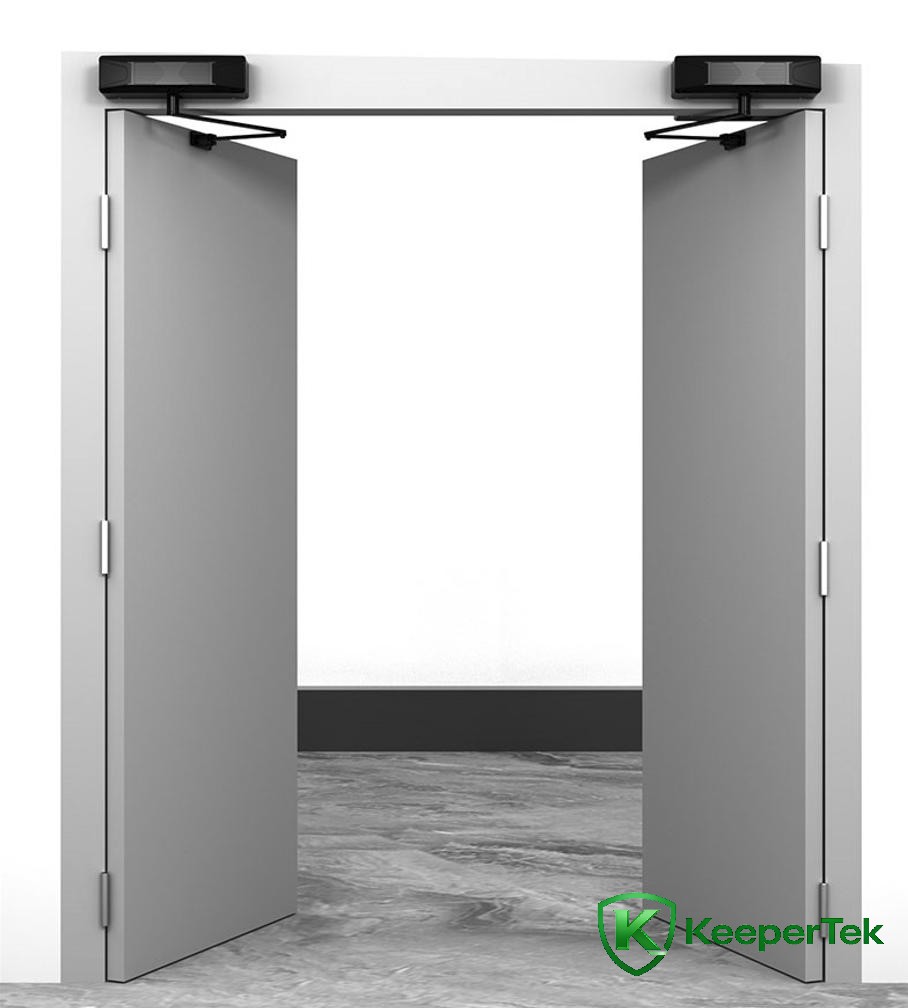

Horizontal-Mounted Door Operator (Crank Slide Rail) KT-EDO003
Technical Parameters
Drive Mode: Crank Slide Rail drive
Supply Voltage: 220VAC±15% 50Hz
Motor Operating Voltage: 24VDC
Motor Power: 30W
Rated Torque: 34Nm
Angular Velocity: 40.75°/s
Maximum Opening Angle: ±90°
Maximum Door Width: 2m (single leaf)
Motor Thermal Protection: Class F 155℃
Operating Frequency: Continuous use below 70℃
Operating Ambient Temperature: -25℃ to 70℃
Application Environment: Indoor or sheltered outdoor use
Operating Noise: ≤60dB
Temperature Rise: ≤15℃
Package Weight: 5.3kg
Unit Dimensions (LWD): 330×85×84.4mm
Package Dimensions: 530×180×110mm
Mounting Base Dimensions: 330×85mm
Functions & Features
WIFI or 4G connectivity supported
Adjustable obstacle detection & rebound
Opening delay adjustment
Opening angle self-learning function
Delayed opening function
Remote door locking function
Dual door interlocking function
Master & slave door operation function
Opening & closing speed adjustable
Electric door lock compatible
Bluetooth adjustment supported
Secondary development supported
