Video Parking Guidance System

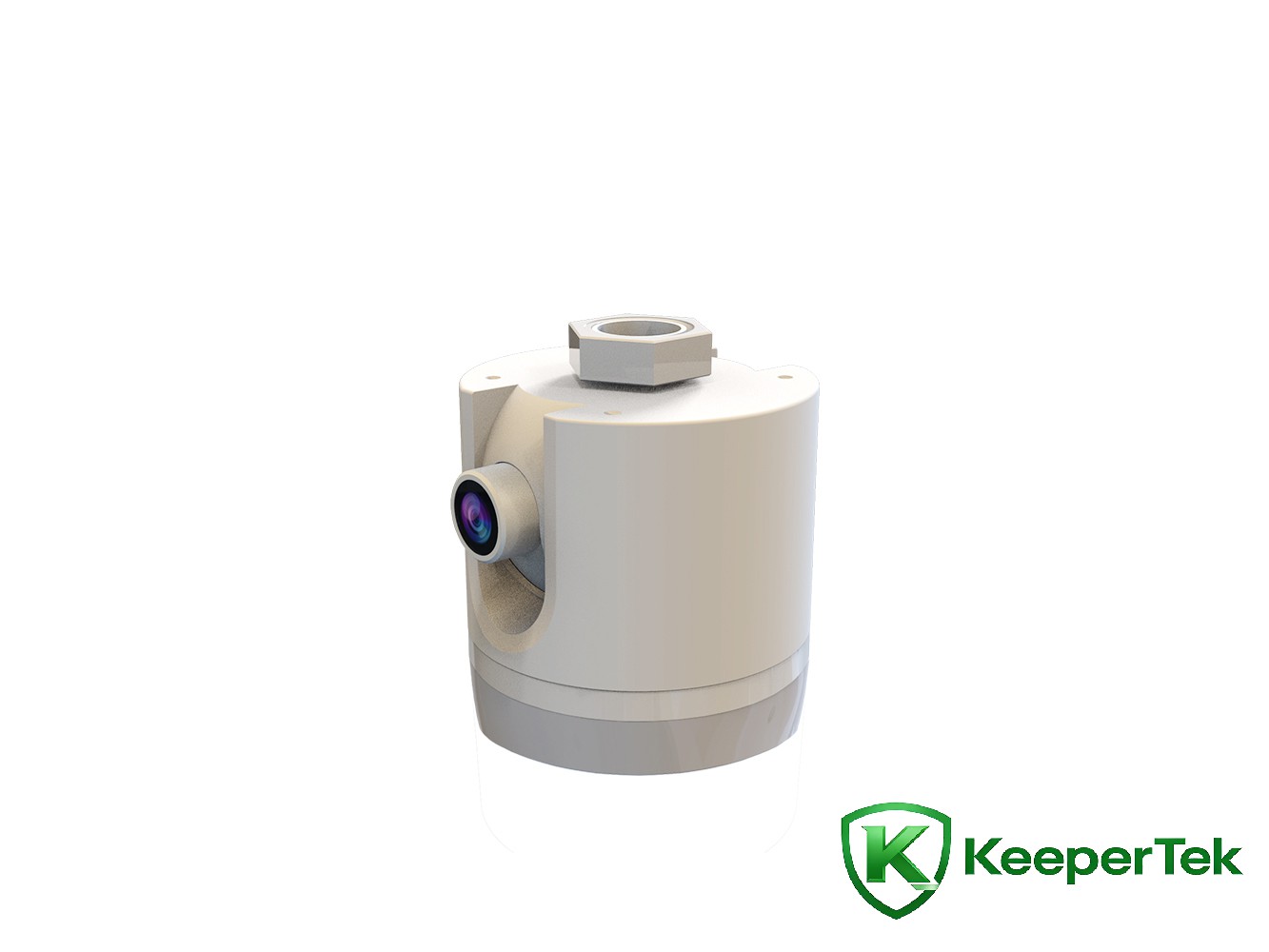

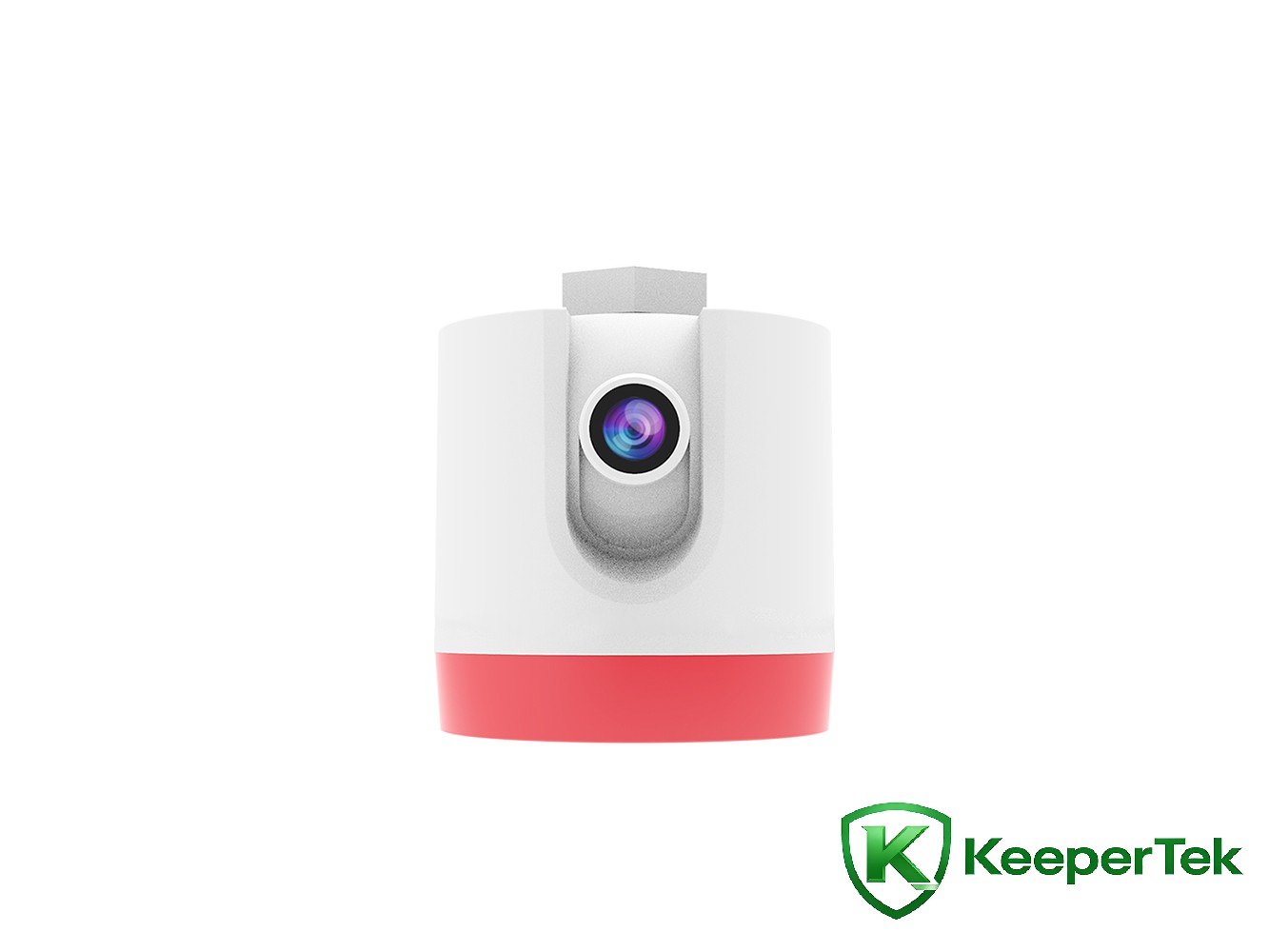

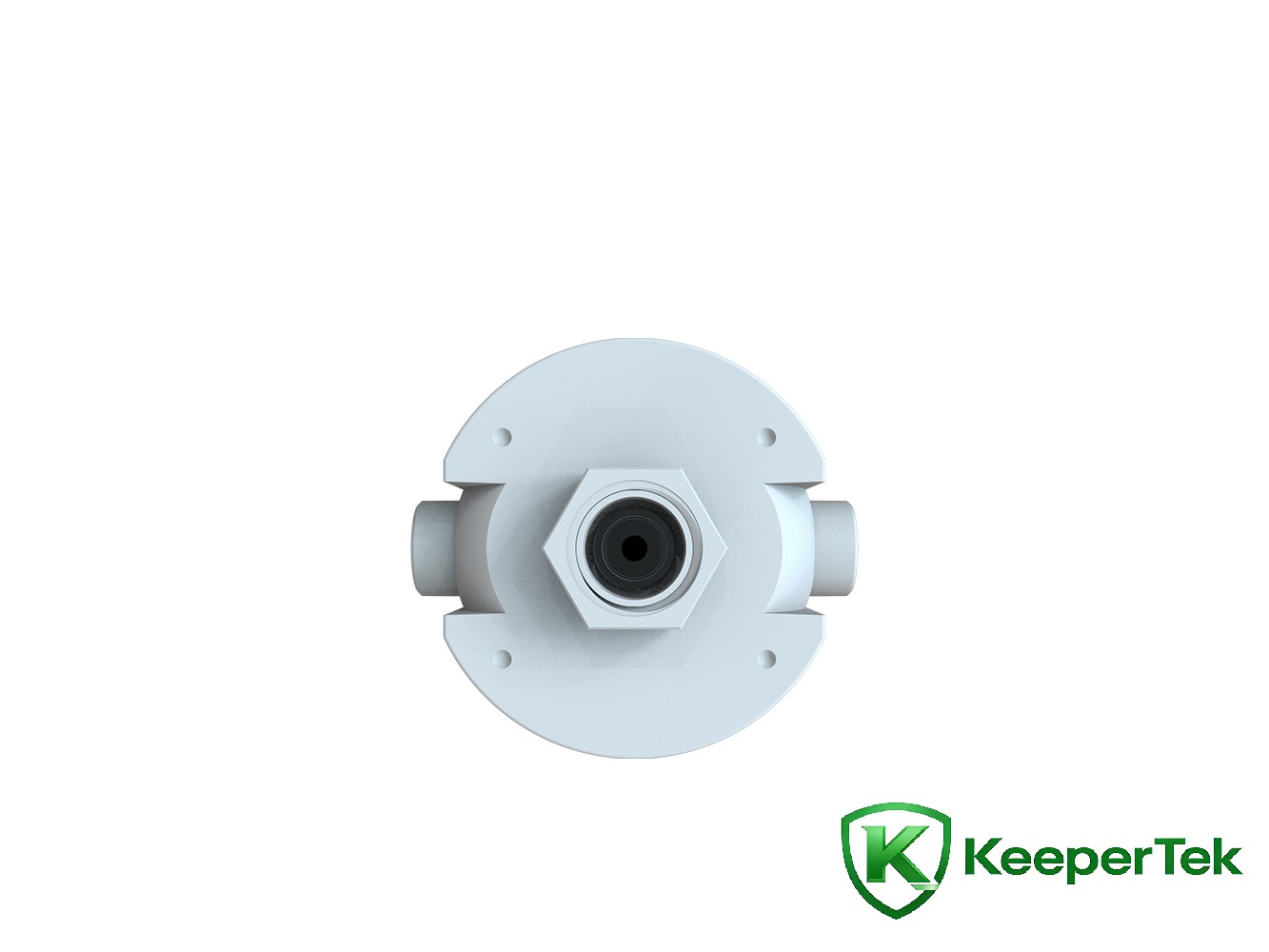

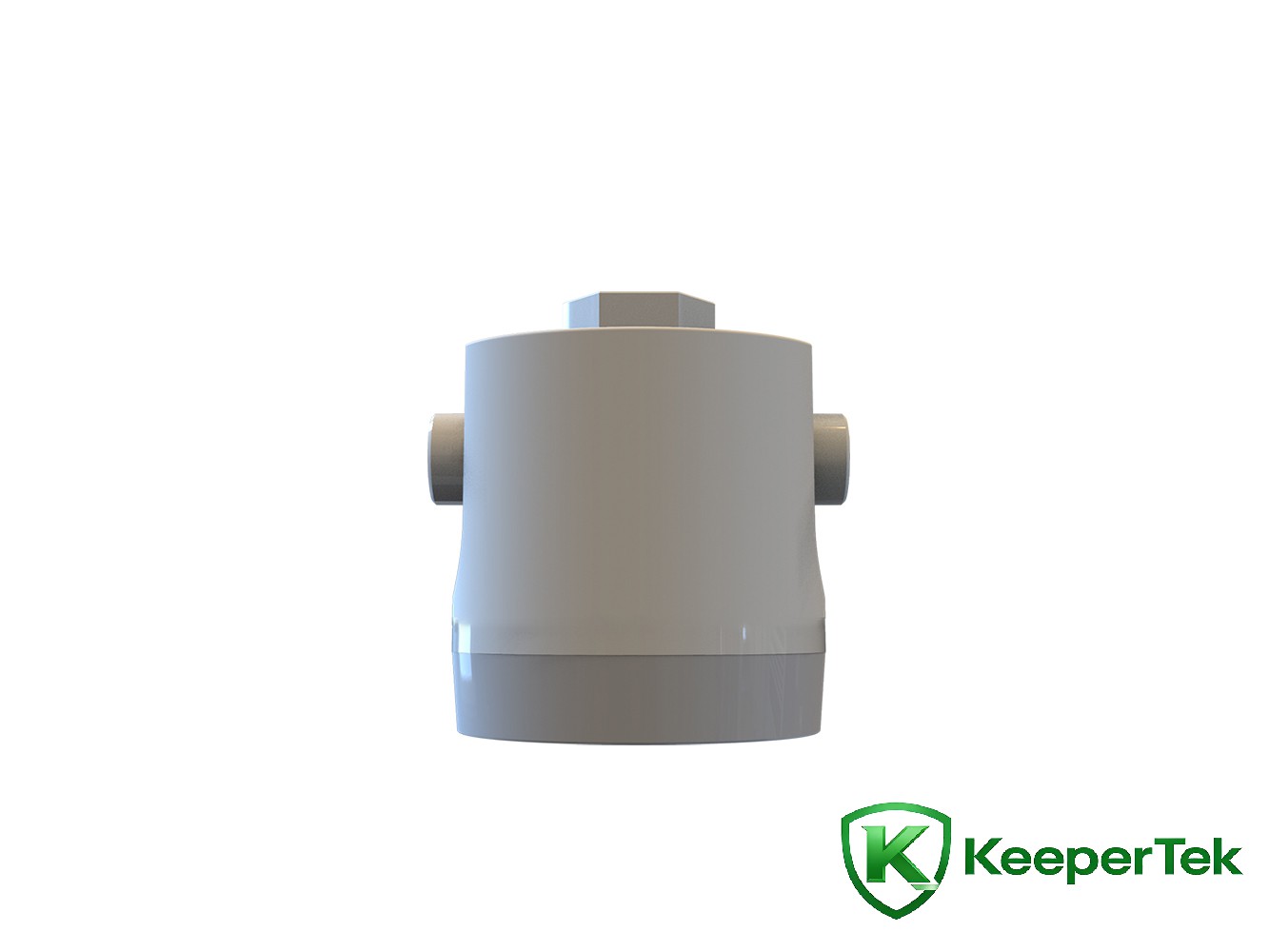

Video Detector for 6 Parking Spaces KT-WB02

Technical Parameters

Monitoring Quantity: Supports 2-6 parking spaces per unit

Pixels: 3 MP

Maximum Resolution: 2304*1296

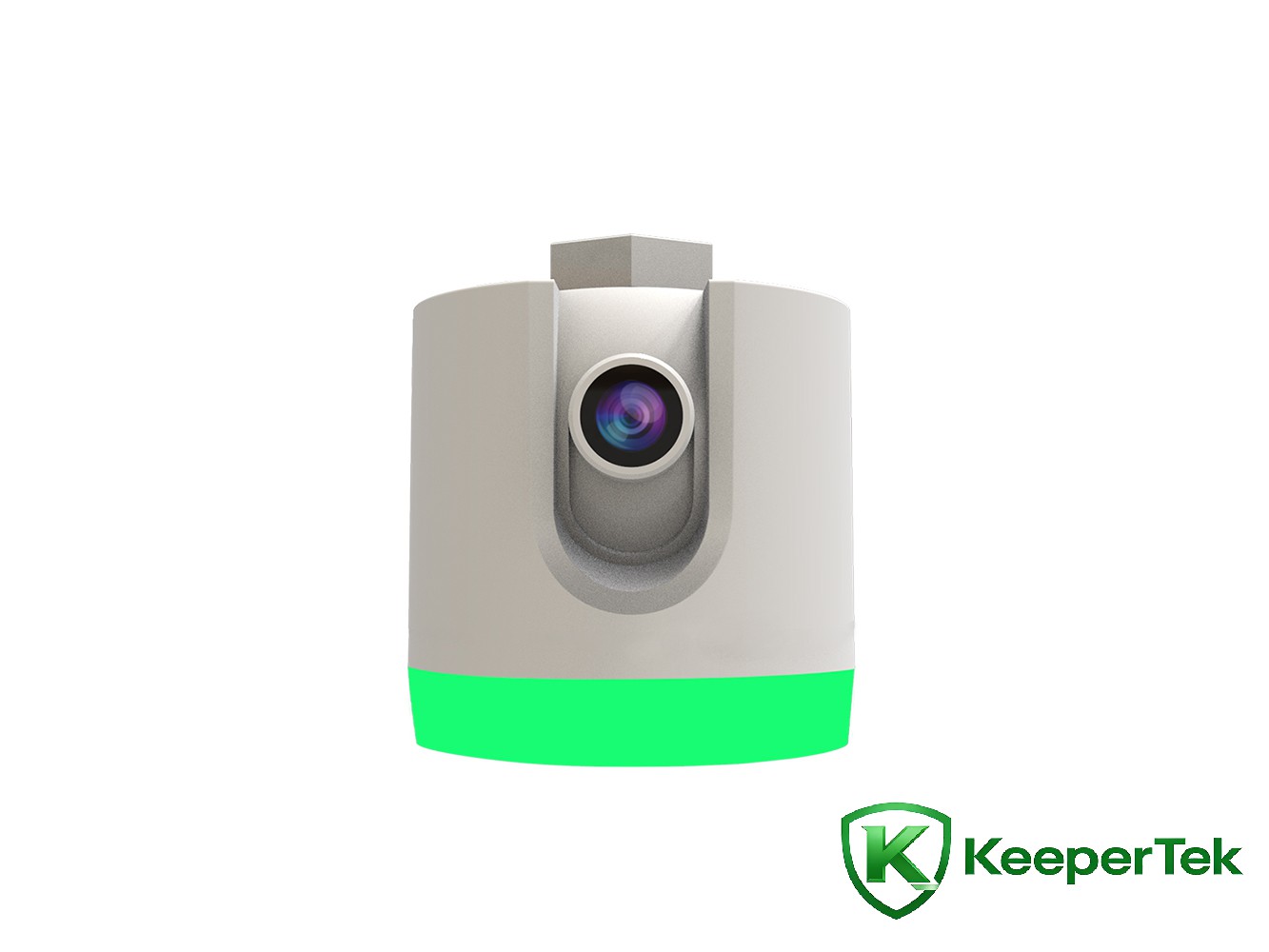

Indicator Light: Supports 7 colors (Red, Green, White, Yellow, Purple, Dark Blue, Light Blue)

External Indicator Light: Not Supported

DC Power Supply: Standard DC24V, supports wide voltage DC9~36V

Standard POE: Supports 802.3af standard PoE

Non-standard POE: With non-standard POE combiner, supports hand-in-hand camera connection

Temperature: Operating temperature: -20°C~65°C

Humidity: 10%~95% (non-condensing)

Event Light Prompt: Supports light prompts for events such as overline parking and vehicle occupancy

Bluetooth Reverse Car Finding: Supported, provides Bluetooth positioning

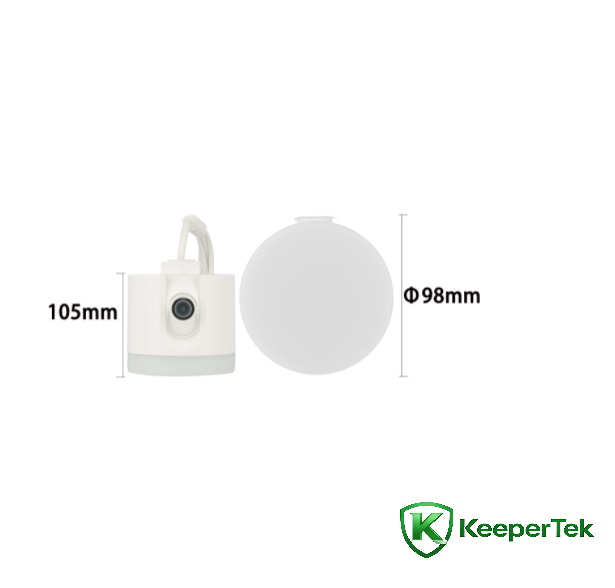

Product Size: Height 105 mm, Diameter 98 mm

Features

Supports multi-space detection, up to 2–6 parking spaces simultaneously.

Integrated design of detector and indicator light reduces installation cost.

Adopts 7-color LED lights, which can be customized for standard parking spaces, accessible parking spaces, ladies-only parking spaces, etc.

External lens allows adjustment of recognition angle without disassembly.

Supports illegal cross-line parking alarm; triggers alarm when a vehicle crosses the line.

Uses Ethernet hand-in-hand wiring to save construction cost.

Supports external indicator lights for independent status indication of each parking space.

Built-in Bluetooth beacon enables mobile phone-based reverse car finding.

Supports video recording for dispute resolution in case of accidents.

Recognizes multiple license plate types:

standard blue plates, single/double yellow plates, new energy plates, single/double police plates, new armed police plates, single/double military plates, new embassy plates, coach plates, emergency plates, civil aviation plates, special plates, etc.
