Geomagnetic Parking Guidance System

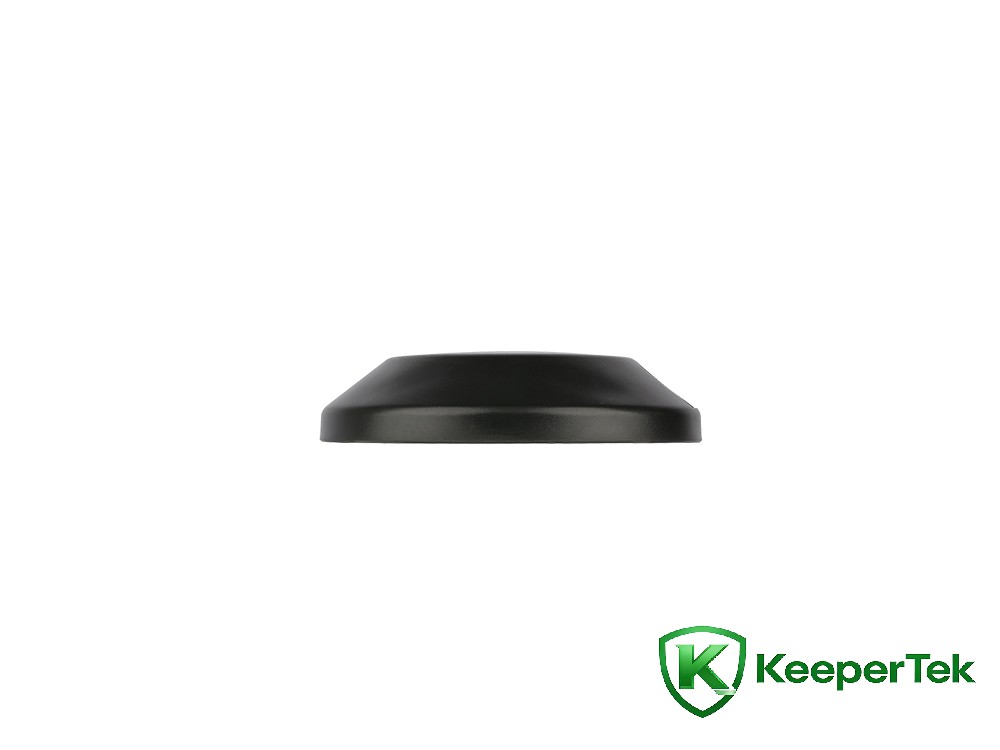

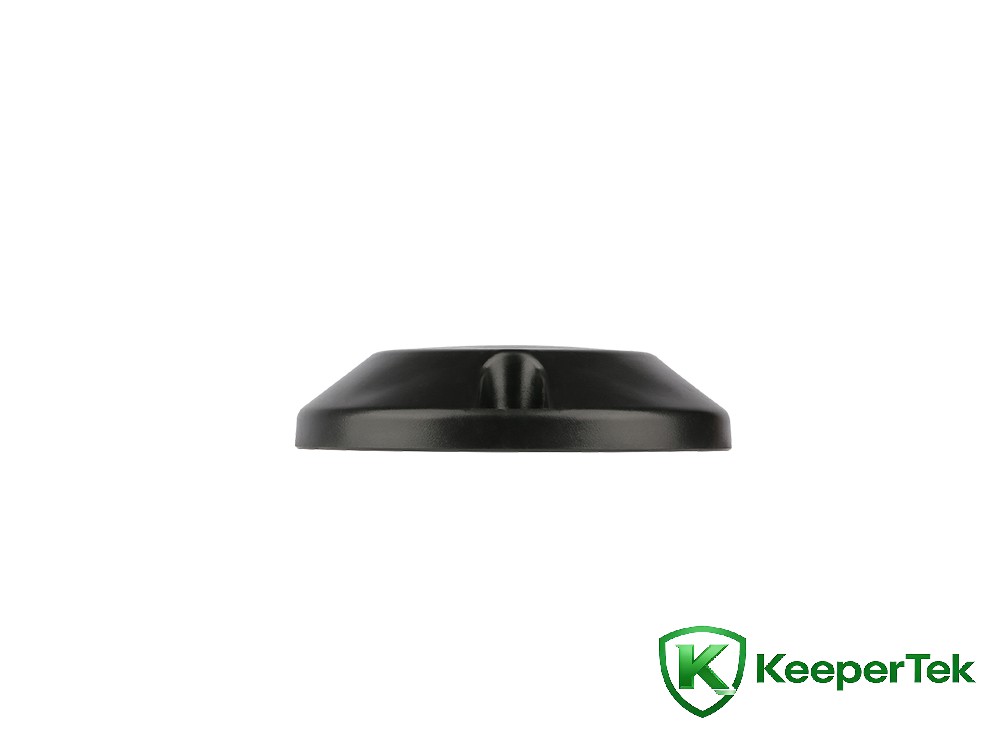

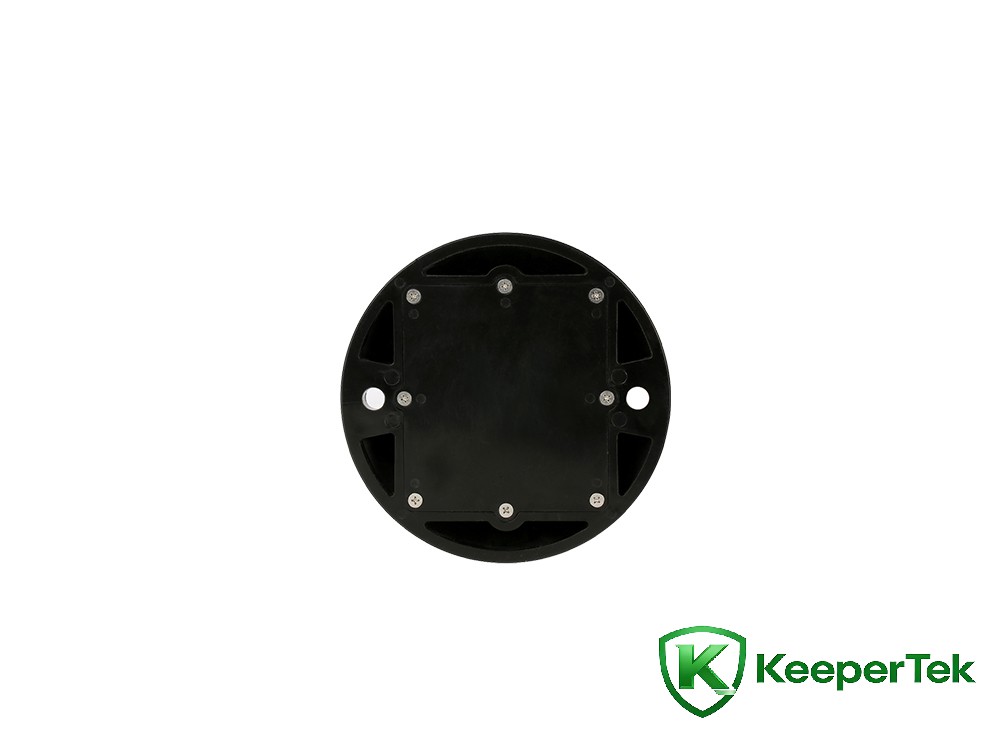

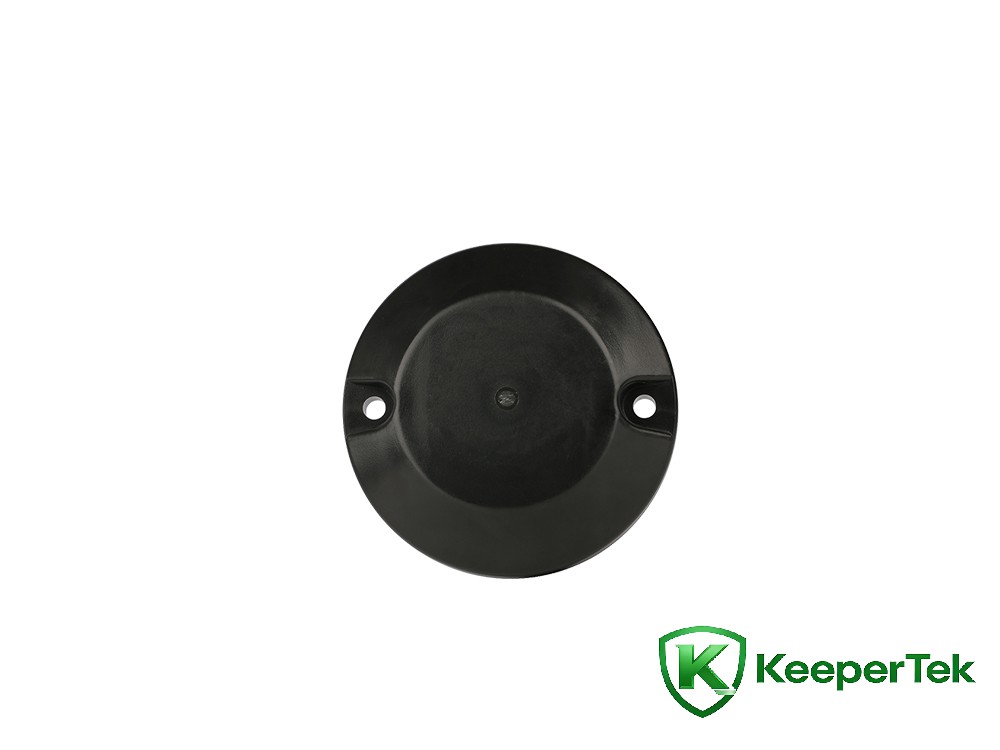

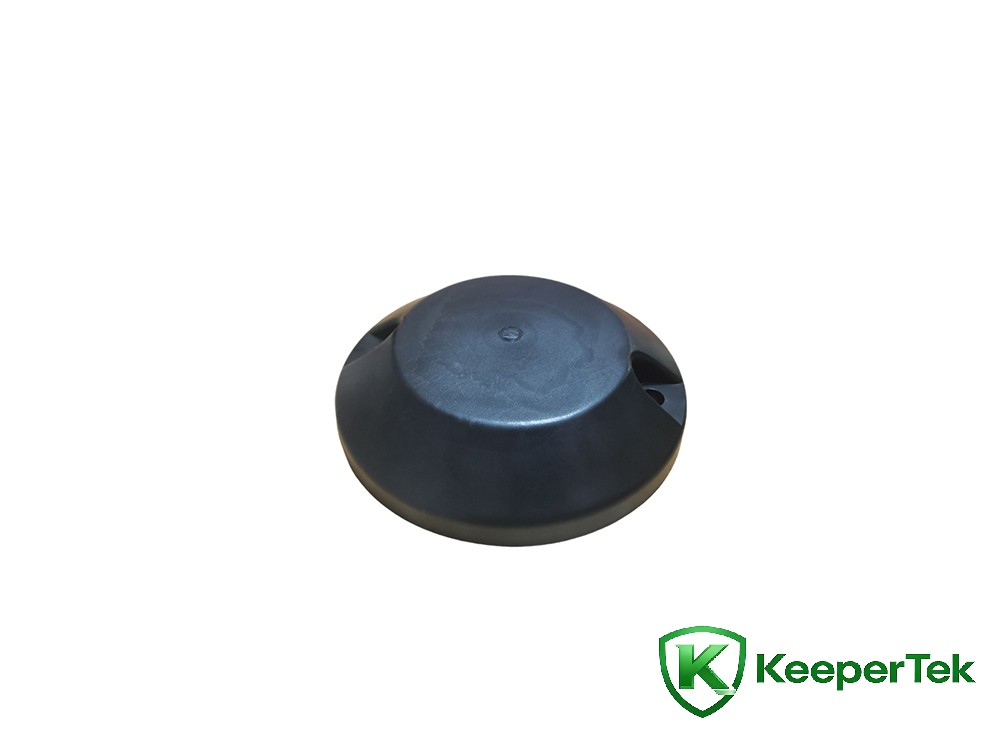

Dual-mode Geomagnetic Parking Space Detector (Surface-mounted LoRa) KT-WB10

Technical Parameters

Housing Material: Black PC + ABS

Communication: LoRa

Protection Grade: IP68

Net Weight: 560g

Installation: Surface-mounted

Operating Temperature: -30°C~75°C

Pressure Resistance: 20t

Wireless Upgrade: Supported

Two-way Communication: Supported

Battery Capacity: 18000mAH

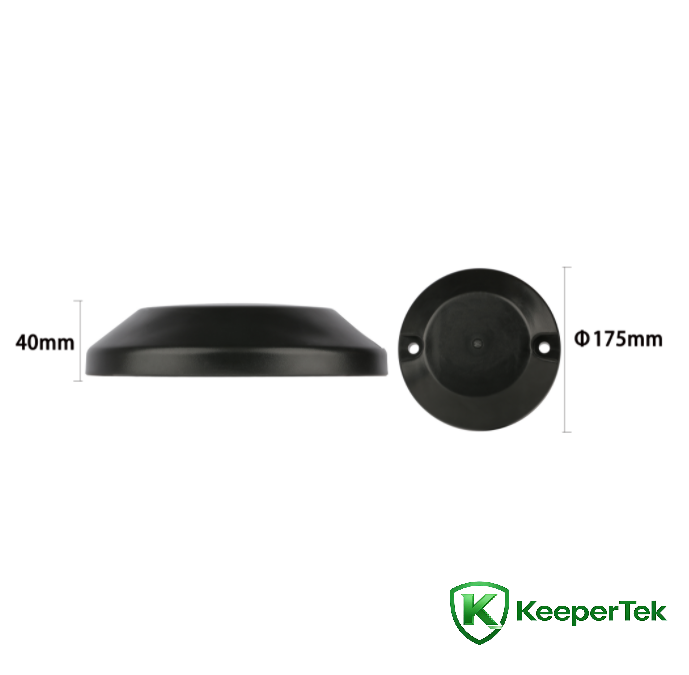

Product Size: Diameter 175*40mm

Features

Advanced recognition algorithm and anti-interference design, detection accuracy up to 99%+.

Installed on parking space with expansion bolts, no drilling required, low construction difficulty.

Smooth radian design, no sharp edges. Low-profile installation avoids tripping or bumping.

High-strength shell, pressure-resistant and anti-corrosion.

IP68 protection, effectively resists harsh outdoor environments.

Works in extreme temperatures (-30°C~75°C). Strong anti-interference against rain, snow, adjacent vehicles and magnetic interference.

Mobile APP Bluetooth debugging for easy and convenient operation and maintenance.
