Parking Guidance Configuration Tool KT-WB35
Technical Parameters
Material: ABS engineering plastic
Operating voltage: 5V
Power consumption: <1W
Operating temperature: -20°C~65°C
Net weight: 120g
Wireless upgrade: Supported

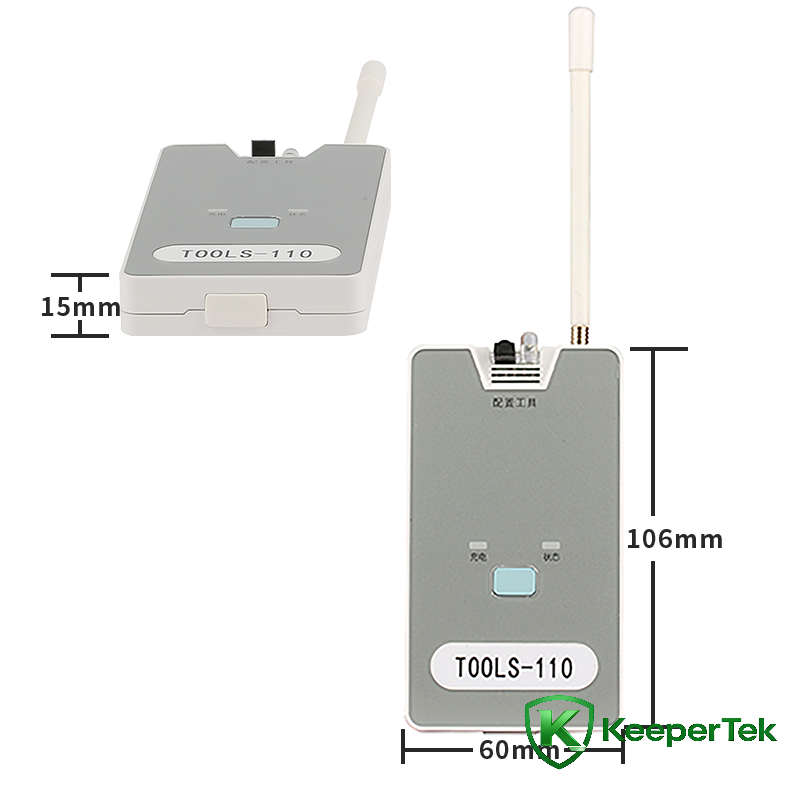

Dimensions: 60x106x15mm
Features
This configuration tool is a wireless device for configuring ultrasonic detectors (address, height, wireless channel). It supports three wireless communication modes: Bluetooth, LoRa and infrared.
It is mainly used to configure and debug wired ultrasonic / wireless floor-mounted ultrasonic sensors via infrared, eliminating the need for ladders or frames during debugging for traditional and mechanical parking guidance equipment.
Compact and portable, powered by built-in battery.
Silver-white shell with detachable antenna, high-tech appearance.
Bluetooth V4.0 for communication with mobile phones.
Standard on-site debugging, infrared distance up to 2 meters.
