Front-mounted Ultrasonic Parking Space Detector KT-WB05
Technical Parameters
Housing Material: Gray ABS engineering plastic
Operating Voltage: DC10~28V (Rated 24V)
Power Consumption: <1W
Operating Temperature: -20°C~65°C
Mounting Height: Vertical 2~3m (Recommended 2.2-2.8m)
Net Weight: 180g

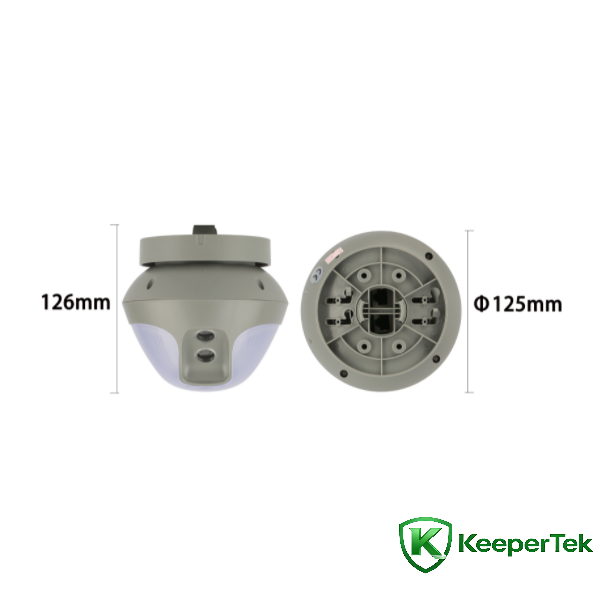

Product Size: Diameter 126*125mm
Features
Integrated design of parking detector and indicator light greatly reduces material and construction costs, and shortens construction period.
Parking status indicator uses high-brightness LED, low power consumption, long service life, wide viewing angle and long visible distance.
Dual independent ultrasonic transceiver circuits, large detection area, independent operation, improves service life and reliability.
Adopts advanced intelligent learning anti-interference algorithm to solve interference from adjacent lanes, nearby vehicles and opposite detection, detection accuracy over 99%.
Strictly tested for ESD, lightning surge, surge and group pulse to ensure reliable operation.
Installed on the bridge directly above the front of each parking space, effectively avoiding pillar obstruction, neat and beautiful installation.
7-color LED display, customizable indicator color for vacant spaces according to parking lot requirements.
Debug via mobile APP, automatic address superposition, one-click parameter configuration to improve efficiency.
Manufactured in accordance with ISO standards, 48-hour aging test, high product quality.
Supports remote upgrade.
