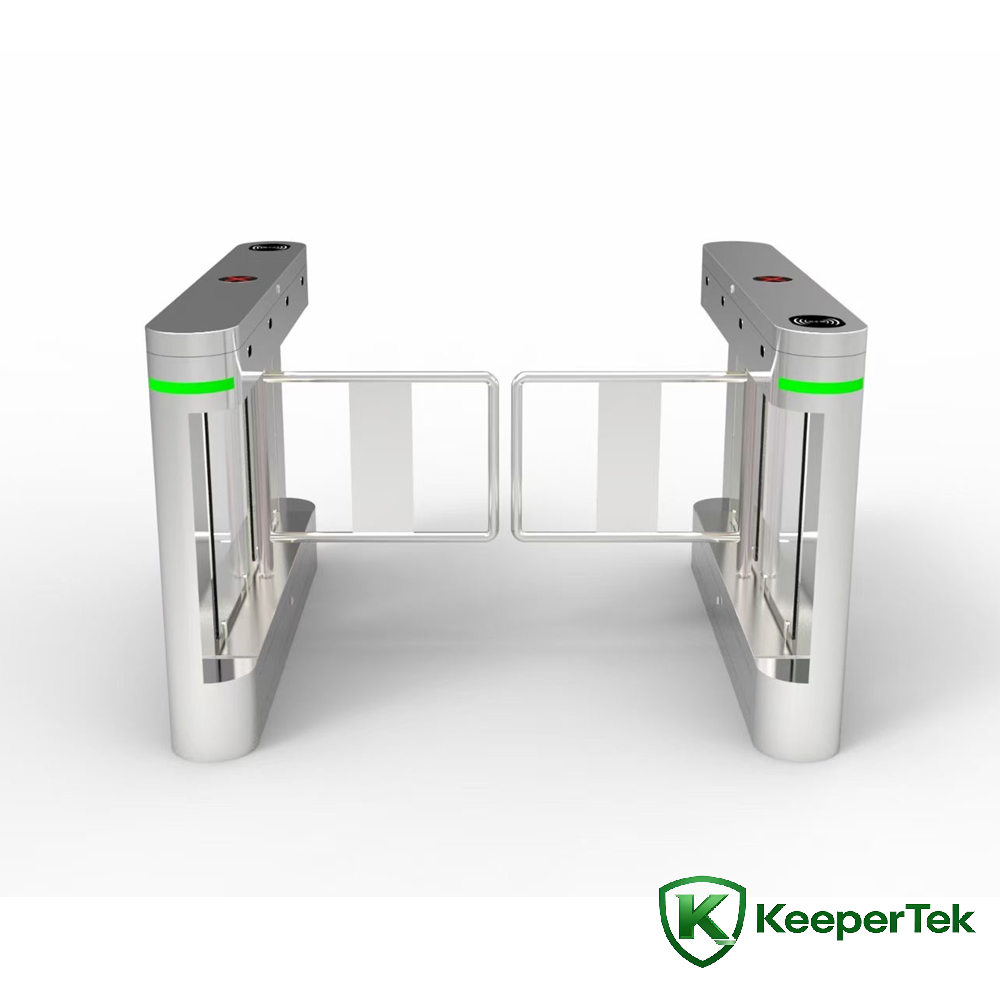

Notched Compact Swing Turnstile KT-JSDB18
Technical Parameters
Turnstile Composition: Cabinet, movement, control board and power supply
Turnstile Operation Direction: One-way / Two-way
Movement Drive Mode: DC brushless motor
Gate Opening Time: 0.5s
Power Input: AC220V±10%, 50Hz±4%, automatically converted to the turnstile's operating voltages of DC24V and DC12V
Input Interface: Dry contact signal, 12V level signal or 12V pulse signal with a pulse width ≥100ms
Communication Interface: RS485 (max distance ≤1200m), TCP/IP (optional)
Baffle Material: Acrylic or stainless steel
Infrared Sensors: 4 pairs as standard (expandable)
Operating Temperature: -10℃～60℃, relative humidity 5%~95% (no condensation)
External Accessory Compatibility: IC card reader, ID card reader, code scanning module, face recognition module, fingerprint module. (Customization required for external accessories)
Working Environment: Indoor & outdoor
Service Life: Over 3 million continuous opening and closing cycles
Cabinet Dimensions: 1200×200×980 mm
