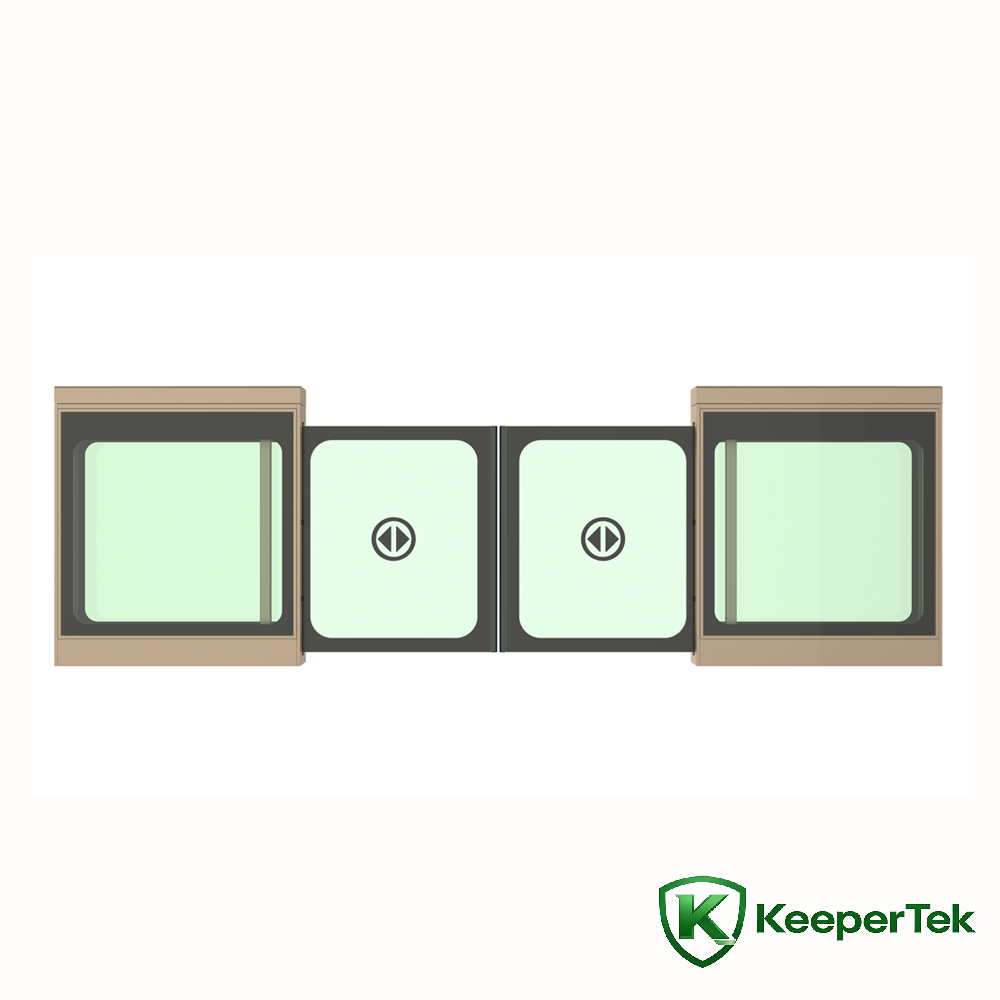

Screen Door KT-JSDP01
Technical Parameters
Working Voltage: 220V+10%/50Hz
Input Voltage: DC24V
Operating Ambient Temperature: -30℃-70℃
Operating Ambient Humidity: 30%-50% (no condensation)
Operating Ambient Atmospheric Pressure: 700hpa-1060hpa
Motor: Brushless Motor
Switching Speed: 2.5-5 seconds (adjustable)
Door Opening Holding Time: 1-60 seconds
Input Current: 6A
Rated Power: 150W; Static Power: 10W
Switching Times: More than 3 million times
Material: 304 Stainless Steel
Material Thickness: Overall Thickness: 1.2mm; Side Tempered Glass: 8MM
Channel Width: 700mm-1200mm
External Dimensions: 865×195×1265mm
