Reinforced Hydraulic Rising Bollard KT‑DX01
Technical Parameters
Column Diameter: 219 mm
Column Height: 600 mm
Column Thickness: 6 mm
Lifting Speed: 2S~4S
Guide Pillars: 4 pcs
Waterproof Rating: IP68
Column Material: 304 Stainless Steel
Operating Temperature: -35°C ~ 75°C
Voltage / Power: 220V / 350W
Control Mode: Control Box / Wireless Remote Control
Warning Indicator: Ultra-bright LED Light Strip
Flange Specification: Diameter 395 mm x Thickness 10 mm
Emergency Function: Equipped with EPS Emergency Power Supply & One-key Lowering
Expansion Function: License Plate Recognition / Fire Alarm / Access Control System Linkage

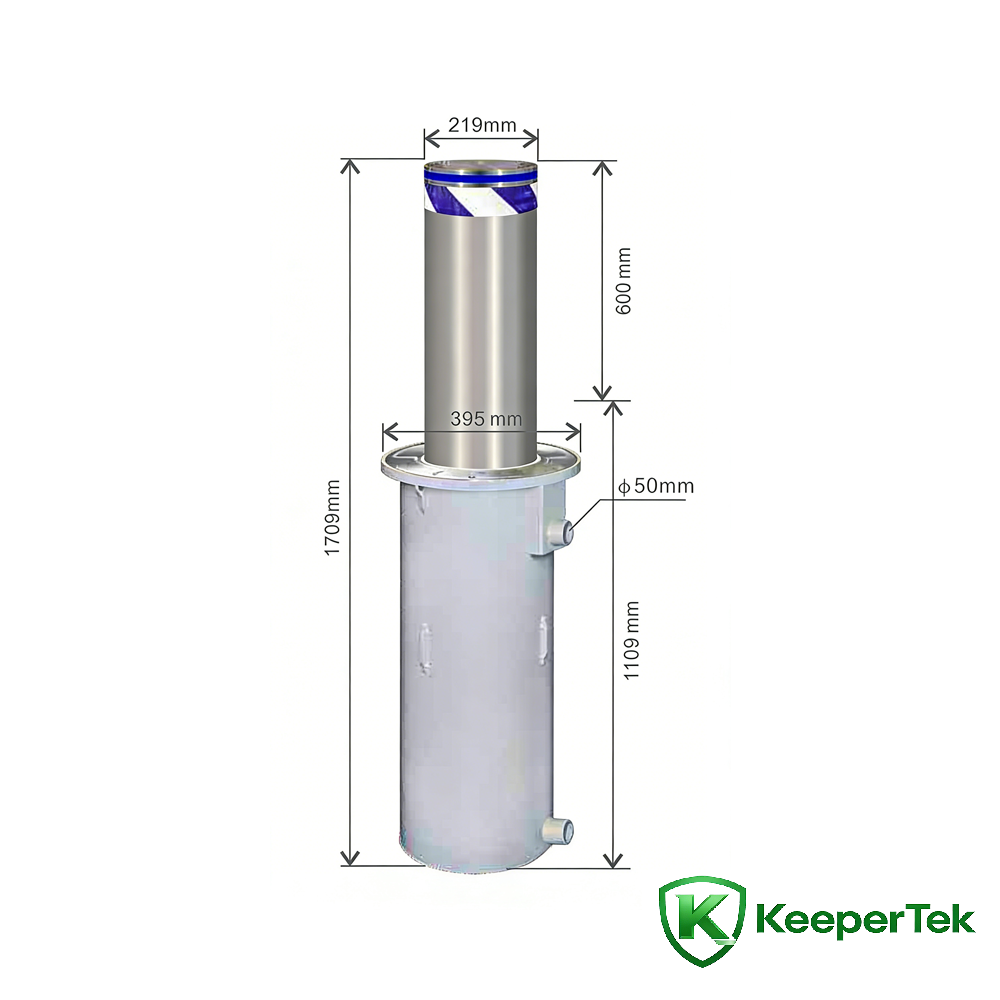

Embedded Specification: L 395 mm x W 395 mm x D 1109 mm
Features
Can operate normally after being run over by a 100-ton vehicle.
Waterproof rating IP68; works normally even when submerged in water.
Sturdy and durable structure; outlet and drain use 4 mm thick carbon steel, with 4 welding strips on the outer barrel.
Equipped with 5 cm high-visibility reflective film with reflectivity over 90%.
Optional ultra-bright LED warning light strip for enhanced nighttime visibility.
Panel flange with anti-slip texture; flange thickness optional: 10 mm / 6 mm.
Top flange thickness: 10 mm / 6 mm. Non-standard customization is available for diameter, thickness, height, appearance, lifting speed, etc.
Can be linked with license plate recognition, barrier gate, access control, infrared, radar, loop detector, traffic light/tidal lane, fire alarm system, etc.
Supports cloud platform management and mobile APP remote control.
Configuration Options
Height: 400 mm, 800 mm, 1000 mm, 1200 mm, 1500 mm
Thickness: 8 mm, 10 mm, 12 mm, 16 mm, 20 mm
Diameter: 168 mm, 273 mm, 325 mm, others
