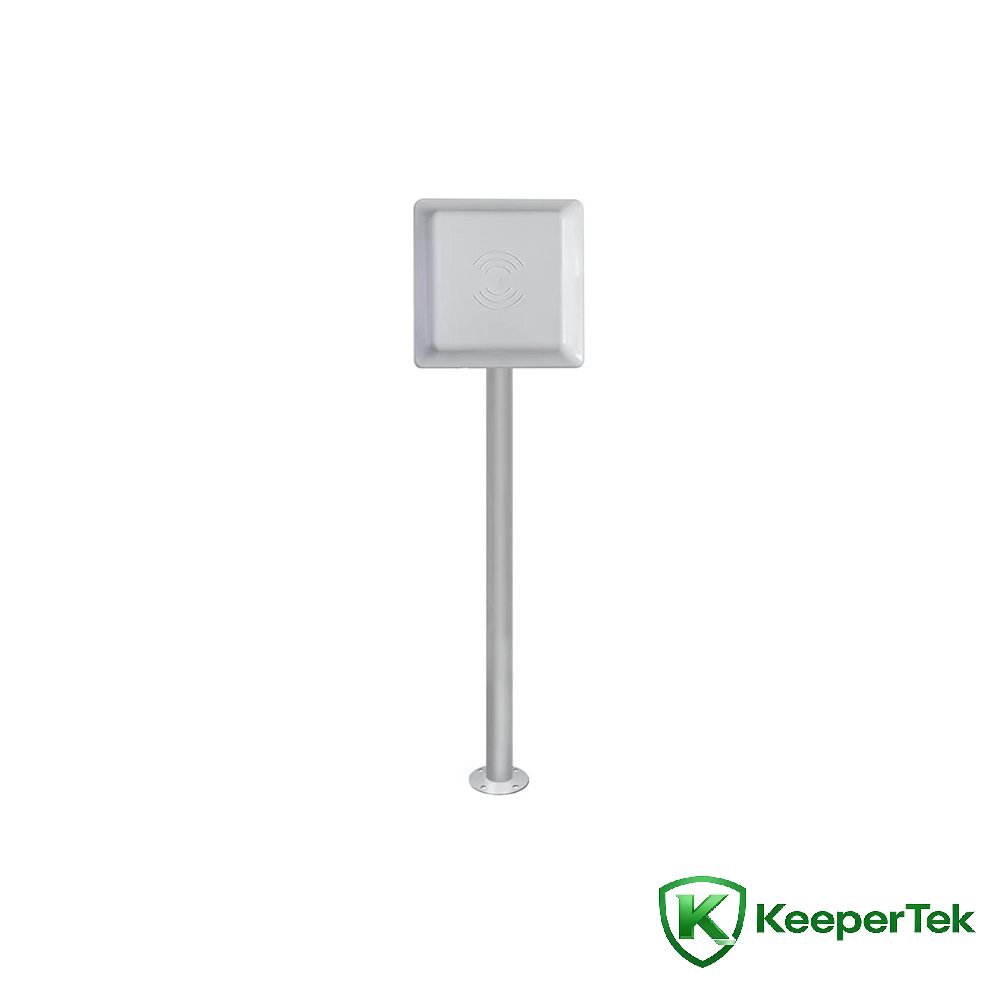

UHF RFID Reader Head for Two-Wheeled Vehicles KT-ZYSB37
Technical Specifications
Card Reader - Tag Protocol: ISO18000-6B, EPC Class1 Gen2 (ISO18000-6C)
Antenna Interface: Integrated omnidirectional antenna, horizontal polarization
RF Frequency Band: UHF; supports China (920–925MHz), optional for Americas (902–928MHz) / Europe (865–868MHz) / other national bands
RF Mode: Fixed frequency mode / broadband frequency hopping
Reading Range: 2-3 meters, depending on environment and electronic tags
RF Output: Below 32dBm, compliant with radio regulations
Supported Interfaces: MQTT, RS485, Wiegand
TCP/IP Communication: 1 channel
RS485 Communication: 1 channel
Wiegand Communication: 1 channel, input/output configurable via jumper
Gate Opening Signal: 2 channels
IO Input: 1 channel
Supported Vehicles: Electric bicycles, motorcycles, bicycles, two-wheeled non-motor vehicles, etc.
Display:None
Voice Announcement: None
Operating Voltage: 12V DC
Operating Current: 500mA
Operating Temperature: -30～70℃
Operating Humidity: 15～95%
Reader Head Dimensions: 230×230×45mm
