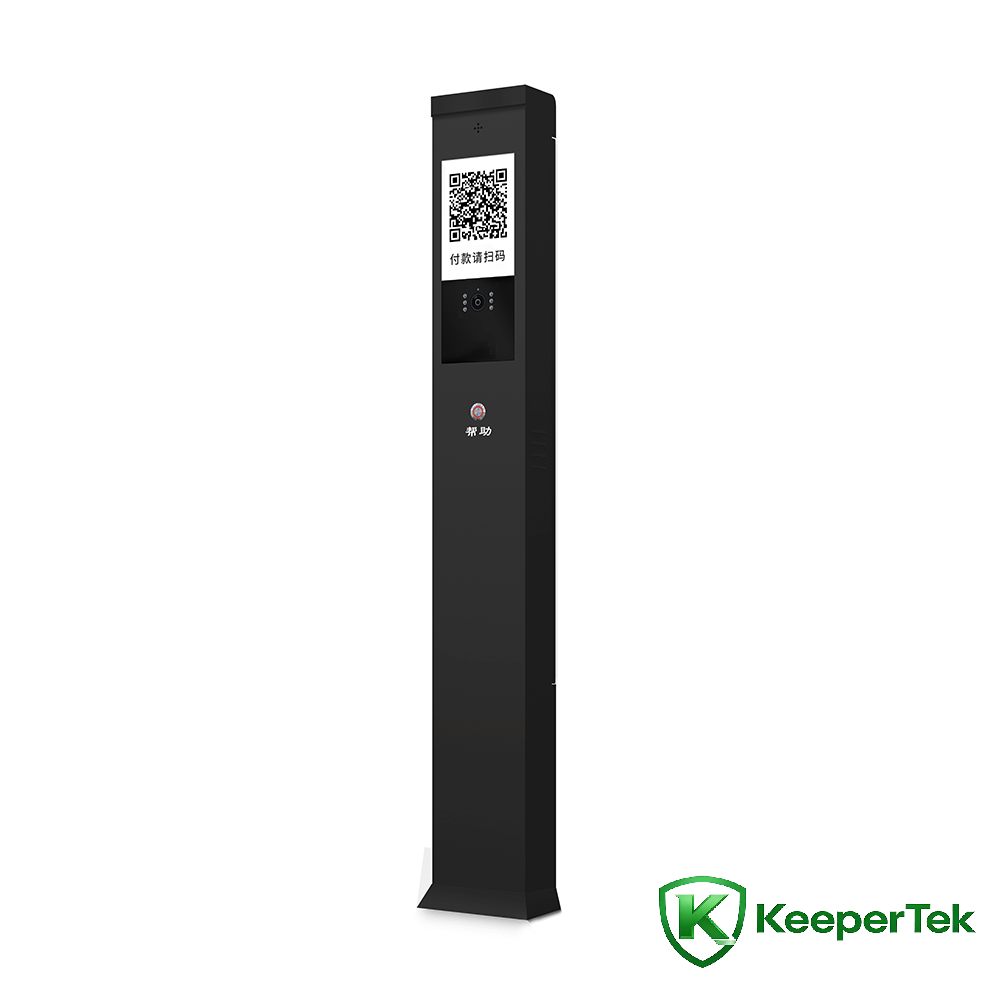

Video Screen Unattended IP Intercom Column KT-DJ003
Technical Parameters
Processor: High-performance embedded SOC processor
Operating System: Embedded LINUX operating system
Sensor: 2.0MP CMOS sensor
Video compression: H.264 / 30FPS
Audio input: Built-in high-sensitivity omnidirectional microphone
Video call: Supported
Audio output: Built-in speaker + 1× LINE OUT
Compression standards: G.711, G.713, GSM, DAC
Compression bit rate: 64KBPS / 8KBPS
Sound quality: Professional echo cancellation and noise suppression
Ethernet: 10M/100M adaptive
Network protocols: TCP/IP, DNP
Network port: 10/100M adaptive Ethernet port
Alarm interface: 3× switch input, 1× switch output
Power supply: 12V 1A
Power consumption: ≤10W
Material: Sheet metal with baking finish
Color: Gold, black
Operating temperature: -30°C ~ 70°C
Dimensions: 1250mm × 150mm × 90mm
Base dimensions: 230mm × 170mm
Screw mounting holes: 175mm × 115mm
Functions & Features
One-key alarm / help request: Simple one-key call operation
HD video intercom: 2.0MP high-definition pixels, allowing the duty room to view live video for easier handling
Full-duplex voice communication: Two-way video intercom, clear without echo
High-sensitivity microphone: Sound pickup distance up to 2 meters
High-quality speaker: 10W high-volume speaker, suitable for noisy environments
Sheet metal material, sturdy and durable
IP network architecture, supporting cross-network segment and cross-routing
Broadcast announcement: The host in the duty room can actively broadcast to the column extension
Anti-misoperation: Secondary confirmation to prevent accidental pressing
Remote switch control: The management host can remotely control door opening and closing
