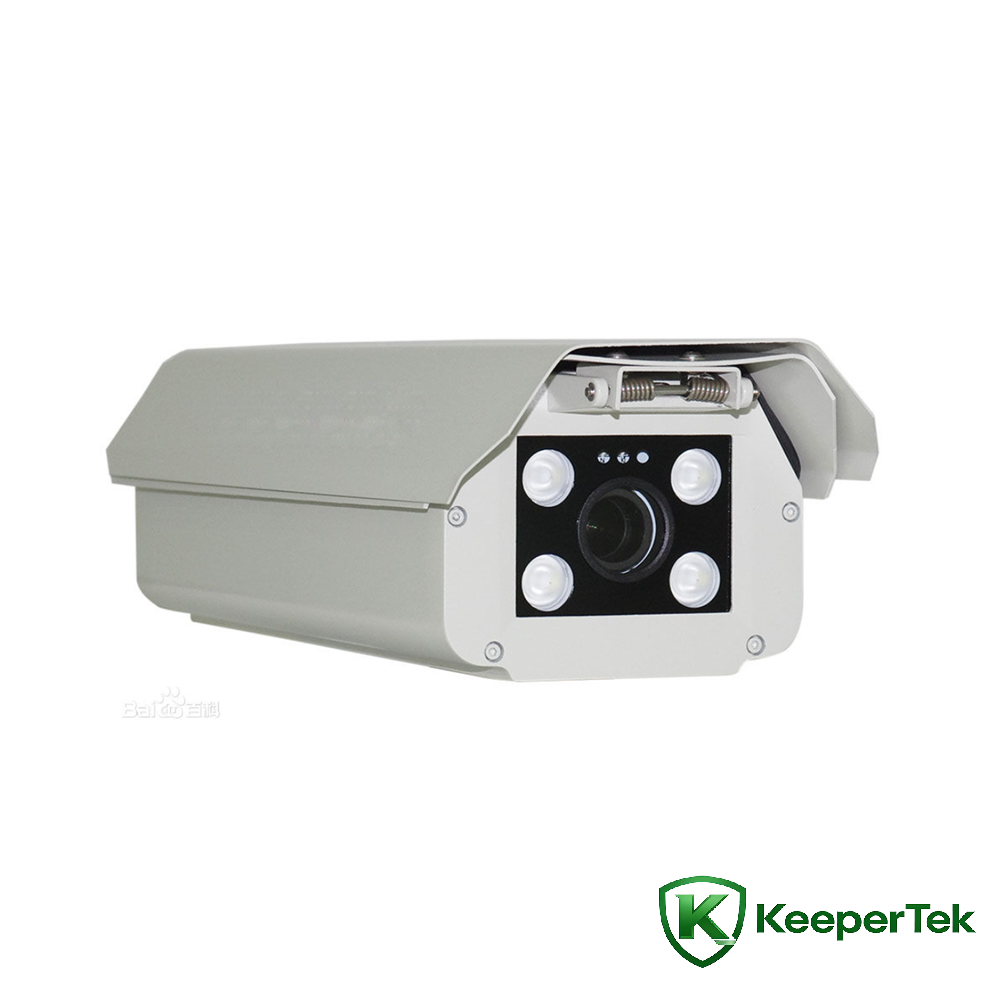

License Plate Recognition Camera KT-LPR001
Technical Parameters
Capture Rate: ≥99.9%
Recognition Rate: ≥99.8%
Adaptive Speed: 0–40 km/h
License Plate Recognition Features: License plate number, color, width, confidence level
License Plate Anti-Counterfeiting: Supports alarm for abnormal license plates (mobile phone photos, printed plates), accuracy ≥95%
Unlicensed Vehicle Trigger: Supports video trigger for unlicensed vehicles, accuracy 95%
Vehicle Type Recognition: Supports recognition of 7 vehicle types (car, SUV, MPV, small passenger vehicle, large passenger vehicle, small truck, large truck)
License Plate Whitelist: Supports precise and intelligent fuzzy matching for whitelist license plate rules
Intelligent Calibration: Supports intelligent calibration of license plate number, type and color via precise or wildcard matching
Basic Configuration: Intelligent optimized dimming algorithm; brightness, contrast, saturation, sharpness, image flip, exposure time, etc. can be set individually
Video Compression Standard: H.264/H.265
Video Resolution: 640360, 704576, 1280720, 19201080, 2960*1664
Compressed Output Bit Rate: 512Kbps~5000Kbps
Frame Rate: 1~25 fps, default 25 fps
Communication Protocol: SDK, ONVIF, HTTP, MQTT, RTSP, TCP/IP, UDP, RS485, NTP
FTP Image Upload: Supports uploading captured images to server via FTP
VPN Virtual Private Network: Supports building virtual private network via OpenVPN
HTTP Push: Supported, upload recognition results and offline retransmission
MQTT Push: Supported, upload recognition results and offline retransmission
Dynamic Domain Name: Supports docking with 3322 dynamic domain name service
UPnP Port Mapping: Supported, automatic mapping of HTTP/RTSP communication ports
Offline Networking: Automatic networking between cameras without host computer or server
Parking Lot Management: Supports creation of multiple parking lots and scenario-based management of multiple cameras
Whitelist: Supports vehicle hierarchical management with matching policies
Linkage Management: Up to 3 auxiliary cameras (license plate cameras and lane monitoring cameras) can be added to one main device
Management Protocol: PC/mobile management, PC management tool, SDK development kit, HTTP push
Cloud Management: Remote management of single camera, centralized management of multiple cameras via account, supports cloud SDK for development and management platform
Sensor: 5MP high-performance CIS
Resolution: 2960(H) × 1664(V)
Low Illumination: 0.1LUX color (with white light supplement)
Electronic Shutter: 0–1ms or customizable
Lens: Standard 6mm fixed focal lens
Interface: M12
Image Settings: Brightness, contrast, saturation, image flip, exposure time, etc.
Noise Reduction: Supports 2D/3D noise reduction
Wide Dynamic Range: Supported
Network Interface: 1×10/100Mbps adaptive RJ45 port
IO Output: 2 channels
IO Input: 2 channels
RS485: 1 channel
TF Card Slot: 1×TF card slot, supports up to 256GB
Reset Button: 1×Reset button
System Indicator: Blinking indicates normal operation; solid on or off indicates booting or abnormal status
Operating Temperature: -30℃ ~ 70℃
Electrostatic Discharge: Contact 6KV, Air 8KV
Surge Protection: 10/70μs common mode 4KV, differential mode 2KV; 8/20μs common mode 2KV, differential mode 2KV
Vibration Resistance: Complies with national standards
Power Supply: 12V DC
Power Consumption: ≤3W
Protection: IP65 for the whole device; module not waterproof
Dimensions:Whole device: 440mm (L) × 144mm (W) × 103mm (H),Module: 440mm (L) × 144mm (W) × 103mm (H)
