Outdoor Wired Parking Guidance Screen (Single Direction) KT‑WB28
Technical Parameters
Material: Galvanized steel with plastic spraying + white PC + organic glass panel
Light source: Red/green high-brightness LED
Protection level: IP65
Operating voltage: AC 110～240V
Operating temperature: -30℃ ~ +75℃
Ambient humidity: ≤90%RH (non-condensing)
Power consumption: ≤50W (single direction)
Communication: RS485
Communication distance: ≤1000m

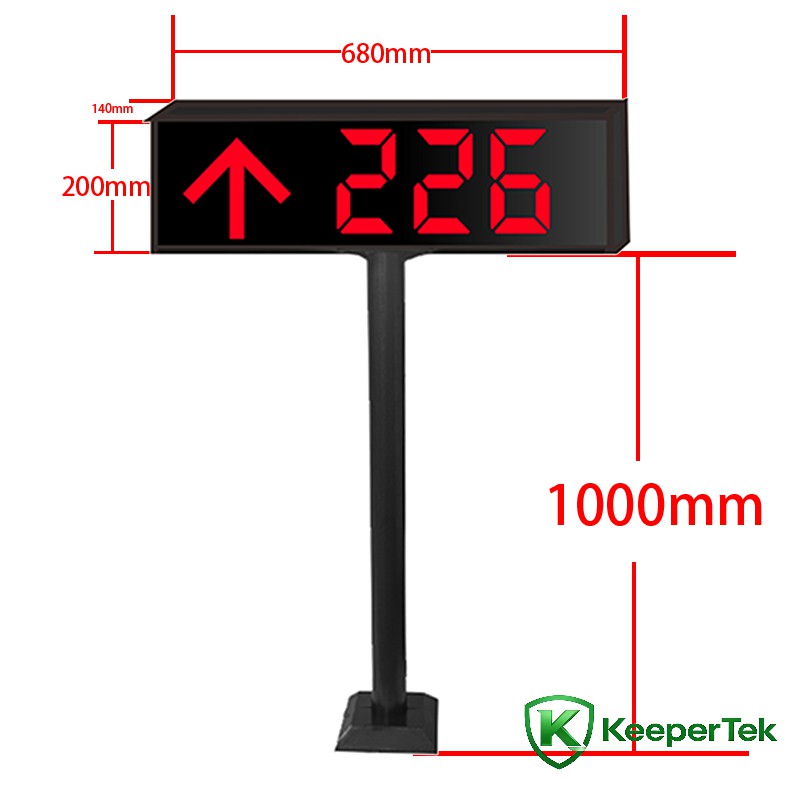

Dimensions: Screen 680*200*140mm, pole height 1000mm (customizable)
Features
The outdoor parking guidance screen can be set according to the zones of the parking lot. It displays real-time available parking spaces in digits, arrows and characters, guiding drivers to vacant areas quickly and distributing traffic efficiently to ensure smooth flow and full utilization of parking spaces.
P10 module + cold-rolled steel painted shell, simple and elegant appearance.
Waterproof and dustproof design with UV-resistant paint, not easy to fade.
Equipped with short-circuit, over-voltage, over-current and overload protection.
Supports 8 directional indications for various intersections.
Clear red indication, high brightness, long visible distance and wide viewing angle.
Reduces unnecessary cruising, relieves congestion and optimizes parking environment.
Improves driving experience with clear indication and information display.
Integrates with intelligent parking guidance system for automated management and higher efficiency.
