Indoor Parking Guidance Screen (Three Directions) KT‑WB26
Technical Parameters
Material: Black aluminum alloy frame
Vacant space indicator: White LED luminous characters by screen printing
Light source: Red/green dual-color LED
Pixel pitch: 4.75 mm
Service life: ≥ 100,000 hours
Operating temperature: -30℃ ~ +75℃
Power supply voltage: AC220V±10%
Max power consumption: ≤20W (single direction)
Ambient humidity: 5% – 95% RH
Communication: RS485, Bluetooth (for debugging)
Communication distance: RS485 ≤ 300m, Bluetooth ≤ 8m
Pixel density: 44321 dots/㎡
Resolution: 80*32 = 2560 dots
Driving mode: Constant current

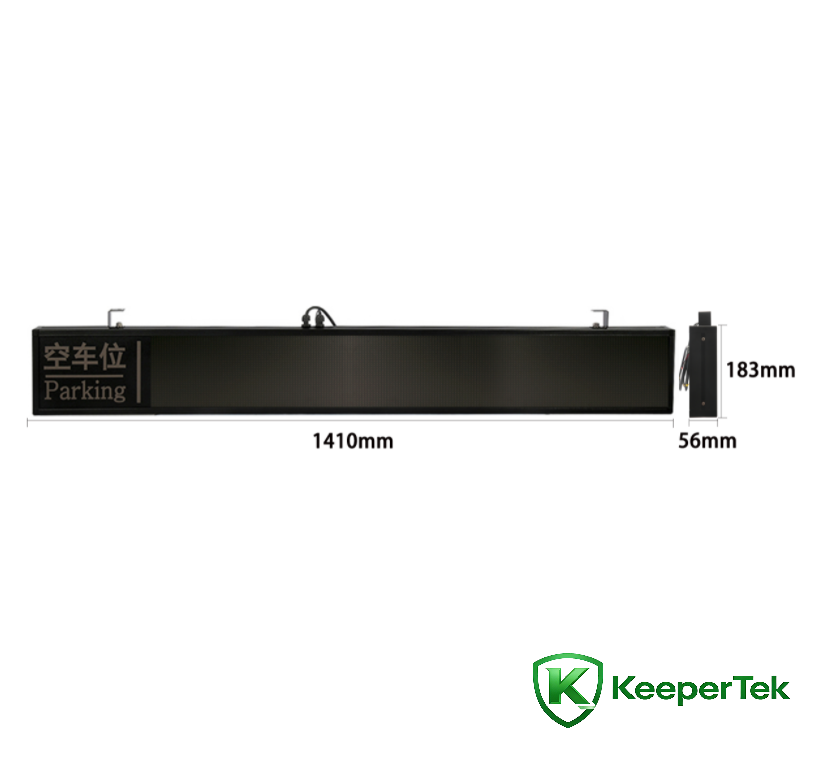

Dimensions:
Three directions: 1410*183*56mm
Features
The indoor guidance screen can be configured according to zones or floors in the parking lot. It displays real-time available parking spaces via digits, arrows and texts, guiding drivers to vacant areas quickly and distributing traffic efficiently to ensure smooth flow and full utilization of parking spaces.
Black aluminum alloy frame + brown endurance panel, elegant appearance.
Low power consumption with short-circuit, over-voltage, over-current and overload protection.
Supports multi-direction display with 8 arrow types for intersections.
High-brightness dual-color LEDs with long visible distance and wide viewing angle.
Convenient mobile APP debugging for address and arrows.
Red/green indication with customizable warning threshold.
Integrates with intelligent parking guidance system for automated management.
Improves parking experience and reduces unnecessary cruising and congestion.
