Outdoor Parking Guidance Large Screen (Double-layer Custom) KT-WB21
Technical Parameters
Material: Galvanized steel with plastic spraying + white PC + organic glass panel
Display: Supports 3-digit or 4-digit display
Light source: Red/green high-brightness LED
Protection level: IP65
Operating voltage: AC 110～240V
Operating temperature: -30℃ ~ +75℃
Ambient humidity: ≤90%RH (non-condensing)
Power consumption: ≤30W (double-layer)
Communication: RS485, Ethernet optional
Communication distance: ≤300m, TCP/IP ≤100m

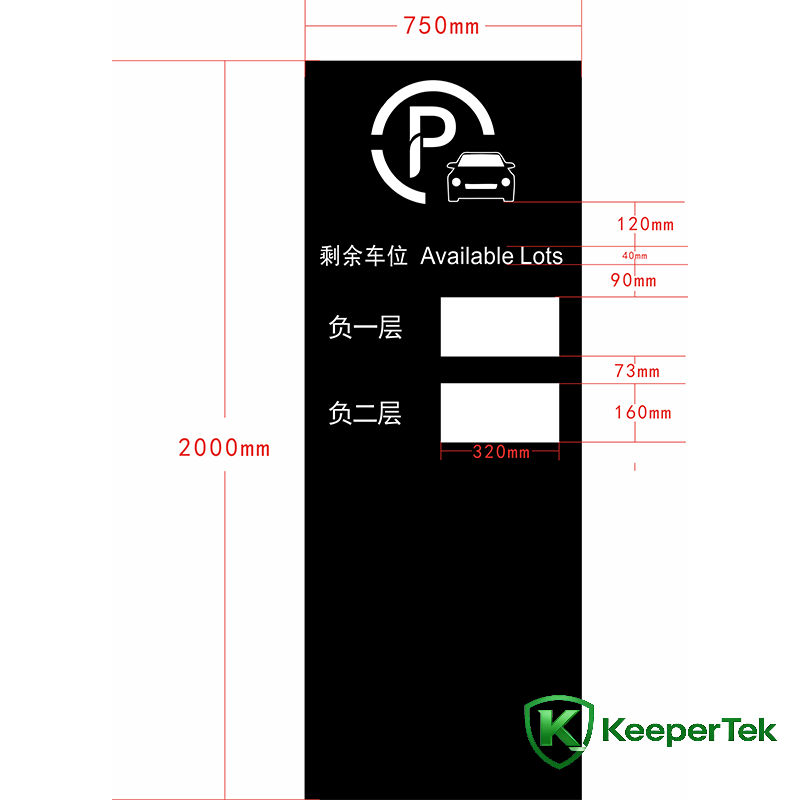

Dimensions: 2000*750*140mm
Features
The outdoor wired large guidance screen displays real-time remaining parking spaces in the parking lot clearly and accurately, allowing drivers to know the parking status at the entrance.
Acrylic panel + cold-rolled steel painted shell with simple and elegant appearance.
Text made by laser cutting with built-in light-transmitting plate and light box, good night vision effect.
Waterproof and dustproof shell with UV-resistant paint, not easy to fade.
Low power consumption design with short-circuit, over-voltage, over-current and overload protection.
Clear red/green dual-color indication, high brightness, long visible distance and wide viewing angle.
