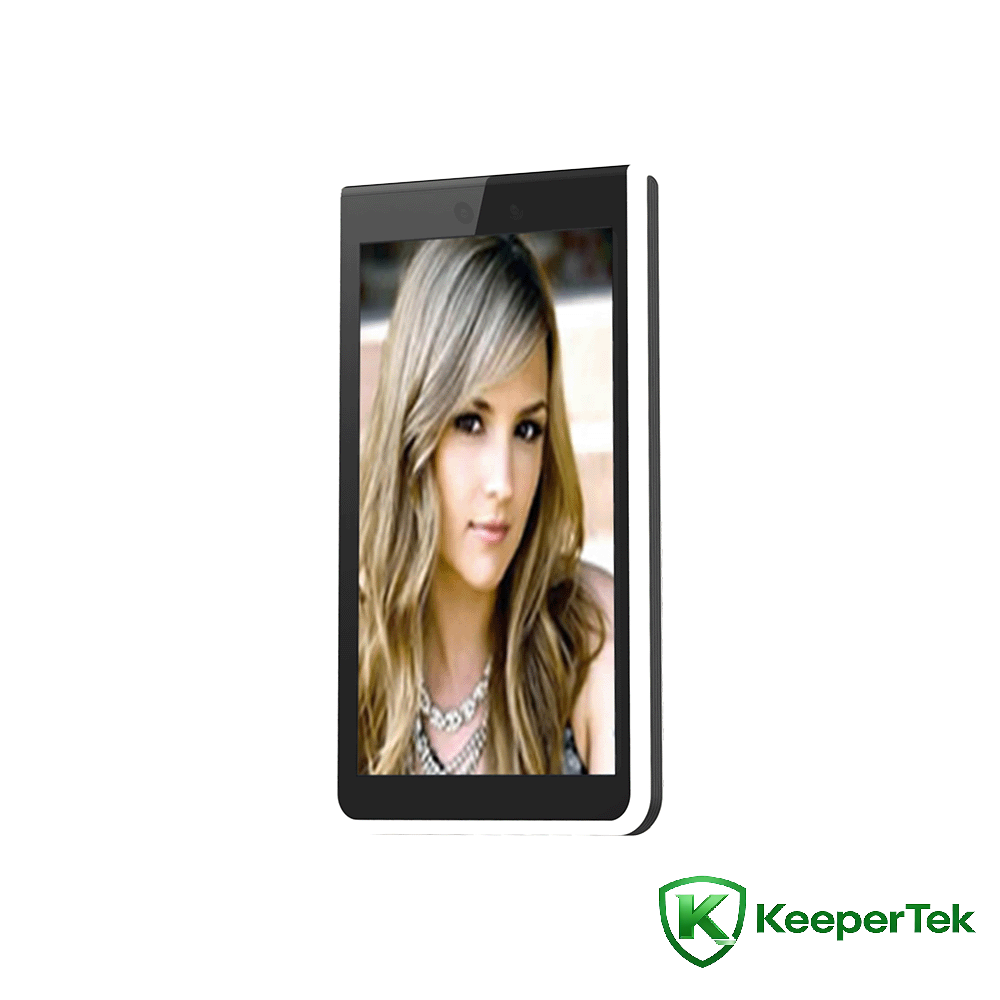

8-inch Facial Recognition & Card Reader All-in-One Machine (Ultra-thin) KT-FR011
Technical Parameters
Processor: Domestic Yizhi chip, dual-core processor + 1GB RAM + 16GB EMMC
Operating System: Linux OS
Storage: Supports TF card (optional)
Camera: Dual lens, 2.1MP effective pixels, 1920×1080
Imaging Sensor: 1/2.8" Progressive Scan CMOS
Lens: Focal length 4.5mm
WiFi Module: 2.4GHz (IEEE 802.11b/g/n); 5GHz (IEEE 802.11a/n/ac)
Supported Card Types: 13.56MHz cards including Mifare One (M1), S50, S70, NTAG2xx; 125KHz cards including TK, EM series (supports both IC and ID)
Speaker: Customizable voice prompts
Recognition Height: 1.2~2.3m, adjustable angle
Recognition Distance: 0.5~2.5m
Face Angle: ±30° horizontal, ±30° vertical
Recognition Time: < 0.3 second
Storage Capacity: 160,000 capture records
Face Capacity: 24,000 templates
Power Input: DC12V/2A
Network Interface: 1×RJ45 10/100Mbps adaptive Ethernet port, Gigabit port customizable
Wiegand Interface: 1×Wiegand output, 1×Wiegand input
Alarm Interface: 1×fire alarm input
Door Contact Interface: 1×door contact input
Door Opening Interface: 1×door opening input
Doorbell Interface: 1×doorbell output
Door Lock Interface: 1×door lock output
Communication Interface: 1×RS485
USB Interface: 1×USB port
Camera: Dual camera, all-glass lens, visible light & near-infrared, supports liveness detection
Effective Pixels: 2.1MP, 1920×1080
Minimum Illumination: Color 0.01Lux @F1.2 (ICR); B/W 0.001Lux @F1.2 (ICR)
Signal-to-Noise Ratio: ≥50dB (AGC OFF)
Wide Dynamic Range: 120dB, ISP algorithm for local face exposure
Video Coding: H.265 Main Profile / H.264 BP/MP/HP / MJPEG
Operating Temperature: -20℃ ~ +55℃
Operating Humidity: 0~90% RH, non-condensing
Device Power: 20W (MAX)
Salt Spray Resistance: Above Rp6 level
ESD Protection: Contact ±6KV, Air ±8KV
Power Supply: DC12V/2A
Protection Level: IP42
Screen: 8-inch HD IPS display
Dimensions: 215.22×130×18mm
Features
Supports dual-lens liveness detection
Supports tracking and exposure of moving human faces under strong backlight
Exclusive face recognition algorithm for accurate recognition, recognition time < 0.3 second
Built-in domestic CPU
Adopts Linux operating system for stable system performance
H.265 encoded video streams connect directly to NVR via ONVIF and GB28181 protocols
Supports local TF card storage: continuous image storage for 1 year, video for 1 month or longer (depends on TF card capacity)
Mean time between failures (MTBF) > 50,000 hours
Supports face database up to 24,000+ and 160,000 recognition records
Rich interface protocols, supports TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT on Windows/Linux platforms
Operating temperature: -20℃ ~ +55℃
Supports tamper alarm
Supports docking with voice and video cloud intercom
Supports front-end touchscreen management and configuration
Abundant hardware interfaces (I/O, WG26, WG34, RJ45, USB, door contact, doorbell, door open, alarm, RS485)
8-inch IPS full-view HD display with no ghosting and no delay
Automatic gain and automatic white balance for natural color reproduction
Built-in black-level sensor for video surveillance, more accurate low-light recognition
3D noise reduction and defogging for clearer low-light images
Supports bitstream and I-frame interval settings
Supports video area masking
Supports ROI encoding
Supports auto and manual white balance
Supports maximum exposure time setting
Supports mobile phone monitoring configuration
Supports 2D and 3D noise reduction
Supports recording schedule and upload mode settings
Supports video brightness, contrast, hue, saturation, gamma adjustment
Supports maximum auto exposure time setting
Supports face intelligent exposure and face enhancement
