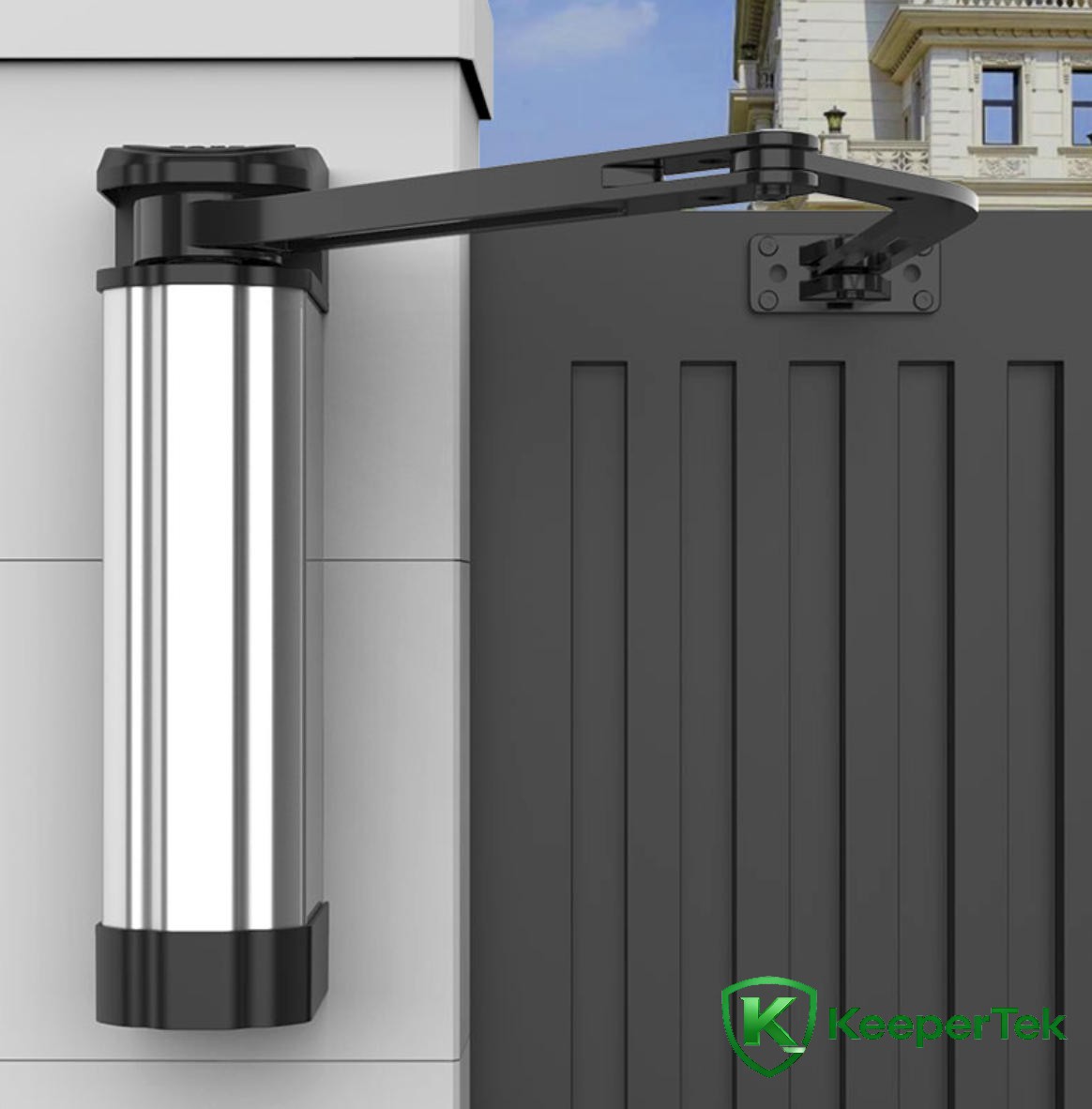

Side-Mounted Door Operator KT-EDO001
Technical Parameters
Drive Mode: Crank connecting rod drive
Supply Voltage: 220VAC±15% 50Hz
Motor Operating Voltage: 24VDC
Motor Power: 40W
Rated Torque: 24.6Nm
Angular Velocity: 69.7°/s
Maximum Opening Angle: ±90°
Maximum Door Width: 1.5m (single leaf)
Motor Thermal Protection: Class F 155℃
Operating Frequency: Continuous use below 70℃
Operating Ambient Temperature: -25℃ to 70℃

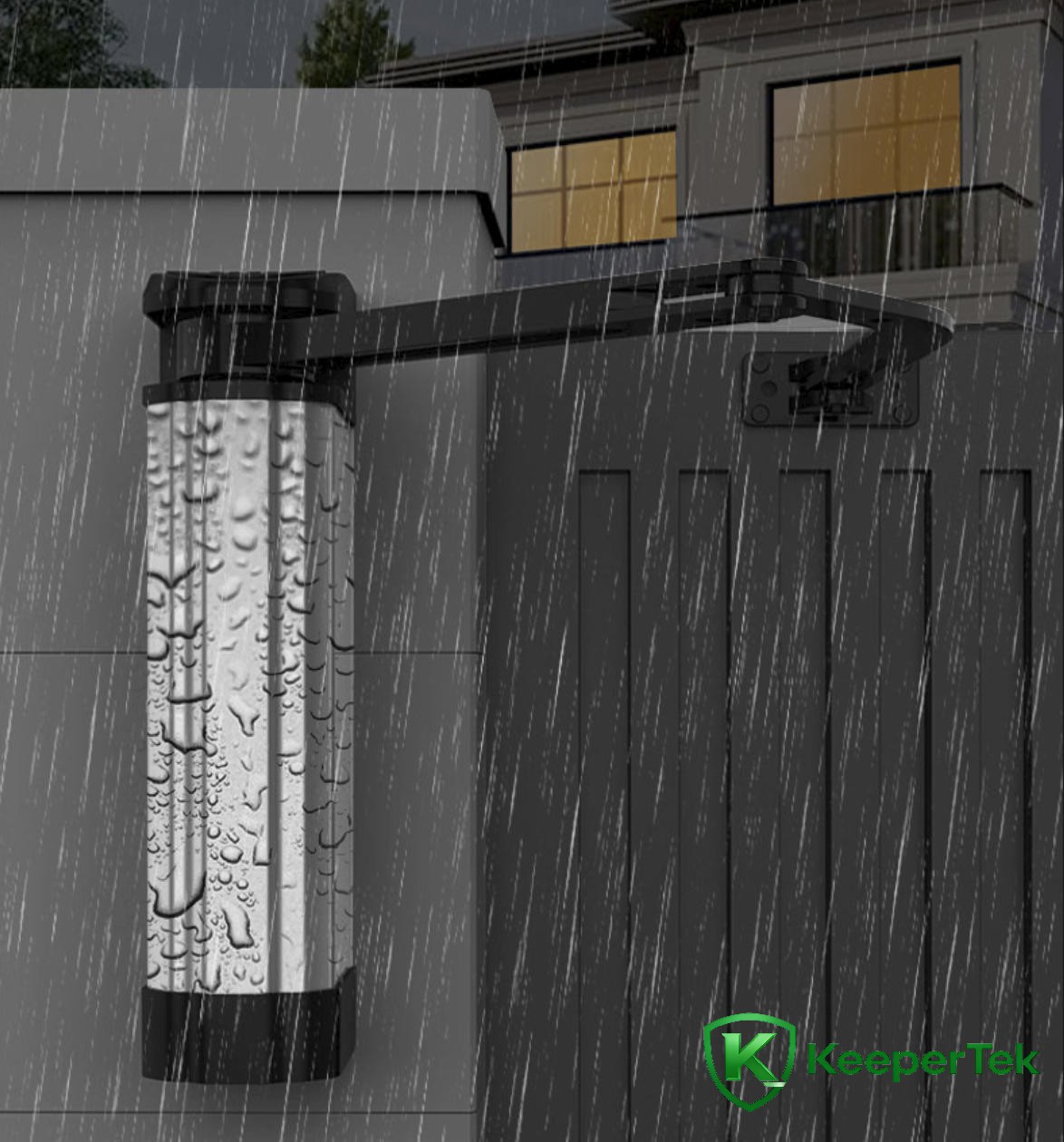

Application Environment: Indoor or sheltered outdoor use
Operating Noise: ≤60dB
Temperature Rise: ≤15℃
Package Weight: 6.4kg
Unit Dimensions (WHD): 89.6×355.7×105.7mm
Package Dimensions: 400×280×110mm
Mounting Base Dimensions: 350×85mm
Functions & Features
WIFI or 4G connectivity supported
Adjustable obstacle detection & rebound
Opening delay adjustment
Opening angle self-learning function
Delayed opening function
Remote door locking function

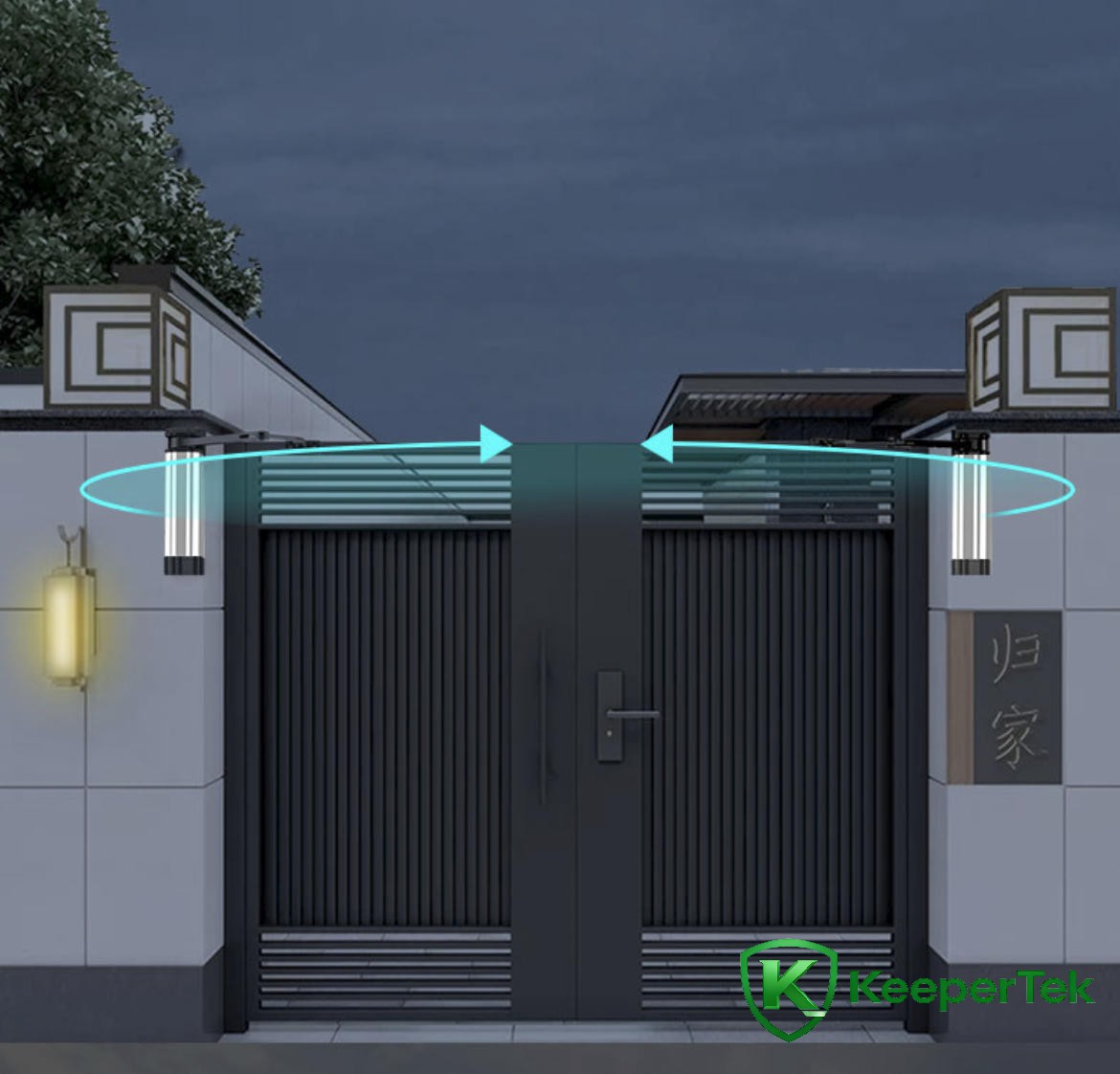

Dual door interlocking function
Master & slave door operation function
Opening & closing speed adjustable
Electric door lock compatible
Bluetooth adjustment supported
Secondary development supported
