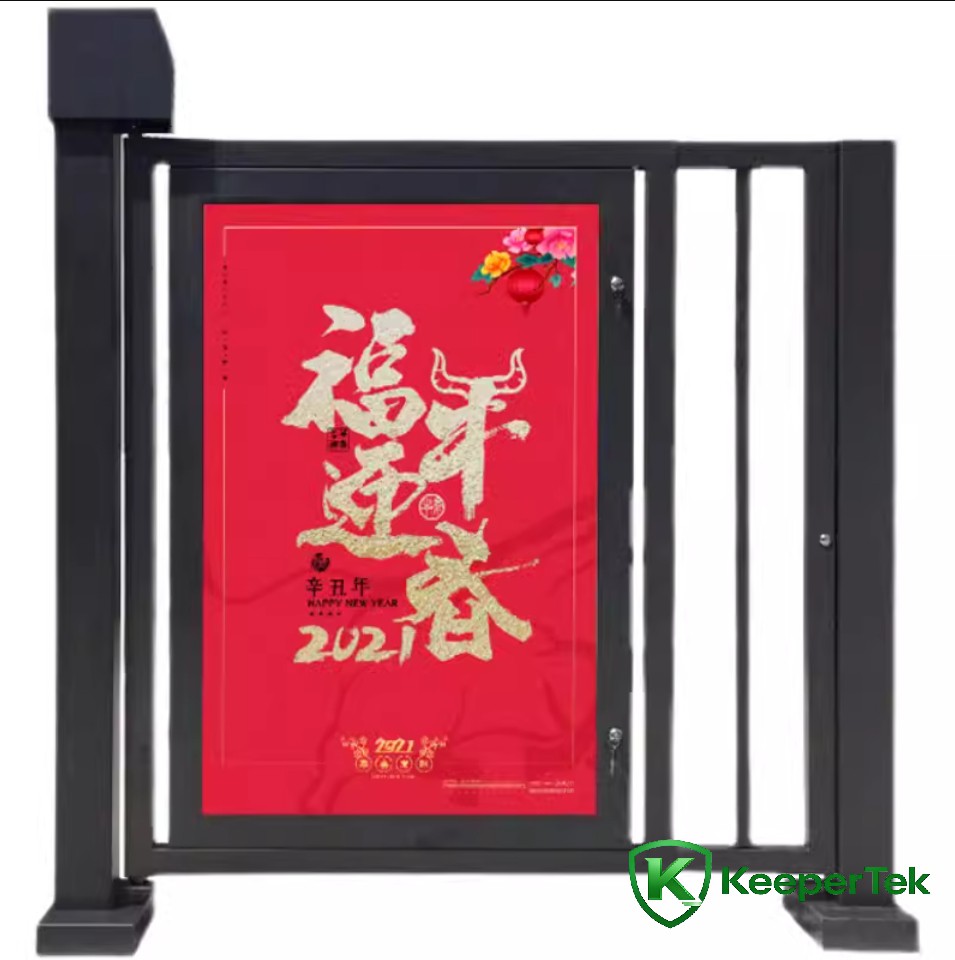

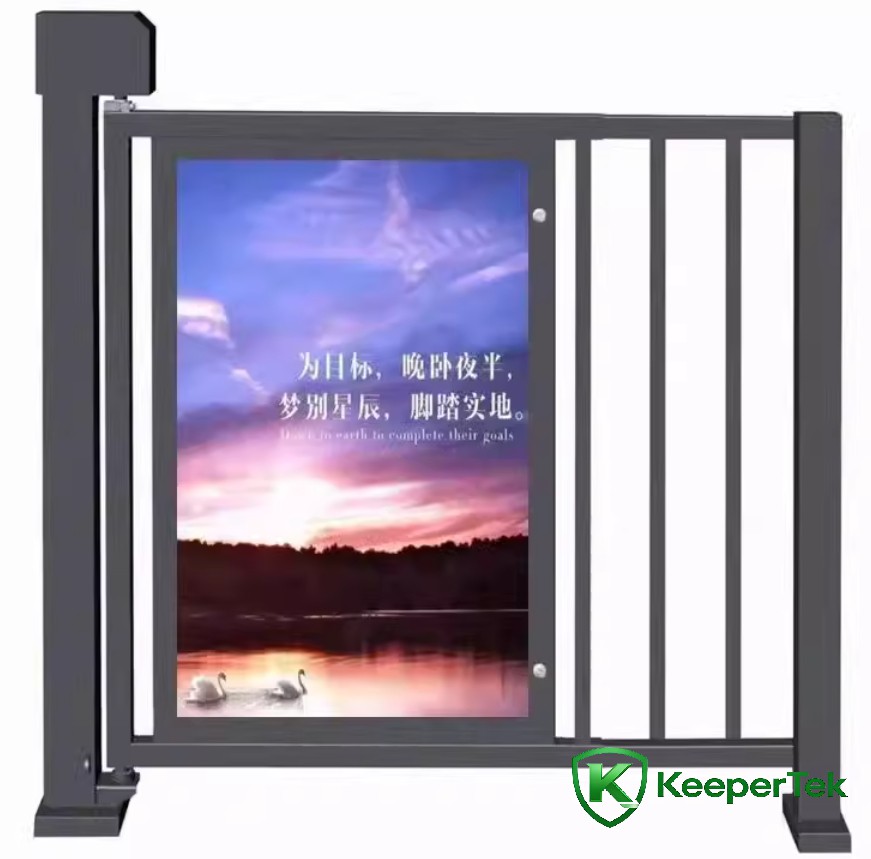

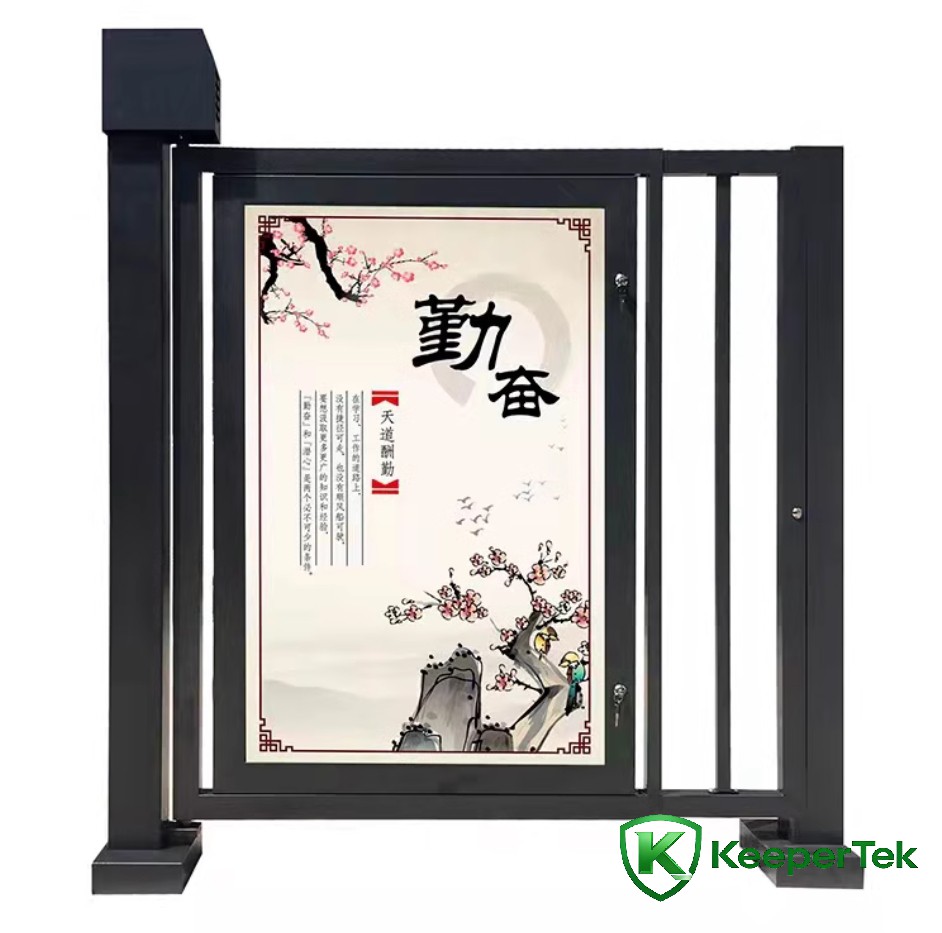

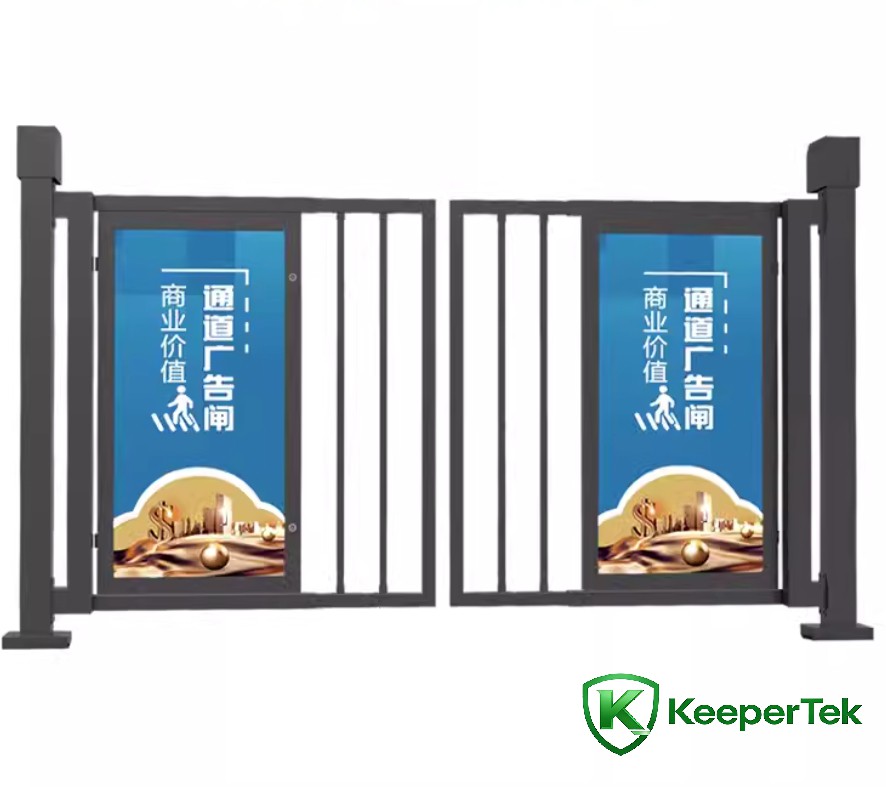

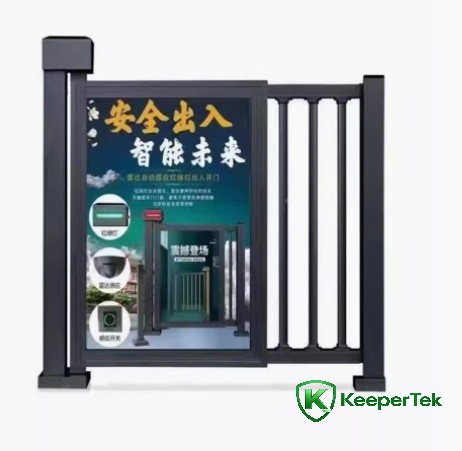

Electric Advertising Gate KT-EAG001
Technical Parameters
Opening angle: 90° (180° customizable)
Power: Static 10W, maximum working power 60W
Opening/closing speed: 1–9 levels adjustable (opening time 10–3s accordingly)
Door hold time: 1–99 seconds
Dimensions: Height 1740mm, width 1250–1900mm telescopic adjustable
Advertising: Light box advertising, non-advertising version optional
Noise: Below 50dB
Continuous operation: 5 million times trouble-free
Authorized opening: Card swipe, face recognition, fingerprint, etc.
Signal input: Relay signal, voltage signal (5–24V)
Motor overcurrent, overload, short circuit protection: Supported
Smart obstacle detection and push reverse protection: Supported
Precise adjustment of motor current, thrust and speed: Supported
Magnetic induction limit: Supported
Power supply: DC24V 6A
Operating temperature: -10℃～50℃
Operating humidity: 30%～50% (non-condensing)
Application: Pedestrian and non-motor vehicle passages in residential areas, parks and factories
