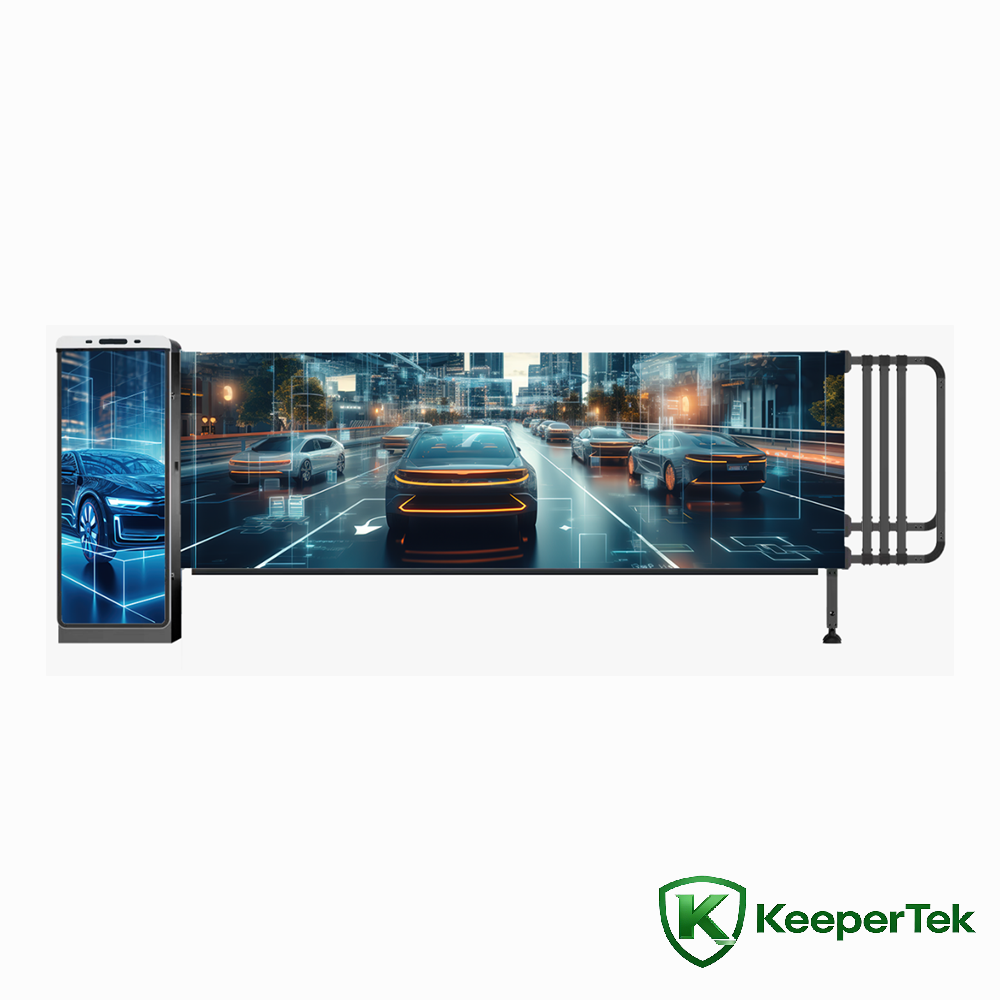

Large Capo Advertising Barrier Gate KT-ZYSB22
Technical Specifications
Input Voltage of Switching Power Supply: AC220V±10%, 50Hz
Input Voltage of Controller: DC24V±10%
Total Power Consumption: ≤200W
Case Material: High-strength cold-rolled steel plate
Movement Type: Brushless DC
Motor Power: 120W
Applicable Boom Length: 4.95m (including case)
Boom Type: Large Capo
Boom Panel Height: 700mm
Lifting & Lowering Speed: 1.5–6 seconds
Operating Noise: ≤65dB
Mean Time Between Failures (MTBF): ≥10,000 hours
Remote Control Distance: ≥30m (open area without interference)
Protection Grade: IP54
Operating Temperature: -25℃~70℃
Operating Humidity: ≤95% (non-condensing)
Case Color: Black / Silver
Dimensions: 1100×450×330mm
