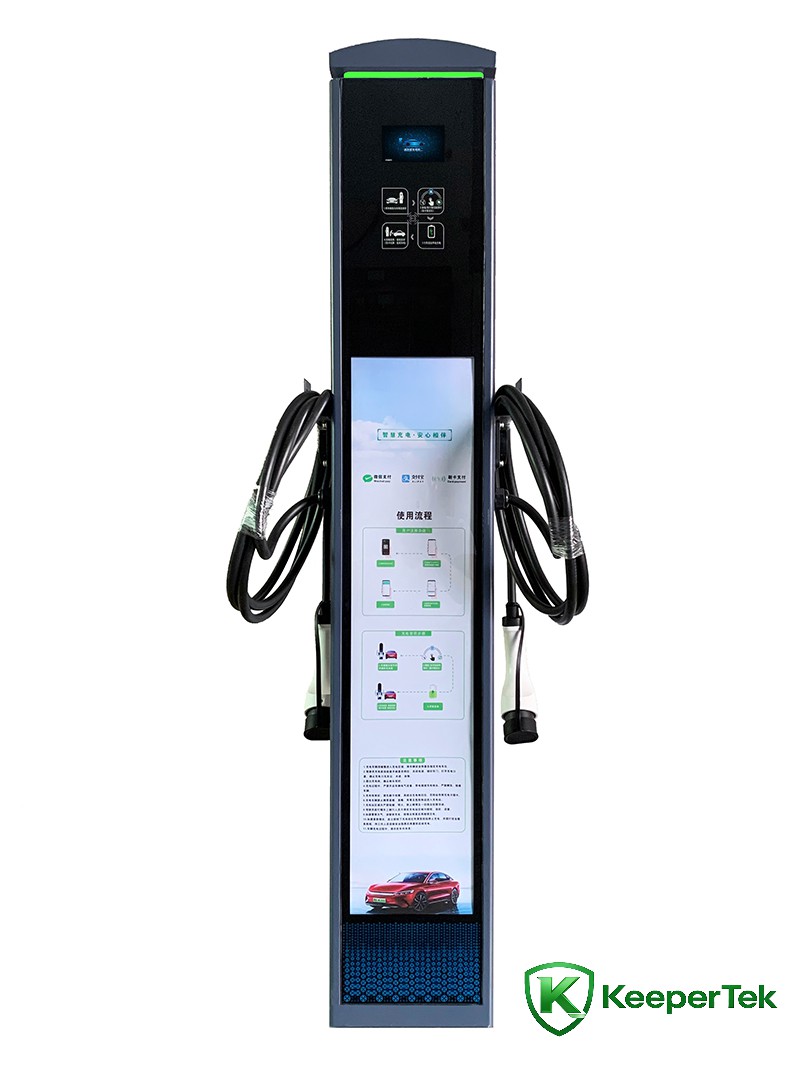

14KW Floor-mounted Dual-Gun AC Charging Station KT-HC09
Technical Parameters
Appearance Material: Sheet metal + tempered glass
Installation: Floor-mounted
Wiring Mode: Bottom inlet & bottom outlet
Charging Cable Length (m): 5m (customizable)
Input Voltage: AC220V ±15%
Input Frequency: 50±1Hz
Rated Power: 14KW
Output Voltage: AC220V±15%
Max Output Current: 32A2
Metering Accuracy: Class 1
Current Limit Protection Value: 1.1 times
HMI: LCD display, LED indicators
Operation Indication: Power, Charging, Alarm
Charging Mode: Auto stop when full / Fixed power / Fixed amount / Fixed time
*Payment Method: Card payment / QR code payment (customizable)
Metering & Billing: Time-of-use billing
Communication Interface: Ethernet / RS485 / 4G (optional)
*Data Openness: Support third-party software platform access (customizable)
*Expansion Support: Face recognition / License plate recognition / Parking lock / Parking radar (customizable)
Executive Standards: GB/T 20234, GB/T 18487, NB/T 33008, NB/T 33002
Management Features: Power-off memory, adjustable tariff, blacklist & whitelist, data communication, integrated one-card system
Safety Functions: Over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, emergency stop protection, leakage protection
Application Environment: Indoor / Outdoor
Operating Temperature: -20℃～+50℃
Relative Humidity: 5%～95% non-condensing
Protection Class: IP54
Cooling Mode: Natural cooling
Reliability (MTBF): ≥18000h
Optional Items: All items marked with * are customizable
Product Features
It supports metering, billing and operation platform access, with WeChat and Alipay QR code payment, allowing operators to receive payments anytime and anywhere. Widely used in residential community parking lots, urban public parking lots and dedicated charging stations to provide AC charging for electric vehicles. It also supports advertising functions to meet market demands.
Equipped with three status indicators: power, charging and fault
Functions include emergency stop connection confirmation detection, charging door detection, charging gun lock, etc.
Easy operation: start charging by card swiping or mobile phone QR code scanning
Charging functions: auto full charge / fixed power charge / fixed time charge / fixed amount charge
Multiple operation management modes: local settlement operation / platform operation
Payment methods: WeChat payment, Alipay payment
