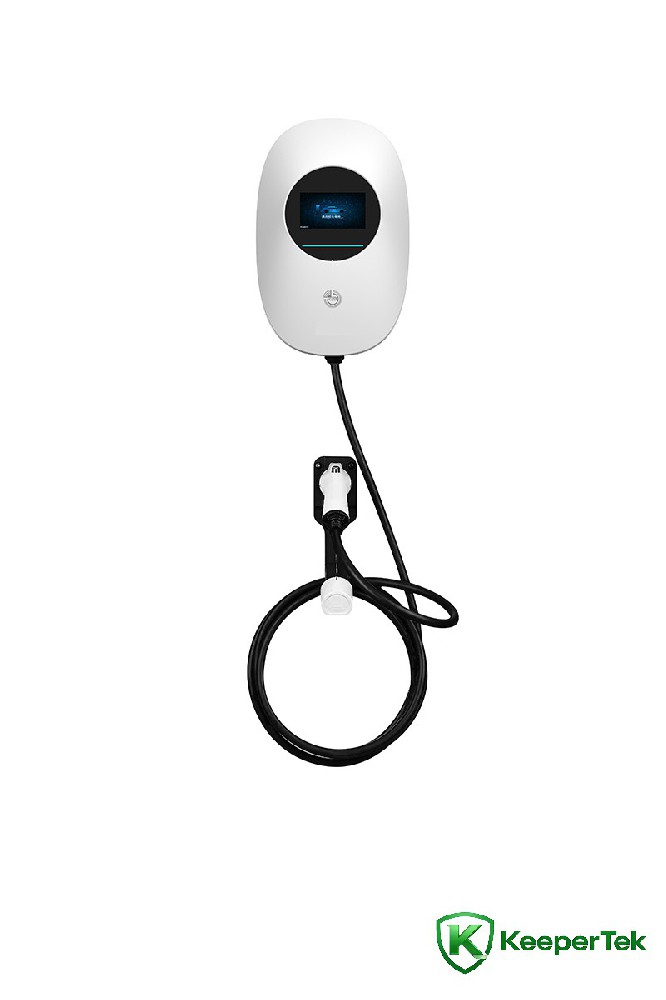

7KW European Standard / National Standard AC Electric Vehicle Charging Station KT-HC03
Technical Parameters
Appearance Material: ABS/PC plastic + acrylic
Installation: Wall-mounted / Column-mounted (with column)
Wiring Mode: Bottom inlet & bottom outlet
*Charging Cable Length (m): 5m (customizable)
Input Voltage: AC220V ±15% L+N+PE
Input Frequency: 50±1Hz
Rated Power: 7KW
Output Voltage: AC220V±15%
Max Output Current: 32A
Metering Accuracy: Class 1
Current Limit Protection Value: 1.1 times
HMI: 4.3-inch LCD display, LED indicators
Operation Indication: Power, Charging, Alarm
Charging Mode: Auto full charge / Fixed power / Fixed amount / Fixed time
*Payment Method: Card payment / QR code payment / Plug & charge / Voice control (optional)
Metering & Billing: Electricity billing (accuracy Class 1.0)
Communication Interface: Ethernet / Bluetooth / WIFI (optional)
*Data Openness: OCPP1.6
*Expansion Support: Face recognition / License plate recognition / Parking lock / Parking radar (customizable)
Executive Standards: GB/T20234.1-2015, GB/T20234.2-2015, NB/T 33008.2-2013, GB/T 29318-2012
Management Features: Adjustable tariff, data communication, integrated one-card system
Safety Functions: Over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, emergency stop protection, leakage protection
Application Environment: Indoor / Outdoor
Operating Temperature: -20℃～+50℃
Relative Humidity: 5%～95% non-condensing
Protection Class: IP54
Cooling Mode: Natural cooling
Reliability (MTBF): ≥18000h
Optional Items: All items marked with * are customizable
Product Features
Protection class: IP54, suitable for outdoor use.
HMI: 7-inch color touch screen, charging status indication, card reader.
Ultra-high power density and ultra-high reliability.
With insulation detection, connection detection, over-voltage, over-current protection, emergency stop and other functions.
Quickly connect to different operation and management platforms, supporting various charging payment methods.
Equipped with three status indicators: power, charging and alarm
Functions include emergency stop connection confirmation detection, charging door detection, charging gun lock, etc.
Easy operation: start charging by card swiping or mobile phone QR code scanning
Charging functions: auto full charge / fixed power charge / fixed time charge / fixed amount charge
Multiple operation management modes: local settlement operation / platform operation
