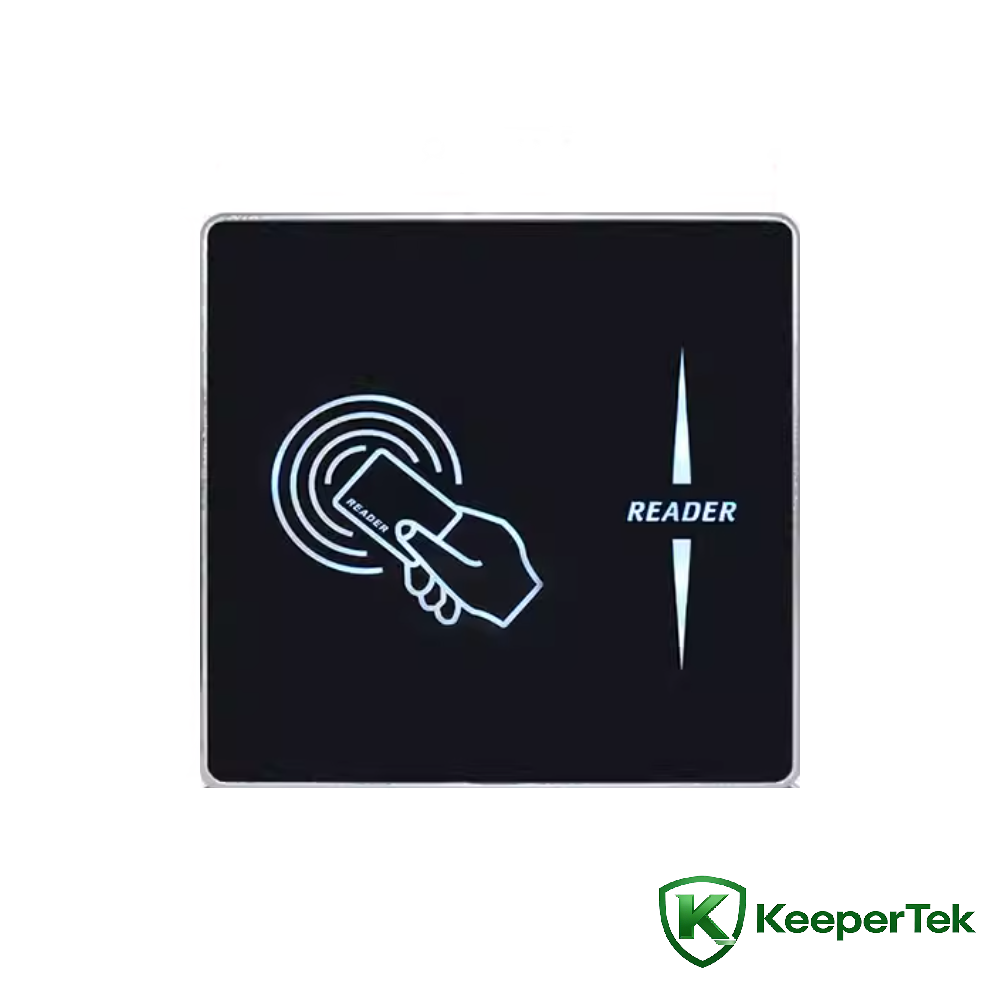

Access Control Card Reader KT-WG09
Technical Parameters
Housing Material: Metal frame with tempered glass, black resin glue can be poured inside
Product Color: Black
Reading Distance: 3~15CM
Reading Speed: <0.2 seconds
Card Type: IC card reader 125KHZ, contactless RFID ID card reader
Compatible with Access Controllers: WG26/34 access controllers
Card Reading Interval: <0.5 seconds
Communication Distance: WG≤100M, RS485≤1200M
Built-in Speaker: Buzzer, controllable LED and buzzer
Reverse connection protection, reserved wiring 20CM (extendable)
Output Format: WEIGAND26/WEIGAND34/RS485/RS232/ABA, etc.
Waterproof Rating: IP54
Operating Voltage: DC9~16V
Operating Current: ≤100MA
Operating Environment: -20°C~70°C
Product Size: 86×86×8MM
